CT220L-ALMETW (1997)
Toyota Avensis

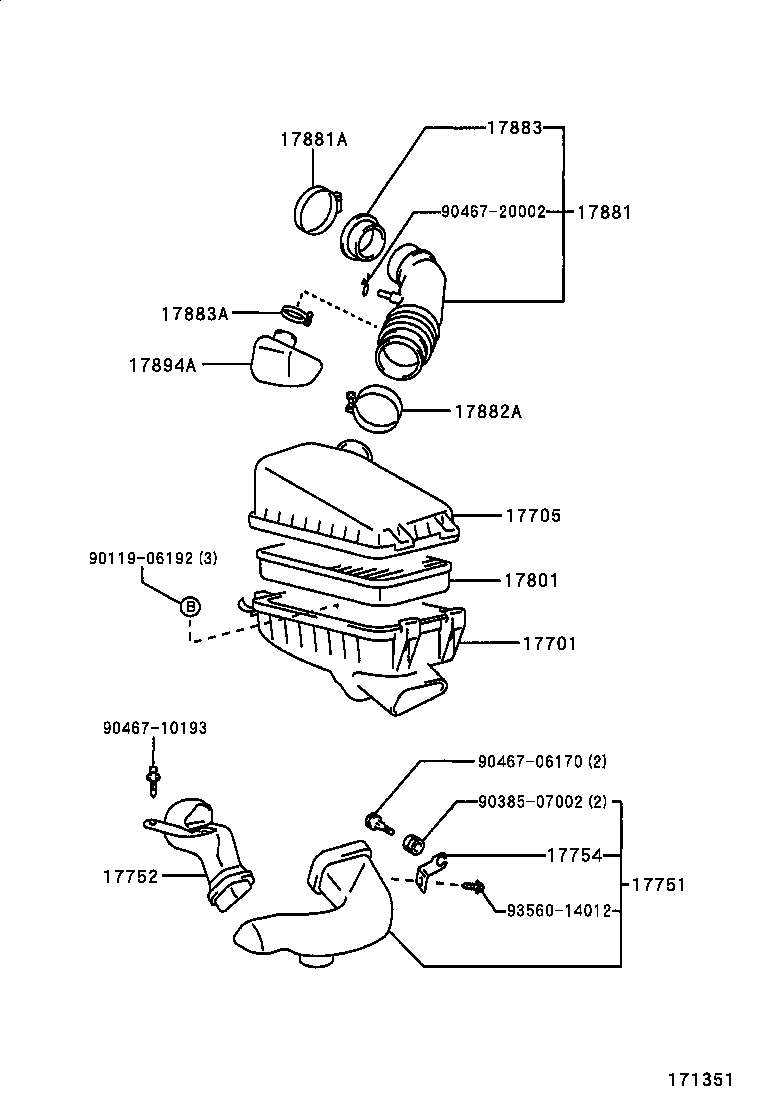

(9710-0007)2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0B020 |
2CT#..CT220 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0B020 |
2CT#..CT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0B010 |
2CTE..CT220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17751-64060 |
2CT..CT220 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-64030 |
2CT..CT220 |
1 | ||
| 17754 - STAY, AIR CLEANER INLET | ||||
| 17754-16010 |
2CT..CT220 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0B020 |
2CT#..CT220 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64290 |
2CT#..CT220 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
2CT#..CT220 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10730 |
2CT#..CT220 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-64050 |
2CT#..CT220 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10450 |
2CT#..CT220 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-64050 |
2CT#..CT220 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90385-07002 | ||||
| 90467-06170 | ||||
| 90467-10193 | ||||
| 90467-20002 | ||||
| 93560-14012 | ||||

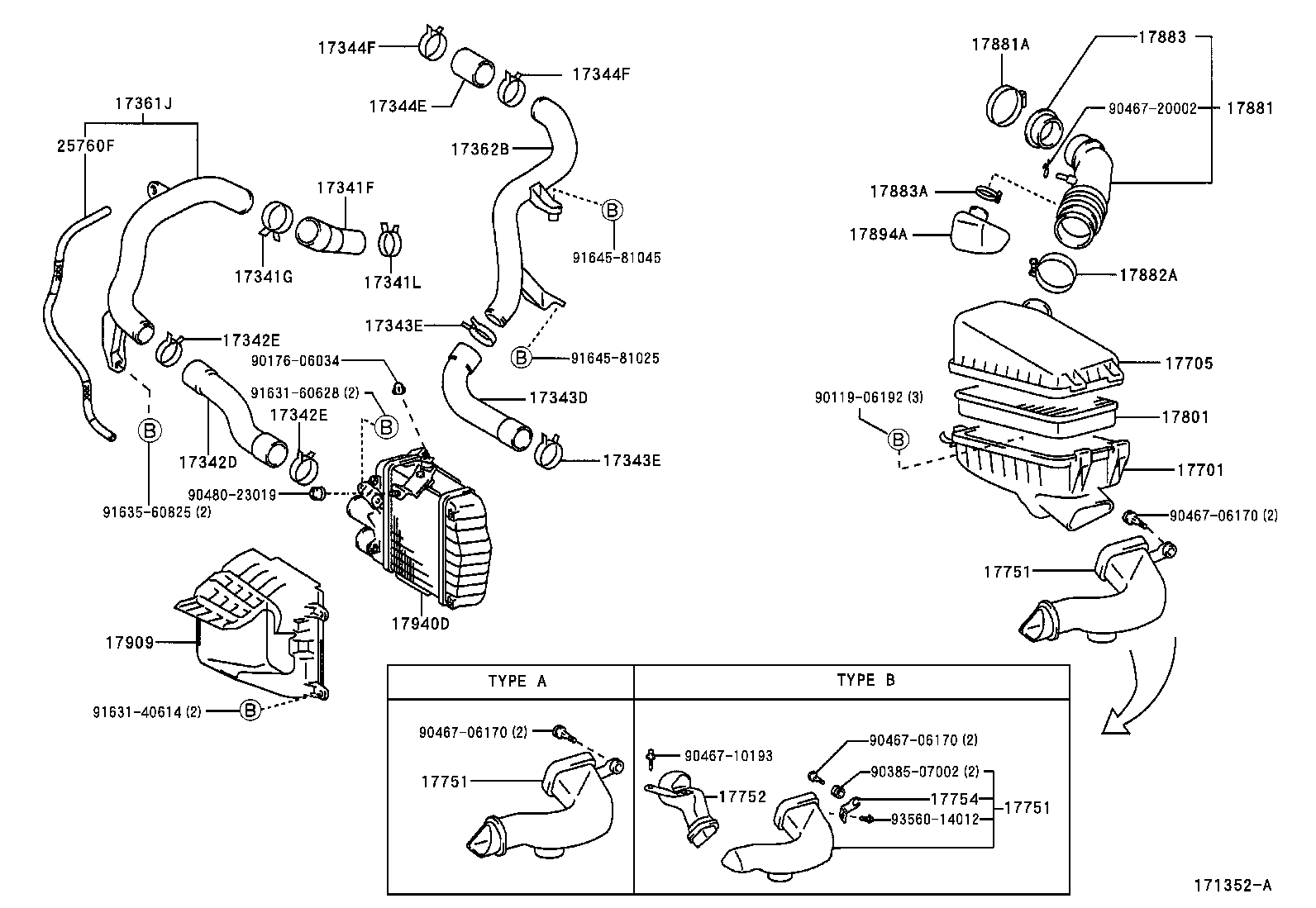

(9710-0007)2CTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-64130 |
2CTE..CT220 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90466-56001 |
2CTE..CT220 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90466-47001 |
2CTE..CT220 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-64040 |
2CTE..CT220 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90466-59001 |
2CTE..CT220 |
2 | ||
| 90467-59001 |
2CTE..CT220 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90466-59001 |
2CTE..CT220 |
2 | ||
| 90467-59001 |
2CTE..CT220 |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-64030 |
2CTE..CT220 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-59001 |
2CTE..CT220 |
2 | ||
| 90466-59001 |
2CTE..CT220 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-59001 |
2CTE..CT220 |
2 | ||
| 90466-59001 |
2CTE..CT220 |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-64020 |
2CTE..CT220 |
1 | ||
| 17344-64021 |
2CTE..CT220 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90466-56001 |
2CTE..CT220 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90466-56001 |
2CTE..CT220 |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17303-64010 |
2CTE..CT220 |
1 | ||
| 17361-64020 |
2CTE..CT220 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-64020 |
2CTE..CT220 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0B020 |
2CT#..CT220 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0B020 |
2CT#..CT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0B010 |
2CTE..CT220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17751-64060 |
2CT..CT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0B010 |
2CTE..CT220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17751-64060 |
2CT..CT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0B010 |
2CTE..CT220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 17751-64060 |
2CT..CT220 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-64030 |
2CT..CT220 |
1 | ||
| 17754 - STAY, AIR CLEANER INLET | ||||
| 17754-16010 |
2CT..CT220 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0B020 |
2CT#..CT220 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64290 |
2CT#..CT220 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
2CT#..CT220 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10730 |
2CT#..CT220 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-64050 |
2CT#..CT220 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10450 |
2CT#..CT220 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-64050 |
2CT#..CT220 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-0B010 |
2CTE..CT220 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0B010 |
2CTE..CT220 |
1 | ||
| 25760F - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-64260 |
2CTE..CT220 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90176-06034 | ||||
| 90385-07002 | ||||
| 90467-06170 | ||||
| 90467-10193 | ||||
| 90467-20002 | ||||
| 90480-23019 | ||||
| 91631-40614 | ||||
| 91631-60628 | ||||
| 91635-60825 | ||||
| 91645-81025 | ||||
| 91645-81045 | ||||
| 93560-14012 | ||||
