CT220L-AEMNXW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )SED

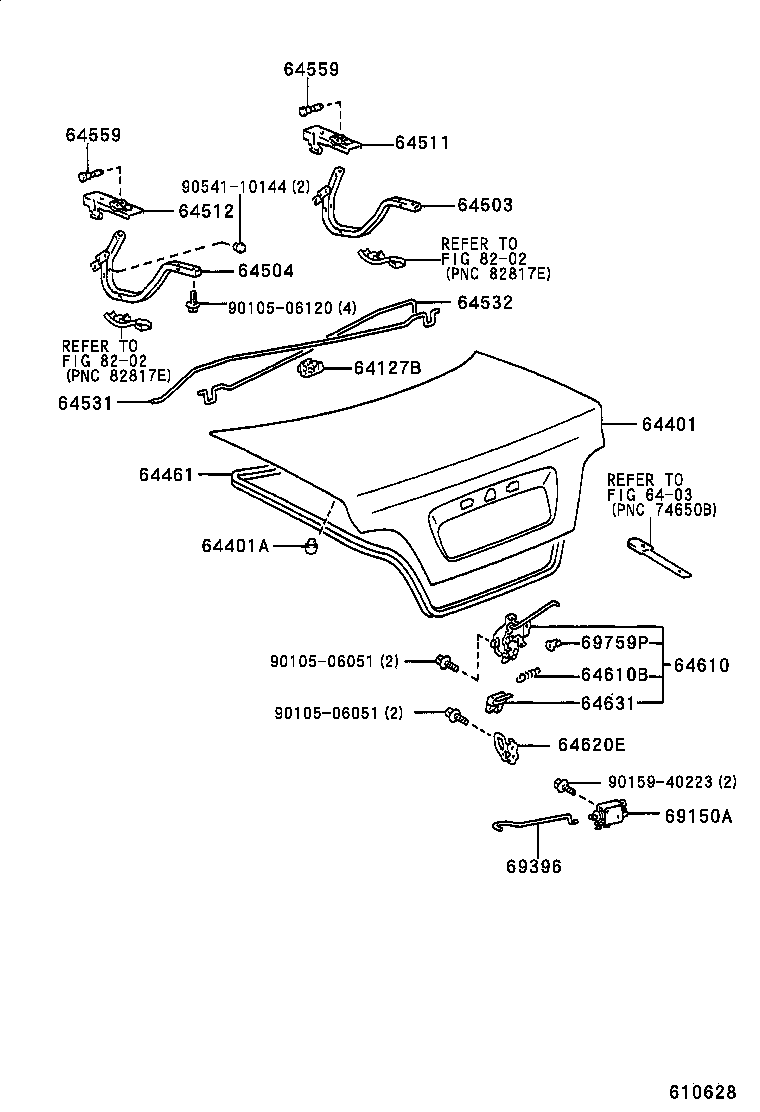

Click highlighted areas on diagram

diagram 6403 64127B 64401 64401A 64461 64503 64504 64511 64512 64531 64532 64559 64559 64610 64610B 64620E 64631 69150A 69396 69759P 8202 8202 9010506051 9010506051 9010506120 9015940223 9054110144
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-20120

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
85643-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20320

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64610B - SPRING, TENSION(FOR LOCK)
90905-06021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

WD=0.55,CW=17.5

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-20120

AT22#,CT220,ST220..SED

 1
64621-16020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-16020

AT22#,CDT220,CT220,ST220..SED

 1
69150A - ACTUATOR ASSY, BACK DOOR LOCK
69150-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
69396 - ROD, LUGGAGE COMPARTMENT DOOR LOCK OPENING, NO.2
69396-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20110

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
Common parts
90105-06051
90105-06120
90159-40223
90541-10144
Linked diagrams
6403
8202
