CT220L-AEMNXW (1997)
Toyota Avensis

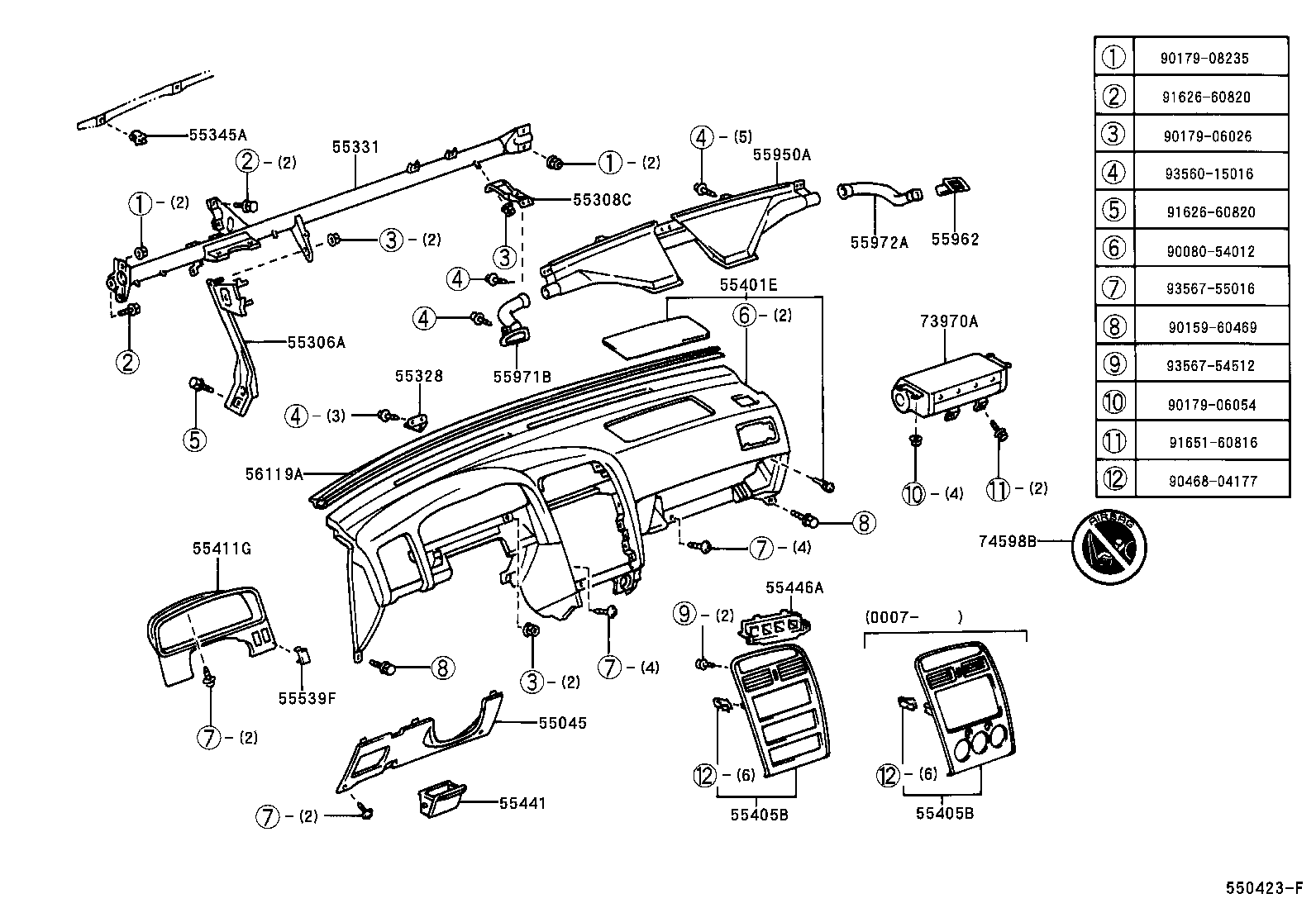

ILLUST NO. 1 OF 2(9710- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD SLATE GREEN,TRIM6# |
1 | ||
| 55045-05010B0 |
AT22#,CDT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-05050 |
AT22#,CT220,ST220..LHD |
1 | ||
| 55330-05090 |
CDT220..SOL;AT22#,CT220,ST220..LHD;CDT220..LHD..LB..TERRA W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 55330-05070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
5 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05050G0 |
AT22#,CT220,ST220..LHD W(*80,DRIVER SIDE & PASSENGER SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 55401-05050B0 |
AT22#,CT220,ST220..LHD W(*80,DRIVER SIDE & PASSENGER SIDE),MD.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05060 |
AT22#,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55405-05061 |
AT22#,CDT220,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55405-05040 |
AT22#,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55405-05040 |
ST220..LHD;AT22#,CDT220,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05060 |
AT22#,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55405-05061 |
AT22#,CDT220,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55405-05040 |
AT22#,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55405-05040 |
ST220..LHD;AT22#,CDT220,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 55441-05010B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-20120 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55539-05040 |
AT22#,CT220,ST220..LHD W/O(SEAT HEATER) |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD SLATE GREEN,TRIM6# |
1 | ||
| 55962-05030B0 |
AT22#,CDT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 56119A - SEAL, WINDSHIELD GLASS | ||||
| 56119-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90080-54012 | ||||
| 90159-60469 | ||||
| 90179-06026 | ||||
| 90179-06054 | ||||
| 90179-08235 | ||||
| 90468-04177 | ||||
| 91626-60820 | ||||
| 91651-60816 | ||||
| 93560-15016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||

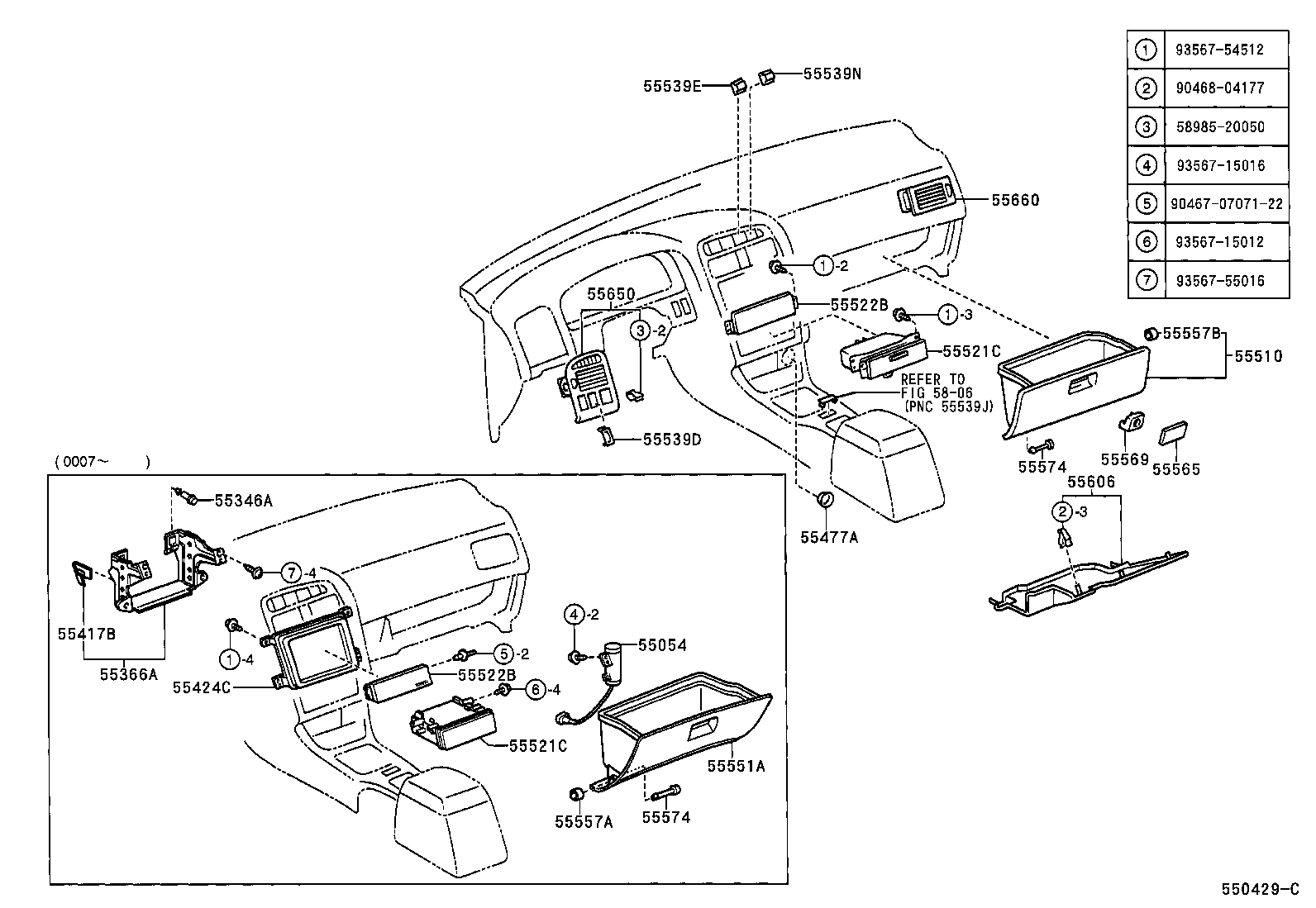

ILLUST NO. 2 OF 2(9710- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05030G0 |
AT22#,CDT220,CT220,ST220..LHD SLATE GREEN,TRIM6# |
1 | ||
| 55550-05030B0 |
AT22#,CDT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-05010 |
AT22#,CT220..TERRA STONE GRAIN |
1 | ||
| 55520-05020 |
AT22#,CT220,ST220 WOOD GRAIN |
1 | ||
| 55520-05010 |
ST220..LHD;AT22#,CDT220,CT220..TERRA STONE GRAIN |
1 | ||
| 55520-05021 |
AT22#,CDT220,CT220,ST220 WOOD GRAIN |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-05010 |
AT22#,CT220..TERRA STONE GRAIN |
1 | ||
| 55520-05020 |
AT22#,CT220,ST220 WOOD GRAIN |
1 | ||
| 55520-05010 |
ST220..LHD;AT22#,CDT220,CT220..TERRA STONE GRAIN |
1 | ||
| 55520-05021 |
AT22#,CDT220,CT220,ST220 WOOD GRAIN |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-05050 |
AZT220..TERRA;AZT220..LHD..SOL;AT22#,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-20110 |
AT22#,CDT220,CT220..LHD..TERRA |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-20130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-05020 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 55565-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 55569-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05030 |
AT22#,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55650-05051 |
AT22#,CDT220,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55650-05030 |
ST220..LHD;AT22#,CDT220,CT220..LHD..TERRA STONE GRAIN |
1 | ||
| 55650-05050 |
AT22#,CT220,ST220..LHD WOOD GRAIN |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05030G0 |
AT22#,CDT220,CT220,ST220..LHD SLATE GREEN,TRIM6# |
1 | ||
| 55660-05030B0 |
AT22#,CDT220,CT220,ST220..LHD MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 58985-20050 | ||||
| 90467-0707122 | ||||
| 90468-04177 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5806 | ||||
