CT220L-AEMNXW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
2CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710- )

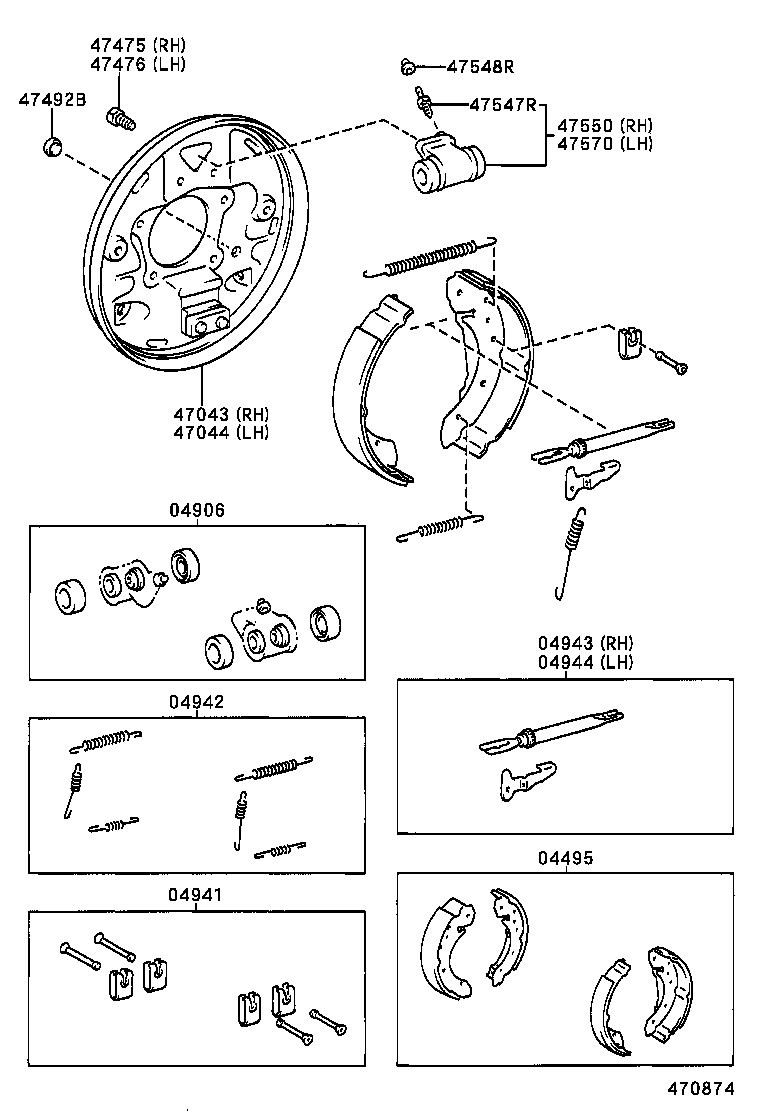

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 04943 - STRUT KIT, REAR BRAKE, RH | ||||
| 04943-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 04944 - STRUT KIT, REAR BRAKE, LH | ||||
| 04944-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-05010 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47553-05010 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-05020 |
AT22#,CDT220,CT220,ST220 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-05011 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-05030 |
AT22#,CT220,ST220 |
1 | ||
| 47550-05040 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-05040 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 47570-05030 |
AT22#,CT220,ST220 |
1 | ||
