CT220L-AEMNXW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

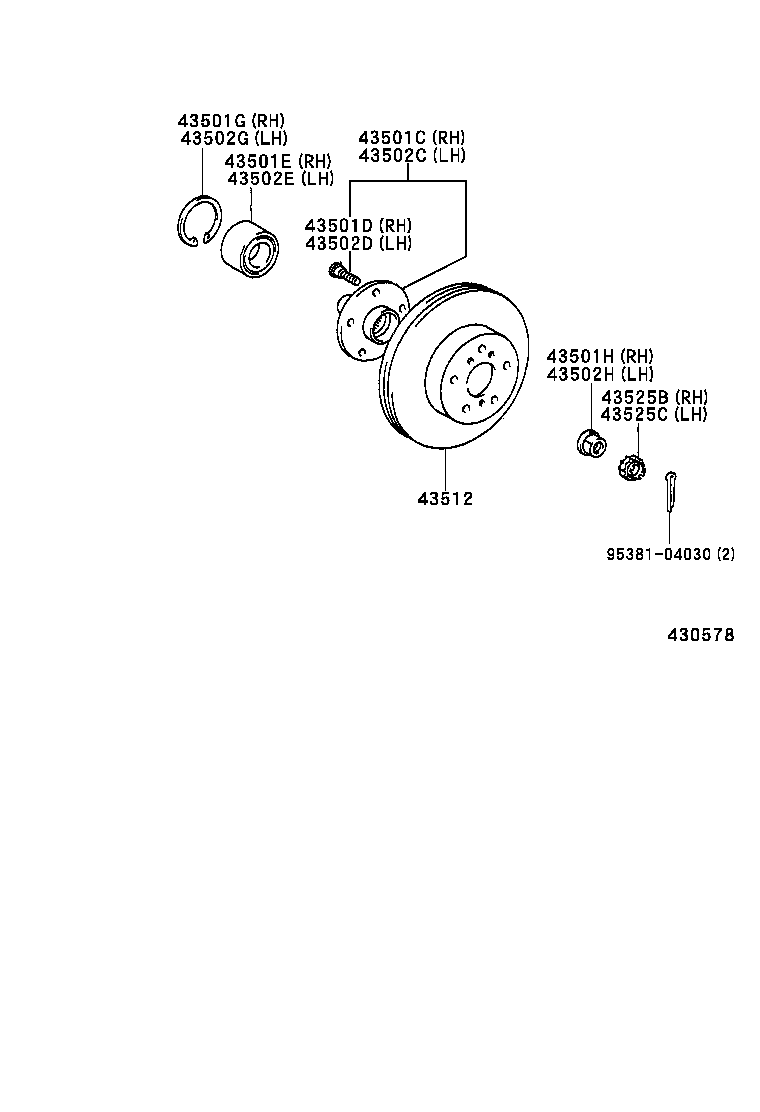

Click highlighted areas on diagram

diagram 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512 43525B 43525C 9538104030
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

REAR BRAKE : DISC

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90080-36087

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-79002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-22001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90080-36087

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-79002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-22001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43512 - DISC, FRONT
43512-05030

AT22#,CDT220,CT220,ST220

REAR BRAKE : DRUM

 2
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-20030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-20030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
95381-04030
