CT220L-AEMNTW (1997)
Toyota Avensis

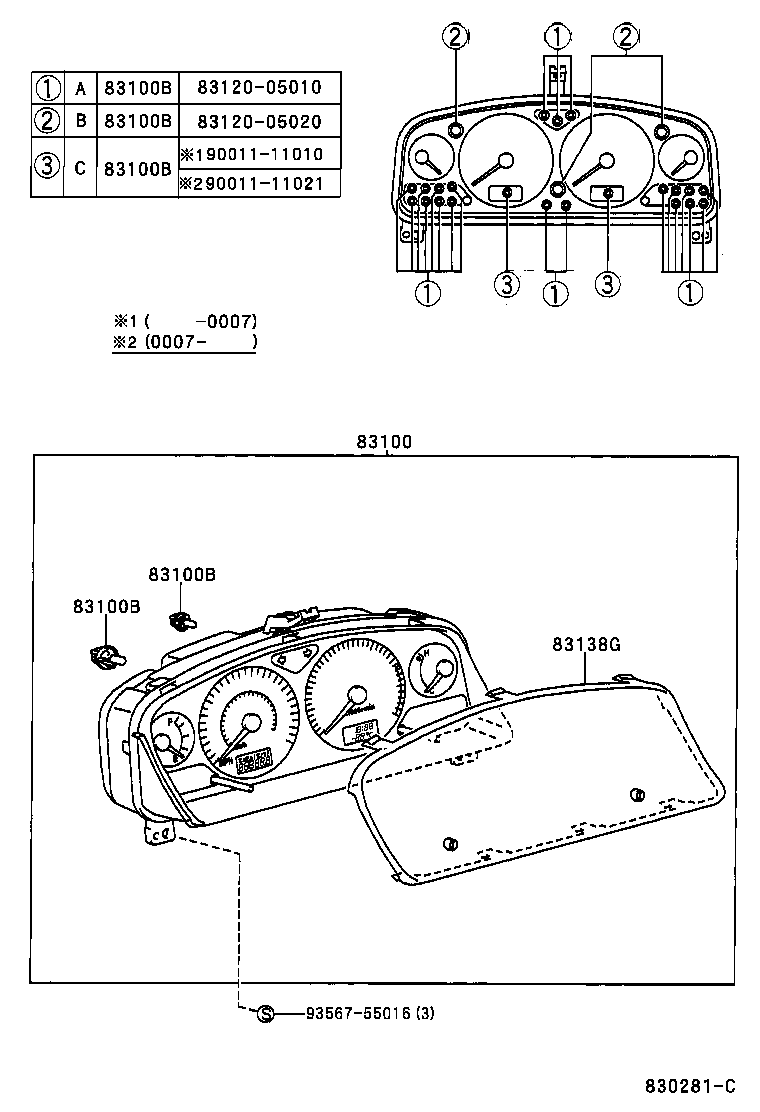

ILLUST NO. 1 OF 2(9710- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-05330 |
CT220..TD W(SPEED METER---KM) |
1 | ||
| 83800-05310 |
CDT220,CT220..DCR,TDEFI W(SPEED METER---KM) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-05010 |
AT220..LHD;CDT220,CT220..DCR,TDEFI 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
16 | ||
| 83120-05020 |
AT22#,CDT220,CT220,ST220 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 90011-11010 |
AT22#,CDT220,CT220,ST220 12V 1.2W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-05010 |
CT220..TD 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-05010 |
AT220..LHD;CDT220,CT220..DCR,TDEFI 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
16 | ||
| 83120-05020 |
AT22#,CDT220,CT220,ST220 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 90011-11010 |
AT22#,CDT220,CT220,ST220 12V 1.2W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-05010 |
CT220..TD 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-05010 |
AT220..LHD;CDT220,CT220..DCR,TDEFI 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
16 | ||
| 83120-05020 |
AT22#,CDT220,CT220,ST220 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 90011-11010 |
AT22#,CDT220,CT220,ST220 12V 1.2W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-05010 |
CT220..TD 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-05010 |
AT220..LHD;CDT220,CT220..DCR,TDEFI 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
16 | ||
| 83120-05020 |
AT22#,CDT220,CT220,ST220 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 90011-11010 |
AT22#,CDT220,CT220,ST220 12V 1.2W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-05010 |
CT220..TD 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
15 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-05010 |
AT220..LHD;CDT220,CT220..DCR,TDEFI 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
16 | ||
| 83120-05020 |
AT22#,CDT220,CT220,ST220 12V 3.4W,TYPE B:REFER TO ILLUSTRATION |
3 | ||
| 90011-11010 |
AT22#,CDT220,CT220,ST220 12V 1.2W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-05010 |
CT220..TD 12V 1.2W,TYPE A:REFER TO ILLUSTRATION |
15 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-05230 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

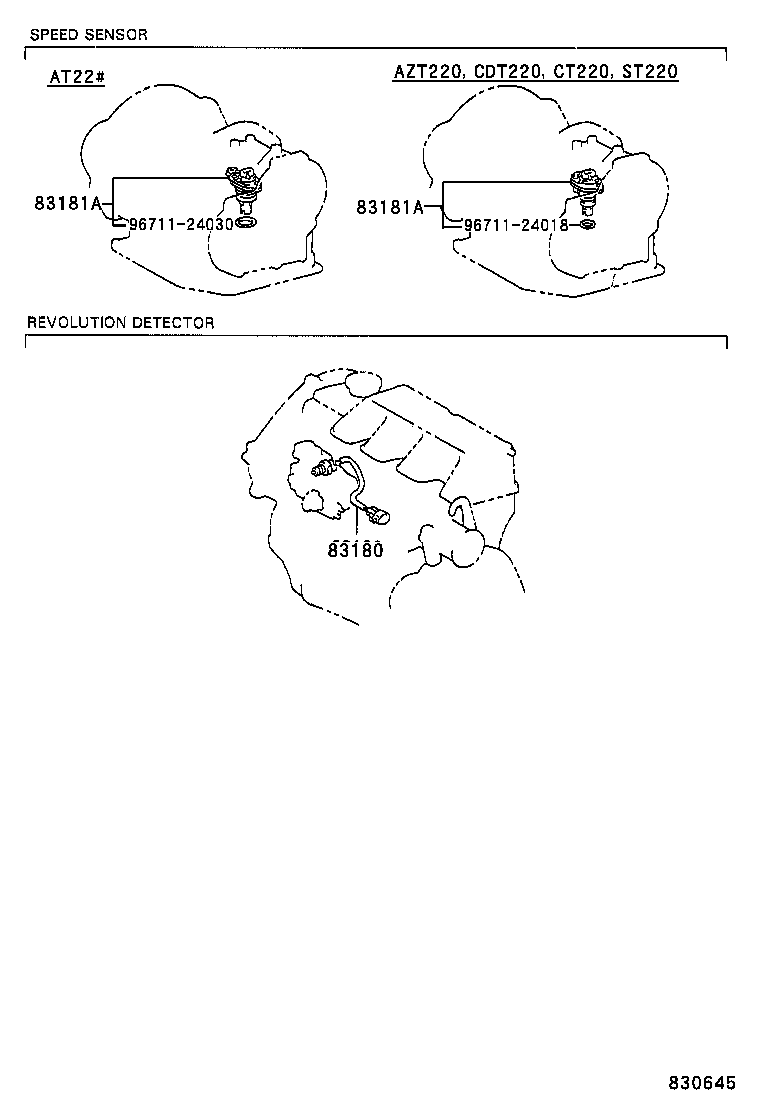

ILLUST NO. 2 OF 2(9710- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
CT220..TD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| Common parts | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
