CT220L-AEMNTW (1997)
Toyota Avensis

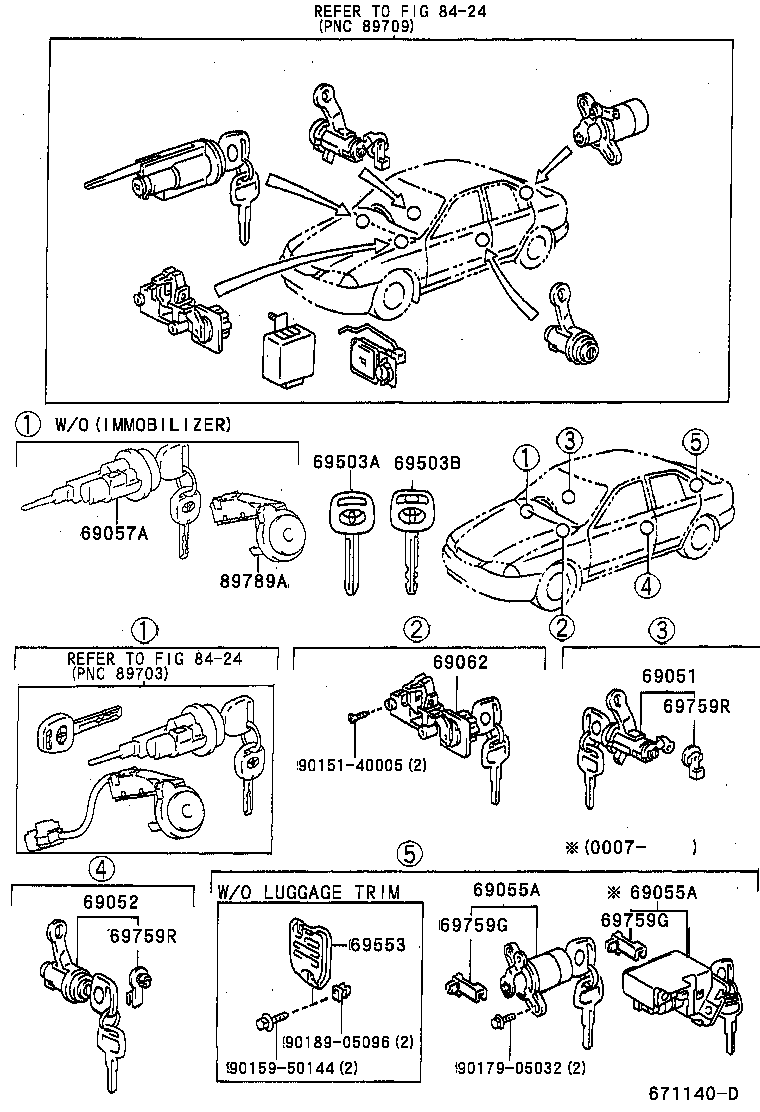

(9710- )CDT220 ; (9710- )AT22#,AZT220,CT220,ST220,ZZT22#..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-05060 |
AT22#,CDT220,CT220,ST220..SED |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-05060 |
AT22#,CDT220,CT220,ST220..SED |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90080-69007 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) MASTER KEY |
1 | ||
| 90080-69008 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) SUB KEY |
1 | ||
| 90080-69007 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) MASTER KEY |
1 | ||
| 90080-69008 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) SUB KEY |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-05010 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) MASTER KEY(VALEO) |
1 | ||
| 69516-05010 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) SUB KEY(VALEO) |
1 | ||
| 69516-05010 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) SUB KEY(VALEO) |
1 | ||
| 69515-05010 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) MASTER KEY(VALEO) |
1 | ||
| 69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER | ||||
| 69553-05010 |
AT22#,CT220,ST220..SED..(EFI,TDEFI) |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90159-50144 | ||||
| 90179-05032 | ||||
| 90189-05096 | ||||
| Linked diagrams | ||||
| 8424 | ||||

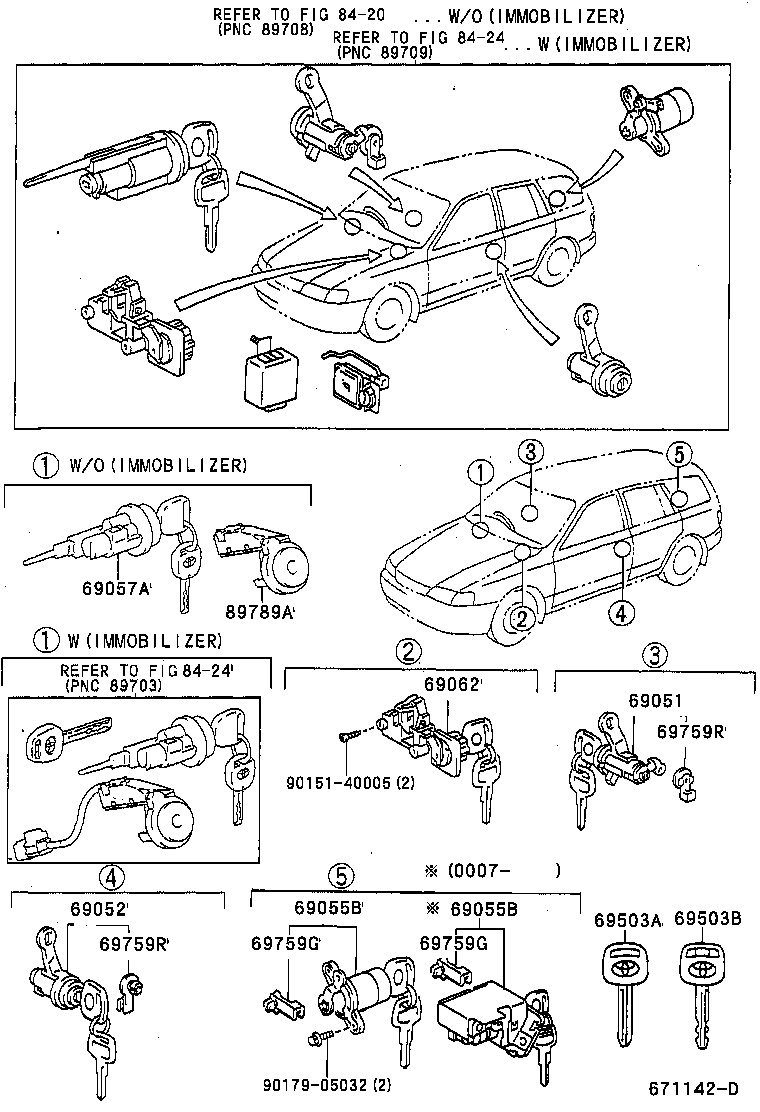

(9710- )CDT220..TERRA ; (9710- )CDT220..LHD..SOL ; (9710- )AT22#,AZT220,CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90080-69007 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) MASTER KEY |
1 | ||
| 90080-69008 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) SUB KEY |
1 | ||
| 90080-69007 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) MASTER KEY |
1 | ||
| 90080-69008 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) SUB KEY |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-05010 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) MASTER KEY(VALEO) |
1 | ||
| 69516-05010 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) SUB KEY(VALEO) |
1 | ||
| 69516-05010 |
AT220..LHD..SED;CT220,ST220..LHD..(EFI,TD) SUB KEY(VALEO) |
1 | ||
| 69515-05010 |
AT220,CT220,ST220..LHD..SED..(EFI,TD) MASTER KEY(VALEO) |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90179-05032 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8424 | ||||
