CT220L-AEMETW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
2CTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

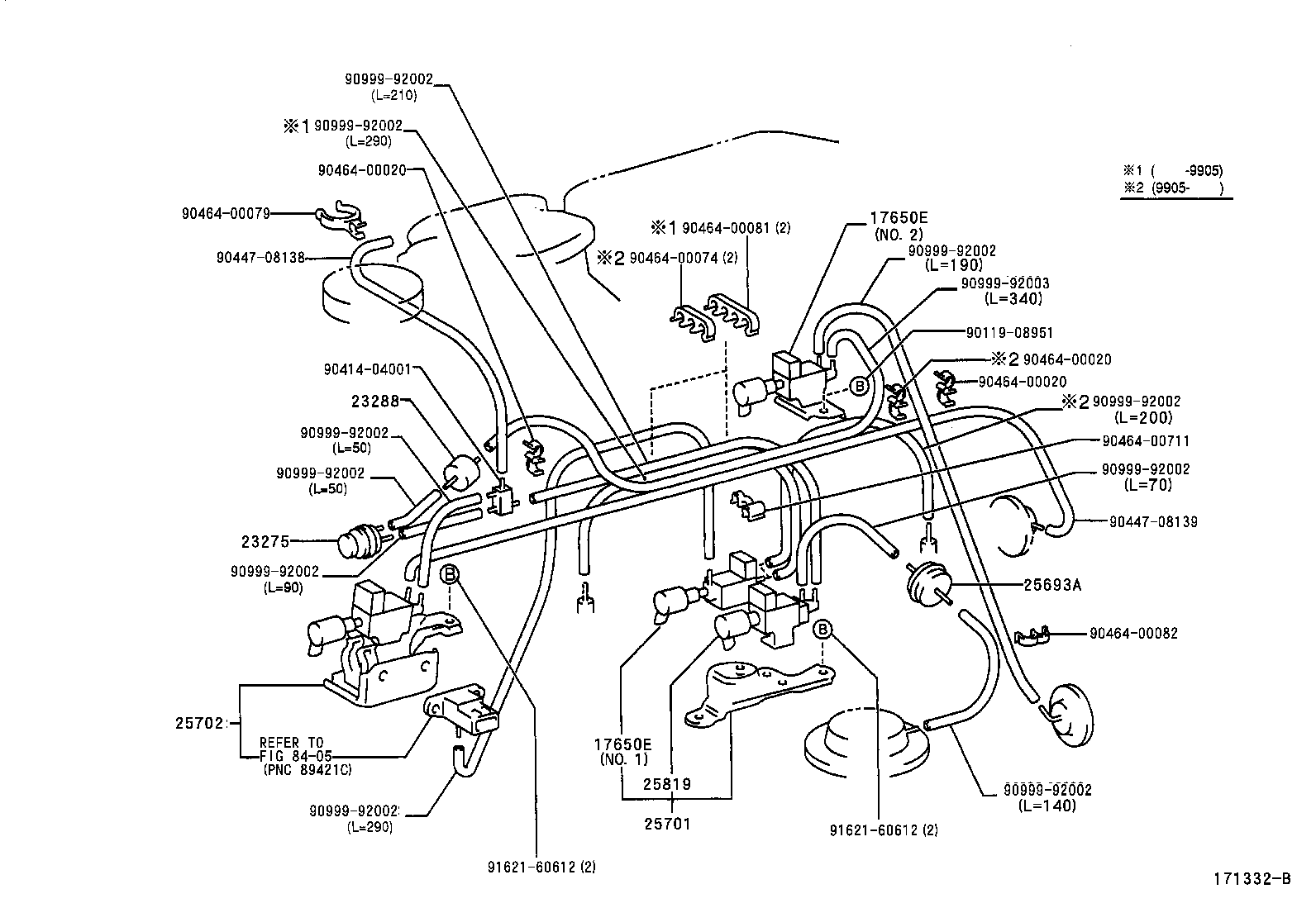

(9710-0007)2CTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64140 |
2CTE..CT220 NO.1 |
1 | ||
| 25860-64180 |
2CTE..CT220 NO.2 |
1 | ||
| 25860-64150 |
2CT..CT220 NO.2 |
1 | ||
| 25860-64130 |
2CT..CT220 NO.1 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64140 |
2CTE..CT220 NO.1 |
1 | ||
| 25860-64180 |
2CTE..CT220 NO.2 |
1 | ||
| 25860-64150 |
2CT..CT220 NO.2 |
1 | ||
| 25860-64130 |
2CT..CT220 NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03196 |
2CTE..CT220 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
2CTE..CT220 |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
2CT#..CT220 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-64020 |
2CTE..CT220 |
1 | ||
| 25702 - VALVE SET, EMISSION CONTROL, NO.2 | ||||
| 25702-64010 |
2CTE..CT220 |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64070 |
2CT..CT220 |
1 | ||
| 25819-64120 |
2CTE..CT220 |
1 | ||
| Common parts | ||||
| 90119-08951 | ||||
| 90414-04001 | ||||
| 90447-08138 | ||||
| 90447-08139 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00079 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 8405 | ||||
(9710-0007)2CT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64140 |
2CTE..CT220 NO.1 |
1 | ||
| 25860-64180 |
2CTE..CT220 NO.2 |
1 | ||
| 25860-64150 |
2CT..CT220 NO.2 |
1 | ||
| 25860-64130 |
2CT..CT220 NO.1 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64140 |
2CTE..CT220 NO.1 |
1 | ||
| 25860-64180 |
2CTE..CT220 NO.2 |
1 | ||
| 25860-64150 |
2CT..CT220 NO.2 |
1 | ||
| 25860-64130 |
2CT..CT220 NO.1 |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
2CT#..CT220 |
1 | ||
| 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25770-64080 |
2CT..CT220 |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64070 |
2CT..CT220 |
1 | ||
| 25819-64120 |
2CTE..CT220 |
1 | ||
| Common parts | ||||
| 90119-06406 | ||||
| 90119-08951 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00079 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00683 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-60612 | ||||
