CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303- )CDT250

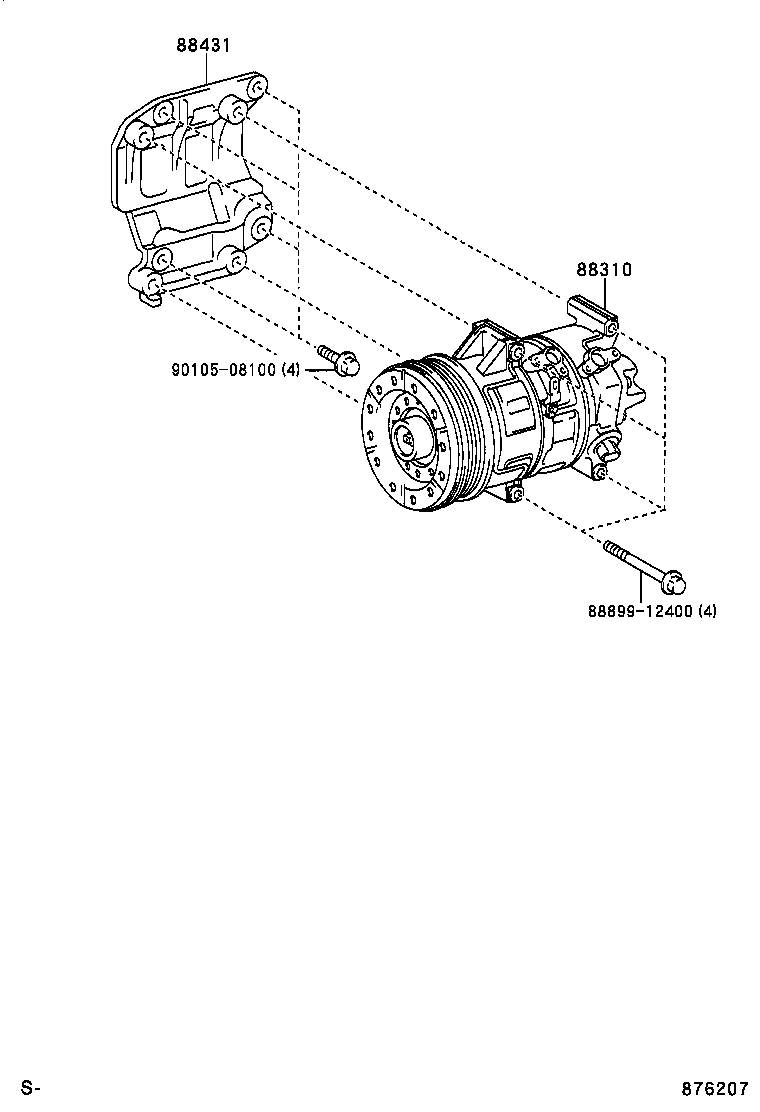

Click highlighted areas on diagram

diagram 88310 88431 8889912400 9010508100
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-05100

CDT250..DCR

 1
88310-05101

CDT250

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-05010

CDT250

 1
Common parts
88899-12400
90105-08100
