CDT250R-ALMEYW (2003)
Toyota Avensis
ILLUST NO. 2 OF 2(0301- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

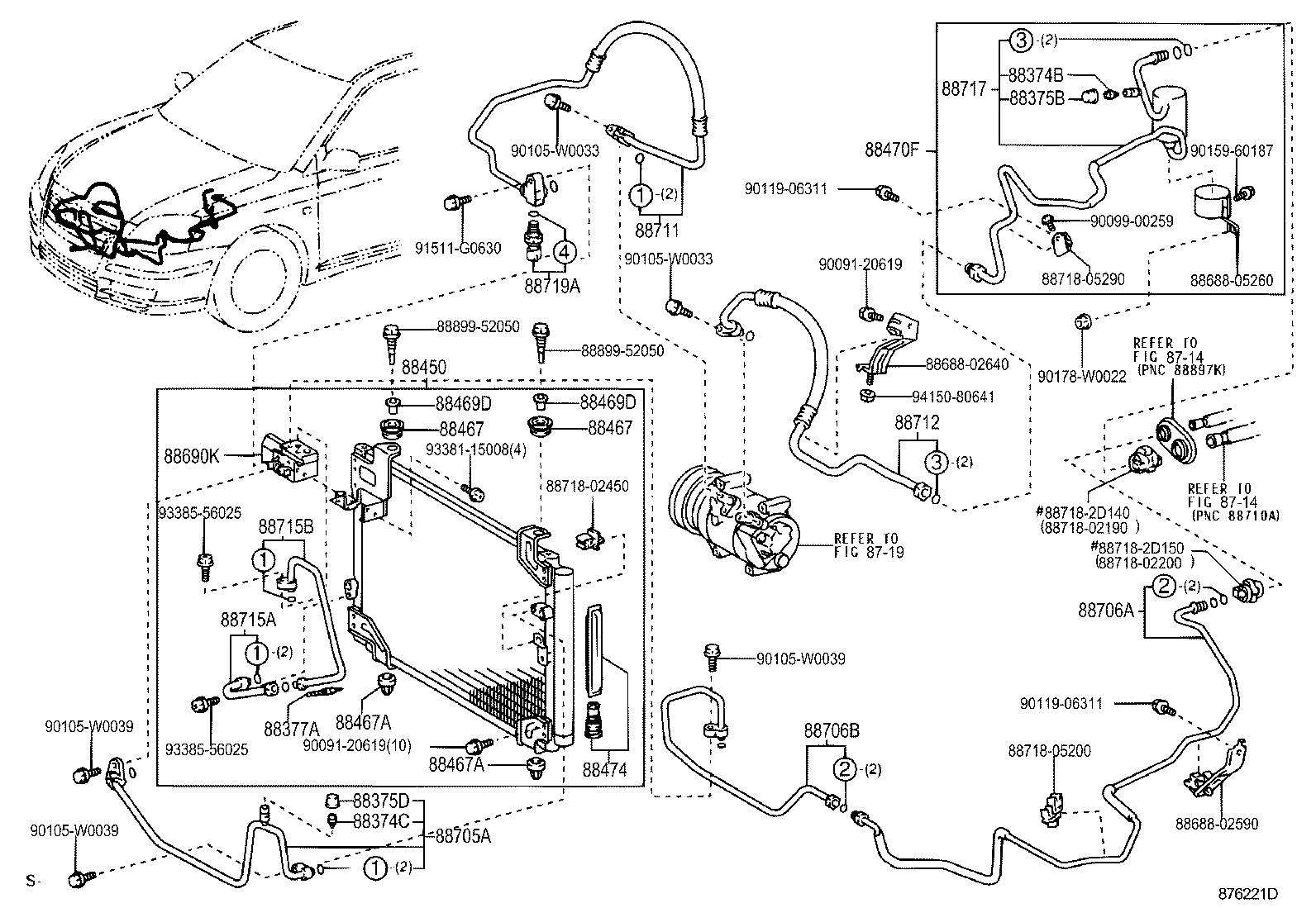

ILLUST NO. 1 OF 2(0303-0604)CDT250..RHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CDT250;AZT250..WG..HTWC;ZZT251..RHD..5F..ELEGT;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| 88377A - FILTER, REFRIGERANT | ||||
| 88377-52010 |
CDT250 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-05130 |
CDT250..RHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CDT250 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CDT250 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
CDT250 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
CDT250 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250 |
2 | ||
| 88470F - ACCUMULATOR & ACCESSORY ASSY | ||||
| 88470-05010 |
CDT250..RHD |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ADT251;CDT250..RHD |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-05010 |
CDT250 |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-05010 |
CDT250 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-05050 |
CDT250..RHD |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-05070 |
CDT250..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-05250 |
CDT250 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-05310 |
CDT250..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-05010 |
CDT250 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-05020 |
CDT250 |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-05240 |
CDT250..RHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| Common parts | ||||
| 88688-02590 | ||||
| 88688-02640 | ||||
| 88688-05260 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02450 | ||||
| 88718-05200 | ||||
| 88718-05290 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90091-20619 | ||||
| 90099-00259 | ||||
| 90105-W0033 | ||||
| 90105-W0039 | ||||
| 90119-06311 | ||||
| 90159-60187 | ||||
| 90178-W0022 | ||||
| 91511-G0630 | ||||
| 93381-15008 | ||||
| 93385-56025 | ||||
| 94150-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0303-0604)CDT250..RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-05130 |
CDT250..RHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CDT250 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CDT250 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ADT251;CDT250..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-05250 |
CDT250 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-05310 |
CDT250..RHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| Common parts | ||||
| 88578-12530 | ||||
| 88688-02590 | ||||
| 88688-02640 | ||||
| 88688-05190 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-05200 | ||||
| 88718-05290 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90080-10280 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-00259 | ||||
| 90119-06311 | ||||
| 90179-06274 | ||||
| 91511-G0625 | ||||
| 91511-J0625 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
