CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0604)

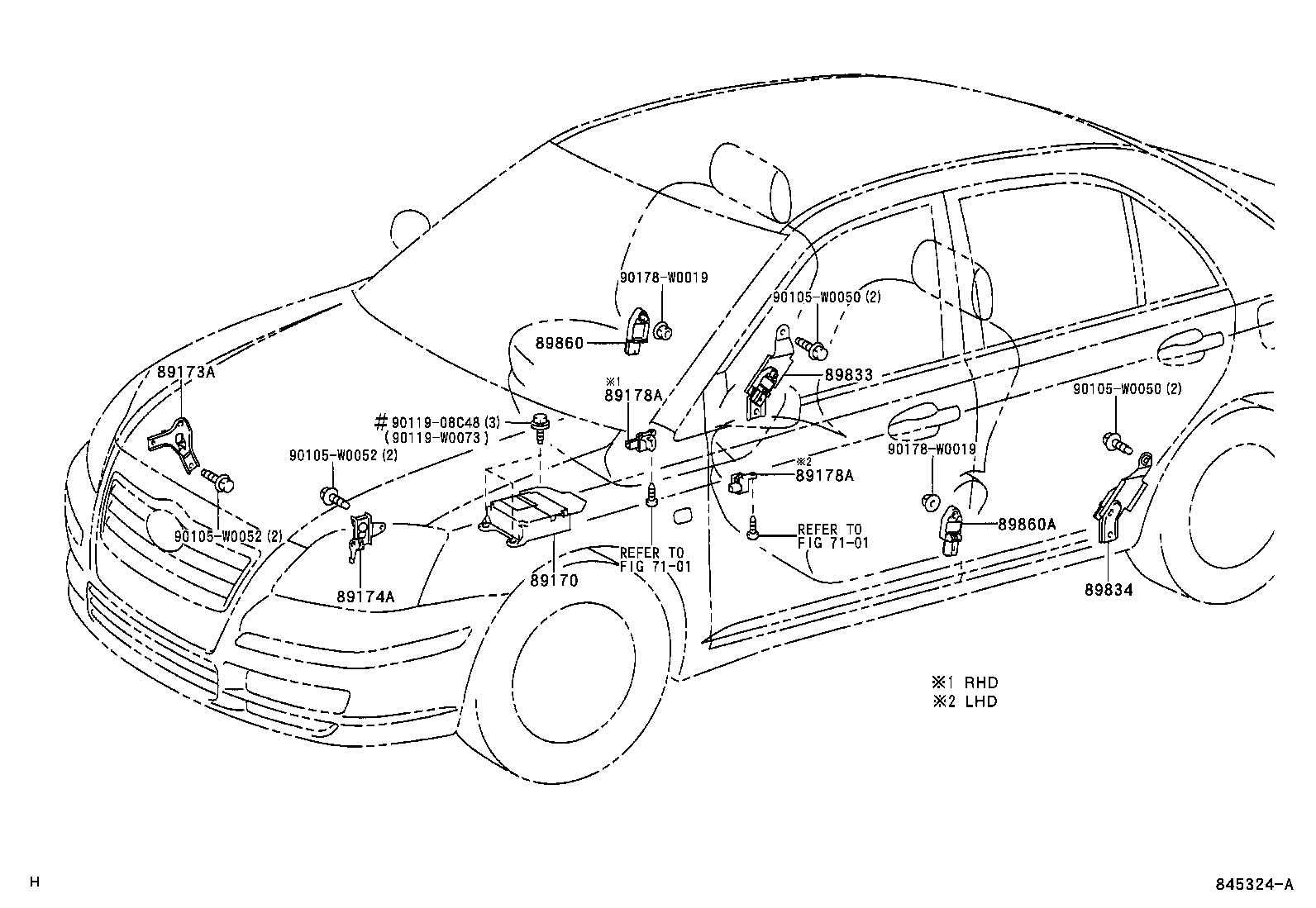

Click highlighted areas on diagram

diagram 7101 7101 89170 89173A 89174A 89178A 89178A 89833 89834 89860 89860A 90105W0050 90105W0050 90105W0052 90105W0052 9011908C48 90119W0073 90178W0019 90178W0019
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-05161

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
89170-05160

AZT25#,CDT250,ZZT25#..RHD..(D4,DCR,HTWC)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-05030

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-05010

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-05010

CDT250,ZZT25#..DCR,HTWC;ADT251,AZT25#..D4,DCR,DCRL

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-05010

CDT250,ZZT25#..DCR,HTWC;ADT251,AZT25#..D4,DCR,DCRL

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-05010

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05010

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
Common parts
90105-W0050
90105-W0052
90119-08C48
90119-W0073
90178-W0019
Linked diagrams
7101
