CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

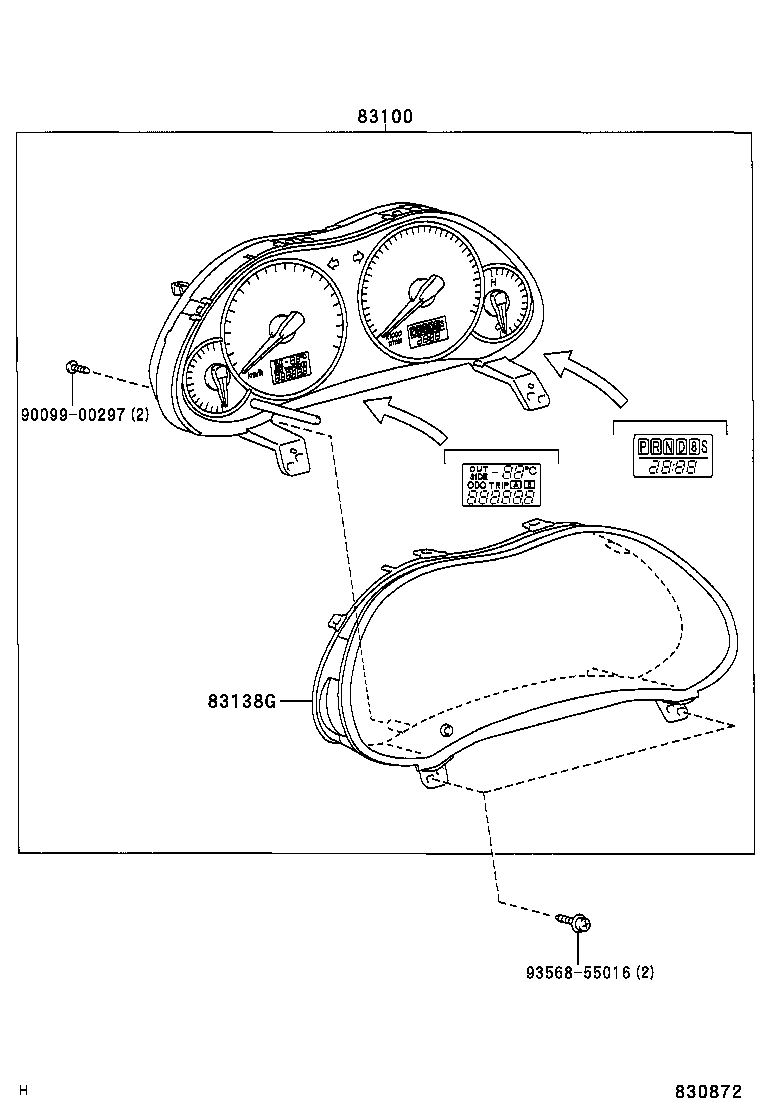

Click highlighted areas on diagram

diagram 83100 83138G 9009900297 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-05640

CDT250..RHD..(ELEGT,TEC)..DCR

 1
83800-05630

CDT250..RHD..(ELEGT,TEC)..DCR

SPEEDOMETER-240K/H

 1
83800-05641

CDT250..RHD

 1
83800-05631

CDT250..RHD

SPEEDOMETER-240K/H

 1
83800-05642

CDT250..RHD

 1
83800-05632

CDT250..RHD

SPEEDOMETER-240K/H

 1
83138G - GLASS, COMBINATION METER
83852-05530

AZT251;AZT250..RHD;CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY

 1
83852-05530

AZT251;AZT250..RHD..SED;CDT250..LHD..ENTRY;AZT250..LHD..4FC..D4;AZT250..RHD..(LB,WG)..TEC;CDT250..RHD..(ENTRY,TEC)..DCR

 1
83852-05530

CDT250..RHD..(LB,SED)..TEC..DCR

SPEEDOMETER-240K/H

 1
83852-05530

AZT251;AZT250,CDT250,ZZT25#..RHD;AZT250,CDT250..LHD..(ELEGT,TEC)..(DCR,HTWC)

 1
Common parts
90099-00297
93568-55016
