CDT250R-ALMEYW (2003)
Toyota Avensis

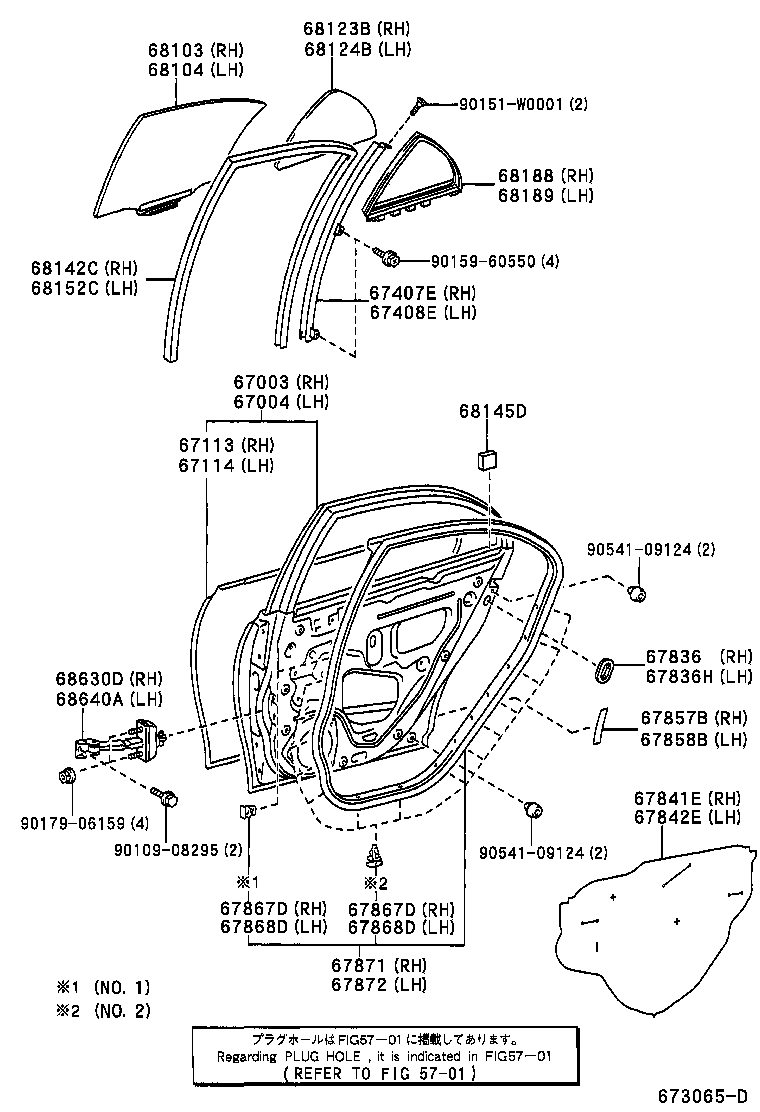

ILLUST NO. 2 OF 2(0301- )LB,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-05110 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-05110 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-05030 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-05030 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-05060 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-05060 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-05060 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67805-05060 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-05010 |
ADT251,AZT25#,CDT250,ZZT25# EUROPE-COLD SPEC |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-05010 |
ADT251,AZT25#,CDT250,ZZT25# EUROPE-COLD SPEC |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 90467-04034 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 67867-12150 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
14 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 90467-04034 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 67867-12150 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
14 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
14 | ||
| 90467-04034 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
14 | ||
| 90467-04034 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-05080 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-05080 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-05100 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-05100 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED *TEM,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-05050 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-05050 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-05070 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-05070 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-05030 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-05030 |
ADT251,AZT25#,CDT250,ZZT25#..LB,SED |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-05040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-05040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-W0001 | ||||
| 90159-60550 | ||||
| 90179-06159 | ||||
| 90541-09124 | ||||

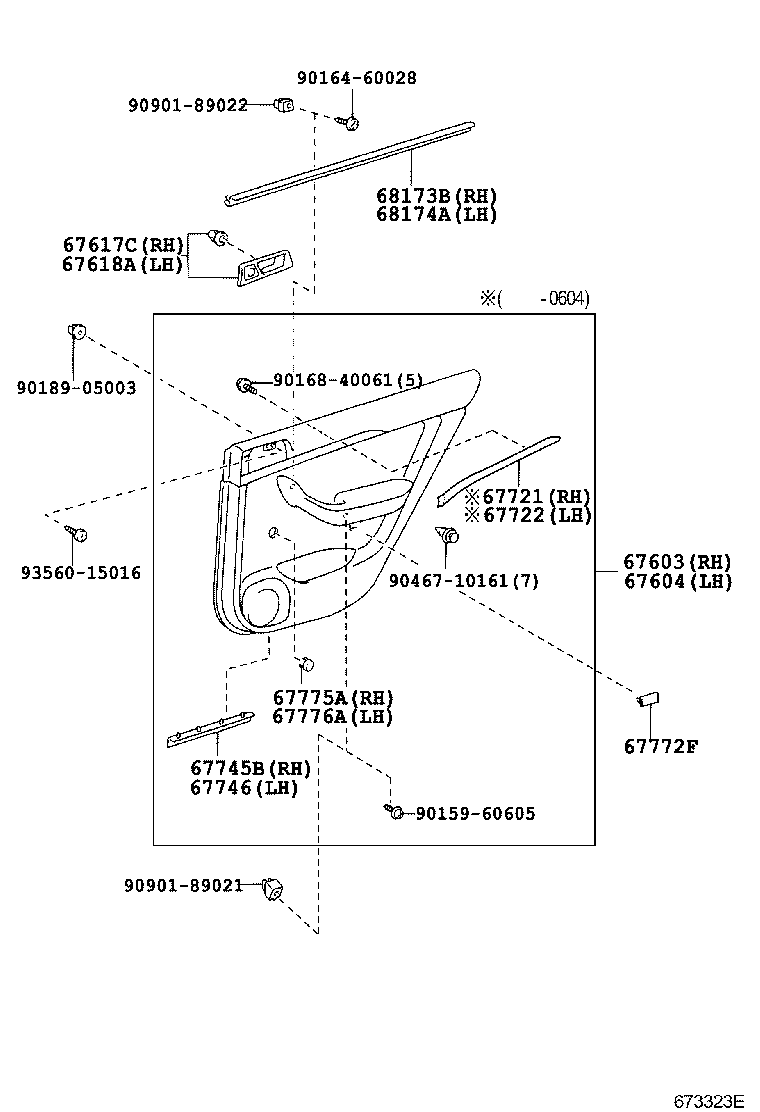

ILLUST NO. 1 OF 2(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67010-05160B0 |
ADT251,AZT25#,CDT250..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 67010-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67020-05160B0 |
ADT251,AZT25#,CDT250..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 67020-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 67617C - BASE, REAR DOOR TRIM, RH | ||||
| 67617-05030B0 |
ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC DK. GRAY,TRIM1# |
1 | ||
| 67618A - BASE, REAR DOOR TRIM, LH | ||||
| 67618-05030B0 |
ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC DK. GRAY,TRIM1# |
1 | ||
| 67721 - COVER, REAR DOOR TRIM, RH | ||||
| 67721-05020 |
ADT251,AZT25#,CDT250,ZZT25#..TEC |
1 | ||
| 67722 - COVER, REAR DOOR TRIM, LH | ||||
| 67722-05020 |
ADT251,AZT25#,CDT250,ZZT25#..TEC |
1 | ||
| 67745B - SEAL, REAR DOOR TRIM, RH | ||||
| 67745-05010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67746 - SEAL, REAR DOOR TRIM, LH | ||||
| 67746-05010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 67772F - CAP, REAR DOOR TRIM RETAINER | ||||
| 67772-05030B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-05090 |
AZT250,CDT250,ZZT25# |
1 | ||
| 68173-05091 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-05091 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 68174-05090 |
AZT250,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 90159-60605 | ||||
| 90164-60028 | ||||
| 90168-40061 | ||||
| 90189-05003 | ||||
| 90467-10161 | ||||
| 90901-89021 | ||||
| 90901-89022 | ||||
| 93560-15016 | ||||
