CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )LB

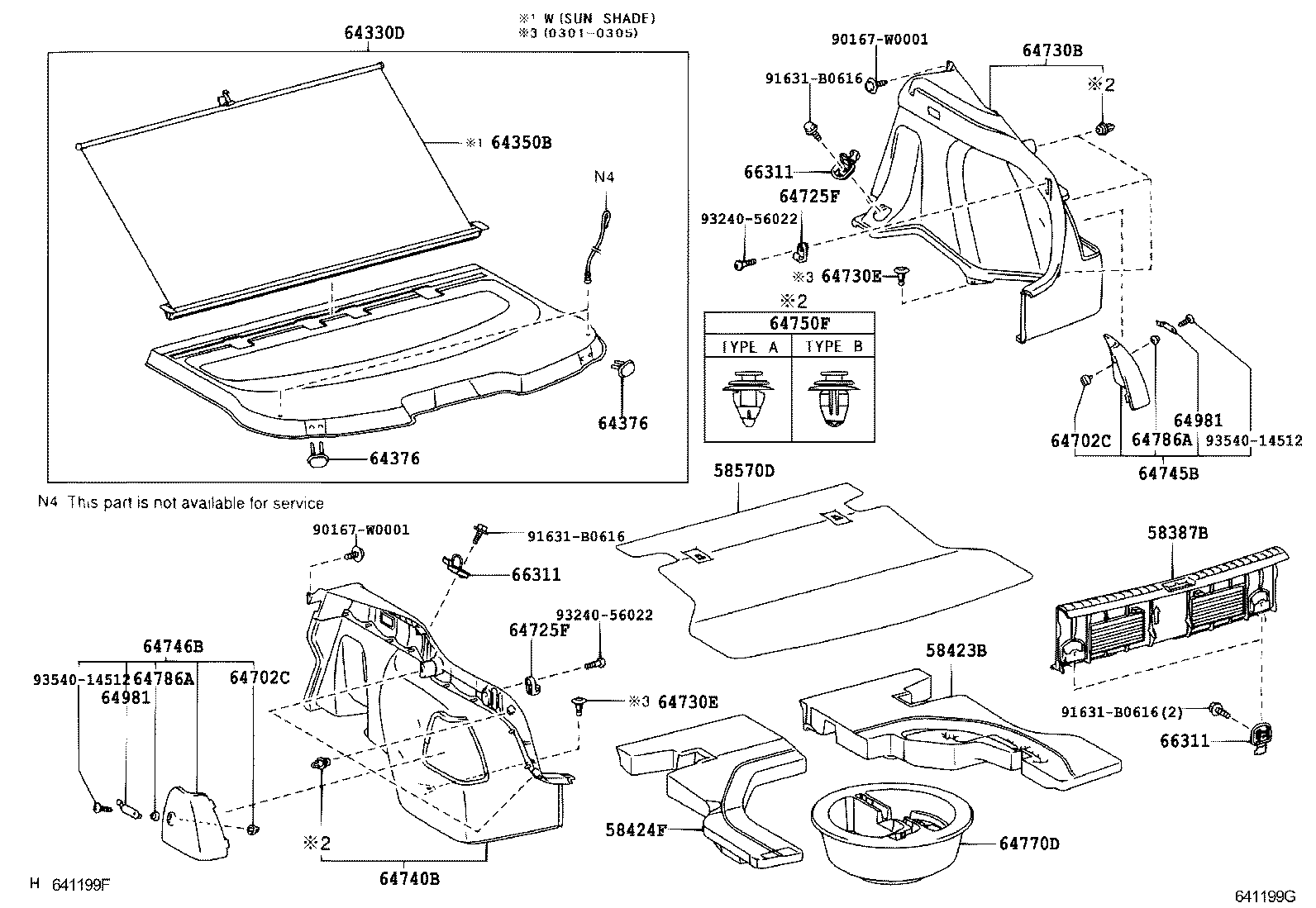

Click highlighted areas on diagram

diagram 58387B 58423B 58424F 58570D 64330D 64350B 64376 64376 64702C 64702C 64725F 64725F 64730B 64730E 64730E 64740B 64745B 64746B 64750F 64770D 64786A 64786A 64981 64981 66311 66311 66311 90167W0001 90167W0001 91631B0616 91631B0616 91631B0616 9324056022 9324056022 9354014512 9354014512
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-05080B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK.GRAY,TRIM1#

 1
58423B - SPACER, REAR FLOOR BOARD, NO.2
58423-05010

ADT251,AZT25#,CDT250,ZZT25#..LB

 1
58424F - SPACER, REAR FLOOR BOARD, NO.3
58424-05010

ADT251,AZT25#,CDT250,ZZT25#..LB

 1
58570D - CARPET ASSY, REAR FLOOR
58571-05070B1

AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
58571-05071B1

ADT251,AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-05170B0

ADT251,AZT25#,CDT250,ZZT251..LB..(ELEGT,TEC)

SUN SHADE-WITH,DK.GRAY,TRIM1#

 1
64330-05171B0

ADT251,AZT25#,CDT250,ZZT251..LB..(ELEGT,TEC)

SUN SHADE-WITH,DK.GRAY,TRIM1#

 1
64330-05160B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK.GRAY,TRIM1#

 1
64350B - SHADE, REAR WINDOW
64350-CA020

ADT251,AZT25#,CDT250,ZZT251..LB..(ELEGT,TEC)

SUN SHADE-WITH

 1
64350-CA021

ADT251,AZT25#,CDT250,ZZT251..LB..(ELEGT,TEC)

SUN SHADE-WITH

 1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-0D010

ADT251,AZT25#,CDT250,ZZT25#..LB

 2
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-0D010

ADT251,AZT25#,CDT250,ZZT25#..LB

 2
64702C - KNOB, WASHER TANK COVER
64982-16020C0

CDT250..LB..TEC;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..ENTRY;AZT25#,ZZT25#..(LB,WG)..(ENTRY,TEC)

BLACK,TRIM16

 2
64982-16020B6

CDT250..LB..TEC;AZT25#,ZZT25#..LB,WG;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..(ELEGT,ENTRY)

DK.GRAY,TRIM16

 2
64702C - KNOB, WASHER TANK COVER
64982-16020C0

CDT250..LB..TEC;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..ENTRY;AZT25#,ZZT25#..(LB,WG)..(ENTRY,TEC)

BLACK,TRIM16

 2
64982-16020B6

CDT250..LB..TEC;AZT25#,ZZT25#..LB,WG;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..(ELEGT,ENTRY)

DK.GRAY,TRIM16

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726-05010B0

ADT251,ZZT250..LB,WG;AZT25#,CDT250,ZZT251..(LB,WG)..(ENTRY,TEC)

DK.GRAY,TRIM1#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726-05010B0

ADT251,ZZT250..LB,WG;AZT25#,CDT250,ZZT251..(LB,WG)..(ENTRY,TEC)

DK.GRAY,TRIM1#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-05050B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-08222C0

AZT250,CDT250,ZZT25#..LB..(ENTRY,TEC)

BLACK,TRIM1#

 2
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90467-08222C0

AZT250,CDT250,ZZT25#..LB..(ENTRY,TEC)

BLACK,TRIM1#

 2
64740B - BOARD, DECK TRIM SIDE, LH
64740-05050B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
64745B - COVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
64745-05050B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
64746B - COVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
64746-05050B0

ADT251,AZT25#,CDT250,ZZT25#..LB

DK GRAY,TRIM1#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
67771-33030

ADT251,AZT25#,CDT250,ZZT25#..LB

TYPE A

 2
90467-10161

ADT251,AZT25#,CDT250,ZZT25#..LB

TYPE B

 6
64770D - COVER ASSY, SPARE WHEEL
64771-05040

ADT251,CDT250,ZZT25#..LB,WG

 1
64786A - PLATE, JACK COVER
64786-20010

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

 2
64786A - PLATE, JACK COVER
64786-20010

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

 2
64981 - STOPPER, WASHER TANK COVER
64981-16021

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

 2
64981 - STOPPER, WASHER TANK COVER
64981-16021

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

 2
66311 - HOOK, ROPE
66310-05020B0

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

DK.GRAY,TRIM1#

 4
66311 - HOOK, ROPE
66310-05020B0

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

DK.GRAY,TRIM1#

 4
66311 - HOOK, ROPE
66310-05020B0

ADT251,AZT25#,CDT250,ZZT25#..LB,WG

DK.GRAY,TRIM1#

 4
Common parts
90167-W0001
91631-B0616
93240-56022
93540-14512
