CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

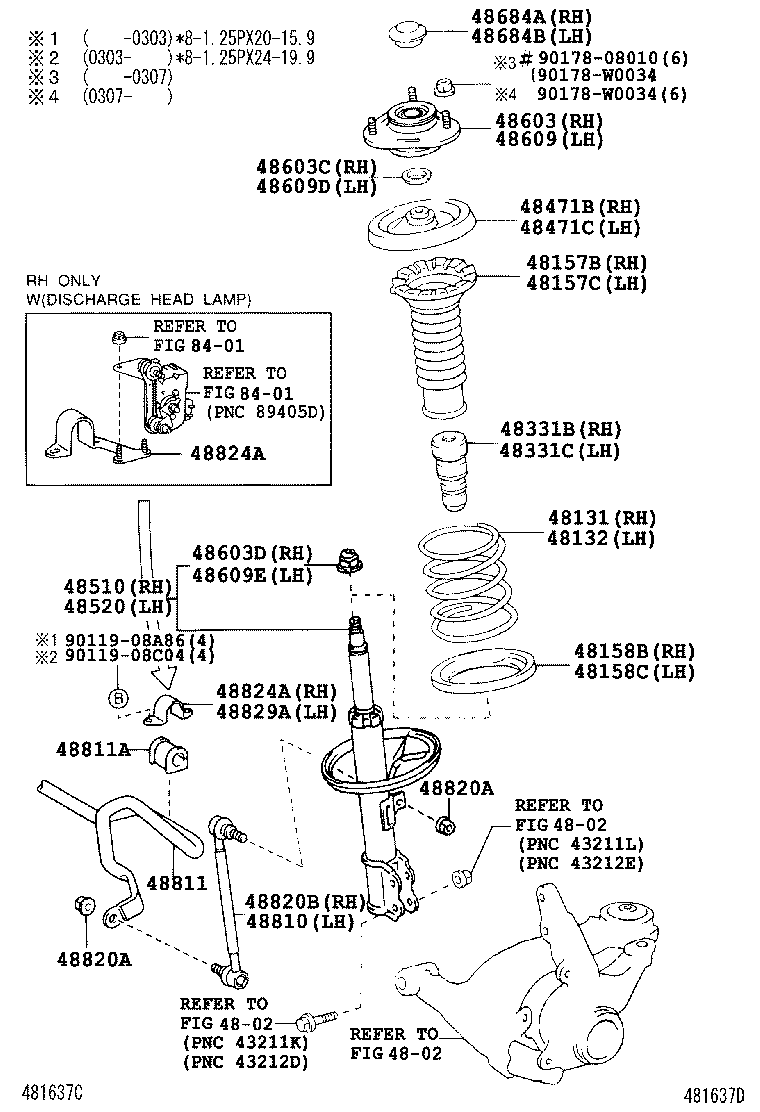

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603C 48603D 48609 48609D 48609E 48684A 48684B 48810 48811 48811A 48820A 48820A 48820B 48824A 48824A 48829A 8401 8401 9011908A86 9011908C04 9017808010 90178W0034 90178W0034
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-05710

CDT250

 1
48131-05760

CDT250..RHD..DCR

WITHOUT(DESTINATION PACKAGE)-IRELAND SPEC

 1
48132 - SPRING, FRONT COIL, LH
48131-05760

CDT250..RHD..DCR

WITHOUT(DESTINATION PACKAGE)-IRELAND SPEC

 1
48131-05710

CDT250

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-02060

ADT251,AZT25#,CDT250,ZZT25#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-02060

ADT251,AZT25#,CDT250,ZZT25#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-02050

ADT251,AZT25#,CDT250,ZZT25#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-02050

ADT251,AZT25#,CDT250,ZZT25#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-02050

ADT251,AZT25#,CDT250,ZZT25#

 1
48331C - BUMPER, FRONT SPRING, LH
48331-02050

ADT251,AZT25#,CDT250,ZZT25#

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-02030

ADT251,AZT25#,CDT250,ZZT25#

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-02030

ADT251,AZT25#,CDT250,ZZT25#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09820

CDT250

MARK 48510-05220

 1
48510-09A03

AZT251,CDT250

MARK 48510-05221

 1
48510-09830

AZT251..RHD;CDT250..RHD..(ENTRY,TEC)..DCR

MARK 48510-05230,WITHOUT(DESTINATION PACKAGE)-IRELAND SPEC

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-09870

AZT251,CDT250

MARK 48520-05221

 1
48520-09670

CDT250

MARK 48520-05220

 1
48520-09680

AZT251..RHD;CDT250..RHD..(ENTRY,TEC)..DCR

MARK 48520-05230,WITHOUT(DESTINATION PACKAGE)-IRELAND SPEC

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-05040

ADT251,AZT25#,CDT250

 1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22002

ADT251,AZT25#,CDT250,ZZT25#

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-14015

ADT251,AZT25#,CDT250,ZZT25#

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-05040

ADT251,AZT25#,CDT250

 1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22002

ADT251,AZT25#,CDT250,ZZT25#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-14015

ADT251,AZT25#,CDT250,ZZT25#

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-47010

ADT251,AZT25#,CDT250,ZZT25#

 1
48811 - BAR, STABILIZER, FRONT
48811-05090

AZT25#,CDT250,ZZT25#

 1
48811A - BUSH(FOR FRONT STABILIZER BAR)
48815-02110

AZT25#,CDT250,ZZT25#

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151

ADT251,AZT25#,CDT250,ZZT25#

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151

ADT251,AZT25#,CDT250,ZZT25#

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-47010

ADT251,AZT25#,CDT250,ZZT25#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-05030

AZT250..LHD;ZZT251..ELEGT;ZZT251..LHD..TEC;AZT250..RHD..(LB,WG)..ELEGT;ADT251,AZT251,CDT250,ZZT250..ELEGT,TEC

HEAD LAMP-DISCHARGE

 1
48824-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-05030

AZT250..LHD;ZZT251..ELEGT;ZZT251..LHD..TEC;AZT250..RHD..(LB,WG)..ELEGT;ADT251,AZT251,CDT250,ZZT250..ELEGT,TEC

HEAD LAMP-DISCHARGE

 1
48824-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90119-08A86
90119-08C04
90178-08010
90178-W0034
Linked diagrams
4802
8401
