CDT250R-ALMEYW (2003)
Toyota Avensis

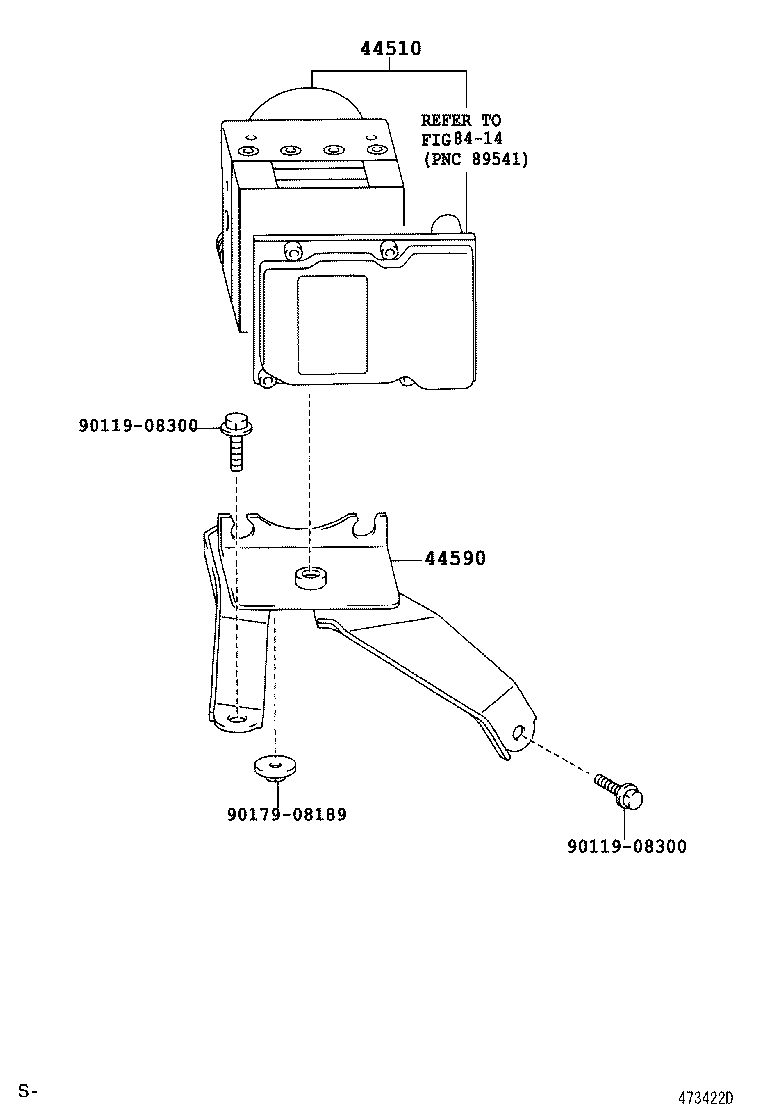

ILLUST NO. 2 OF 2(0301-0402)DCR,DCRL,HTWC ; (0402- )AZT250,CDT250,ZZT250..DCR,DCRL,HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-05050 |
AZT250,CDT250,ZZT25#..DCR,HTWC |
1 | ||
| 44050-05062 |
CDT250 VSC-WITH |
1 | ||
| 44050-05052 |
AZT250,CDT250,ZZT250..DCR,DCRL,HTWC |
1 | ||
| 44050-05060 |
CDT250 VSC-WITH |
1 | ||
| 44050-05080 |
CDT250,ZZT250 VSC-WITH |
1 | ||
| 44050-05063 |
CDT250,ZZT250 VSC-WITH |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-05020 |
AZT250,CDT250,ZZT250..DCR,DCRL,HTWC |
1 | ||
| 44590-05030 |
CDT250 VSC-WITH |
1 | ||
| Common parts | ||||
| 90119-08300 | ||||
| 90179-08189 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(0301-0402)AZT25#,CDT250..RHD ; (0402- )AZT25#,CDT250,ZZT25#..RHD ; (0504- )A
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-05180 |
CDT250,ZZT250..RHD |
1 | ||
| 47311-05210 |
CDT250..RHD VSC-WITH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10667 |
AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 90412-10227 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-05050 |
CDT250..RHD VSC-WITH |
1 | ||
| 47312-05040 |
CDT250,ZZT250..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-05170 |
CDT250..RHD |
1 | ||
| 47313-05190 |
CDT250..RHD VSC-WITH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# LH |
1 | ||
| 90947-02D23 |
ADT251,AZT25#,CDT250,ZZT25# (J),LH |
1 | ||
| 90947-02D22 |
ADT251,AZT25#,CDT250,ZZT25# (J),RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# (L),RH |
1 | ||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# (L),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# LH |
1 | ||
| 90947-02D23 |
ADT251,AZT25#,CDT250,ZZT25# (J),LH |
1 | ||
| 90947-02D22 |
ADT251,AZT25#,CDT250,ZZT25# (J),RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# (L),RH |
1 | ||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# (L),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-05090 |
CDT250,ZZT250..RHD |
1 | ||
| 47314-05100 |
CDT250..RHD VSC-WITH |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02160 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-05100 |
CDT250..RHD |
1 | ||
| 47317-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-05100 |
CDT250..RHD |
1 | ||
| 47317-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-05100 |
CDT250..RHD |
1 | ||
| 47318-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-05100 |
CDT250..RHD |
1 | ||
| 47318-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E85 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E85 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-13020 |
CDT250..RHD VSC-WITH |
2 | ||
| Common parts | ||||
| 90080-11529 | ||||
| 90119-08C40 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90480-01556 | ||||
| 90480-01620 | ||||
| 90480-01628 | ||||
| 90949-01A25 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C76 | ||||
| 90949-01C77 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
| 4703 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0301-0402)CDT250,ZZT25#..RHD ; (0402- )CDT250,ZZT250..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-05180 |
CDT250,ZZT250..RHD |
1 | ||
| 47311-05210 |
CDT250..RHD VSC-WITH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10667 |
AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 90412-10227 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-05050 |
CDT250..RHD VSC-WITH |
1 | ||
| 47312-05040 |
CDT250,ZZT250..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-05170 |
CDT250..RHD |
1 | ||
| 47313-05190 |
CDT250..RHD VSC-WITH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# LH |
1 | ||
| 90947-02D23 |
ADT251,AZT25#,CDT250,ZZT25# (J),LH |
1 | ||
| 90947-02D22 |
ADT251,AZT25#,CDT250,ZZT25# (J),RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# (L),RH |
1 | ||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# (L),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# LH |
1 | ||
| 90947-02D23 |
ADT251,AZT25#,CDT250,ZZT25# (J),LH |
1 | ||
| 90947-02D22 |
ADT251,AZT25#,CDT250,ZZT25# (J),RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# RH |
1 | ||
| 90080-94199 |
ADT251,AZT25#,CDT250,ZZT25# (L),RH |
1 | ||
| 90080-94200 |
ADT251,AZT25#,CDT250,ZZT25# (L),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-05090 |
CDT250,ZZT250..RHD |
1 | ||
| 47314-05100 |
CDT250..RHD VSC-WITH |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02160 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-05100 |
CDT250..RHD |
1 | ||
| 47317-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-05100 |
CDT250..RHD |
1 | ||
| 47317-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-05100 |
CDT250..RHD |
1 | ||
| 47318-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-05100 |
CDT250..RHD |
1 | ||
| 47318-05120 |
CDT250..RHD VSC-WITH |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E85 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E85 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
CDT250,ZZT250..RHD |
2 | ||
| Common parts | ||||
| 90080-11529 | ||||
| 90119-08C40 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90480-01556 | ||||
| 90480-01620 | ||||
| 90480-01628 | ||||
| 90949-01970 | ||||
| 90949-01A25 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C77 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
| 4703 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(0301-0402)D4,DCR,DCRL ; (0402- )ZZT25# ; (0402- )AZT25#,CDT250..D4,DCR,DCRL
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-05050 |
AZT250,CDT250,ZZT25#..DCR,HTWC |
1 | ||
| 44050-05062 |
CDT250 VSC-WITH |
1 | ||
| 44050-05052 |
AZT250,CDT250,ZZT250..DCR,DCRL,HTWC |
1 | ||
| 44050-05060 |
CDT250 VSC-WITH |
1 | ||
| 44050-05080 |
CDT250,ZZT250 VSC-WITH |
1 | ||
| 44050-05063 |
CDT250,ZZT250 VSC-WITH |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-05020 |
AZT250,CDT250,ZZT250..DCR,DCRL,HTWC |
1 | ||
| 44590-05030 |
CDT250 VSC-WITH |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08300 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
| Linked diagrams | ||||
| 8414 | ||||
