CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303-0604)CDT250..RHD

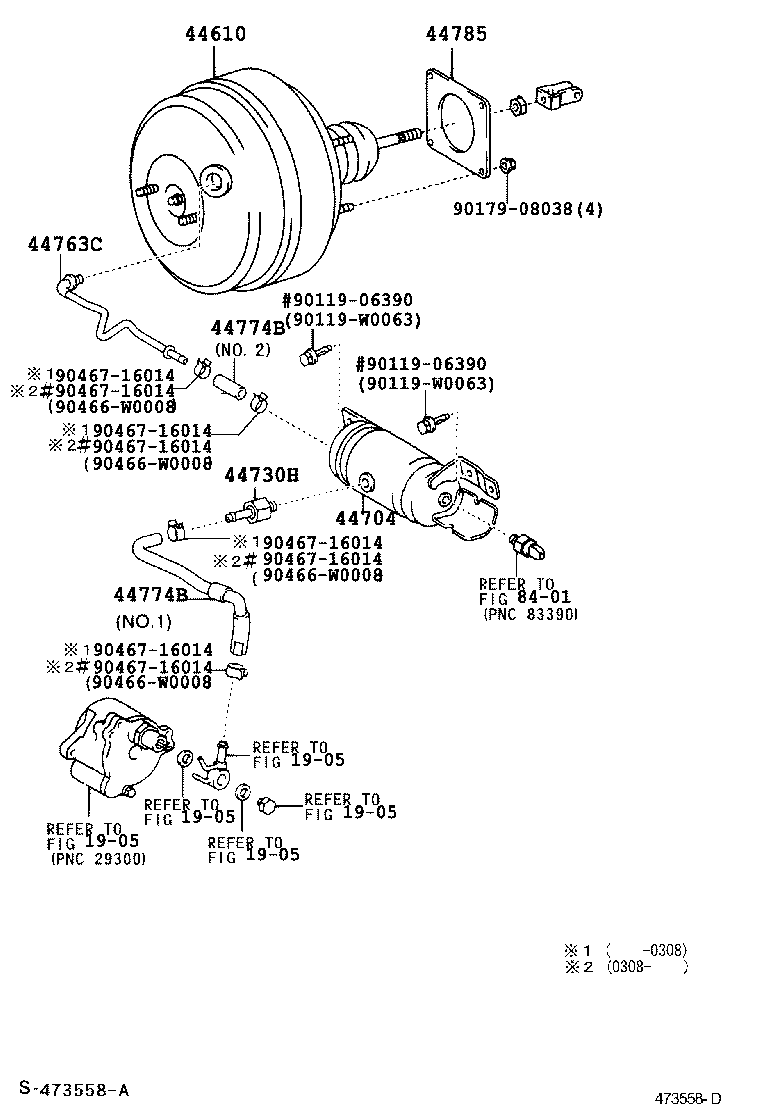

Click highlighted areas on diagram

diagram 1905 1905 1905 1905 1905 44610 44704 44730H 44763C 44774B 44774B 44785 8401 9017908038 90466W0008 90466W0008 90466W0008 90466W0008 9046716014 9046716014 9046716014 9046716014 9046716014 9046716014 9046716014 9046716014
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-05100

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-20170

CDT250..RHD

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-12080

CDT250

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-05110

CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY

 1
44763-05080

CDT250..RHD..DCR

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-20370

CDT250..DCR

NO.1

 1
44774-20390

CDT250..RHD..DCR

NO.2

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-20370

CDT250..DCR

NO.1

 1
44774-20390

CDT250..RHD..DCR

NO.2

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90179-08038
90466-W0008
90467-16014
Linked diagrams
1905
8401
