CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303-0604)CDT250..RHD

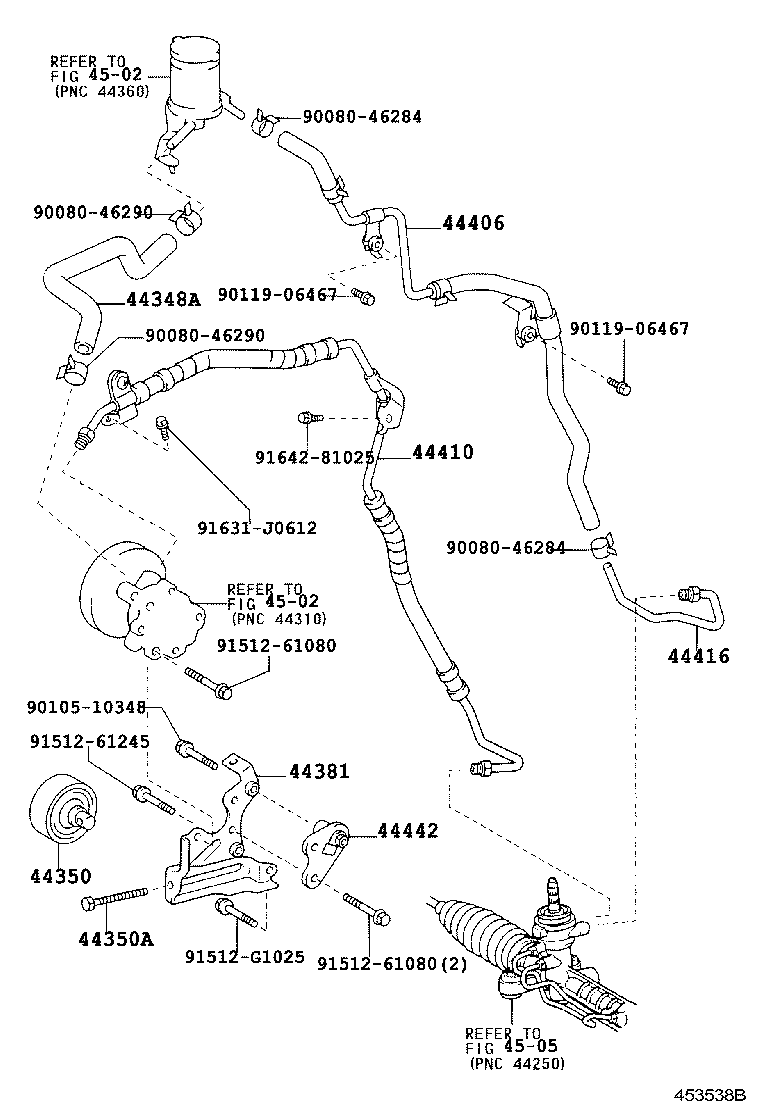

Click highlighted areas on diagram

diagram 44348A 44350 44350A 44381 44406 44410 44416 44442 4502 4502 4505 9008046284 9008046284 9008046290 9008046290 9010510348 9011906467 9011906467 9151261080 9151261080 9151261245 91512G1025 91631J0612 9164281025
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-05090

CDT250

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12052

CDT250

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CDT250

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-13010

CDT250

 1
44406 - TUBE SUB-ASSY, RETURN
44406-05210

CDT250

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-05270

CDT250..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-05020

ADT251,AZT25#,CDT250..RHD

 1
44442 - BRACKET, PUMP, REAR
44442-05020

CDT250

 1
Common parts
90080-46284
90080-46290
90105-10348
90119-06467
91512-61080
91512-61245
91512-G1025
91631-J0612
91642-81025
Linked diagrams
4502
4505
