CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )AZT250,CDT250..5F

Click highlighted areas on diagram

E354,E357

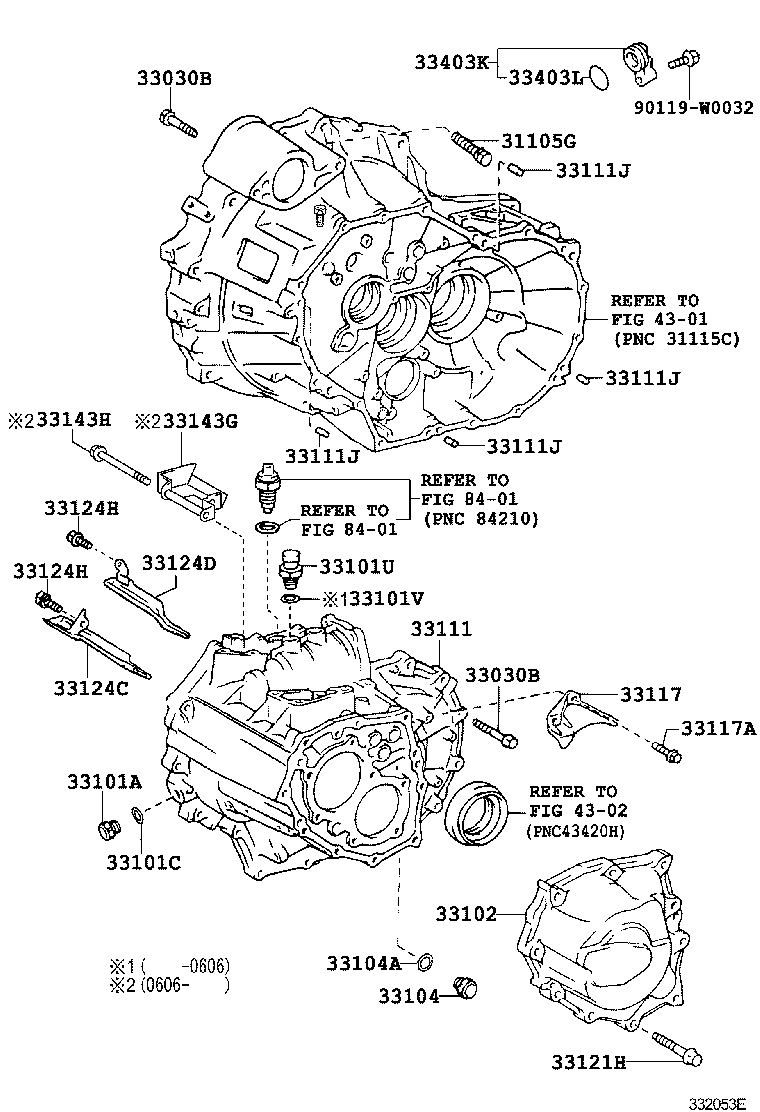

diagram 31105G 33030B 33030B 33101A 33101C 33101U 33101V 33102 33104 33104A 33111 33111J 33111J 33111J 33111J 33117 33117A 33121H 33124C 33124D 33124H 33124H 33143G 33143H 33403K 33403L 4301 4302 8401 8401 90119W0032
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

CDT250

*10-1.25PX43-26

 1
90105-W0062

CDT250

*10-1.25PX43-26

 1
90119-12168

CDT250

*12-1.25PX55-30

 3
90119-W0080

CDT250

*12-1.25PX55-30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

AZT250,CDT250..5F

*8-1.25PX45-27.5

 17
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

AZT250,CDT250..5F

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

ADT251,AZT250,CDT250..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZZT251..RHD..5F..ELEGT;ADT251,AZT250,CDT250..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03148

AZT250,CDT250..5F

 1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90430-18008

AZT250,CDT250..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12041

AZT250,CDT250..5F

 1
33102-12043

AZT250,CDT250..5F

 1
33102-12042

AZT250,CDT250..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ZZT251..RHD..5F..ELEGT;ADT251,AZT250,CDT250..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ZZT251..RHD..5F..ELEGT;ADT251,AZT250,CDT250..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20090

AZT250,CDT250..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ADT251,AZT250,CDT250,ZZT25#..MTM

L=23,OD=8

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ADT251,AZT250,CDT250,ZZT25#..MTM

L=23,OD=8

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ADT251,AZT250,CDT250,ZZT25#..MTM

L=23,OD=8

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ADT251,AZT250,CDT250,ZZT25#..MTM

L=23,OD=8

 4
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33107-20010

AZT250,CDT250..5F

 1
33117-20020

AZT250,CDT250..5F

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-W0036

AZT250,CDT250..5F

 2
91641-H0820

AZT250,CDT250..5F

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08630

AZT250,CDT250..5F

 10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-28050

AZT250,CDT250..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-28060

AZT250,CDT250..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08830

AZT250,CDT250..5F

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08830

AZT250,CDT250..5F

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20230

ADT251,AZT250,CDT250..MTM

 1
33403L - RING, O
96711-24018

ADT251,AZT250,CDT250..MTM

 1
