CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303-0604)1CDFTV..DCR

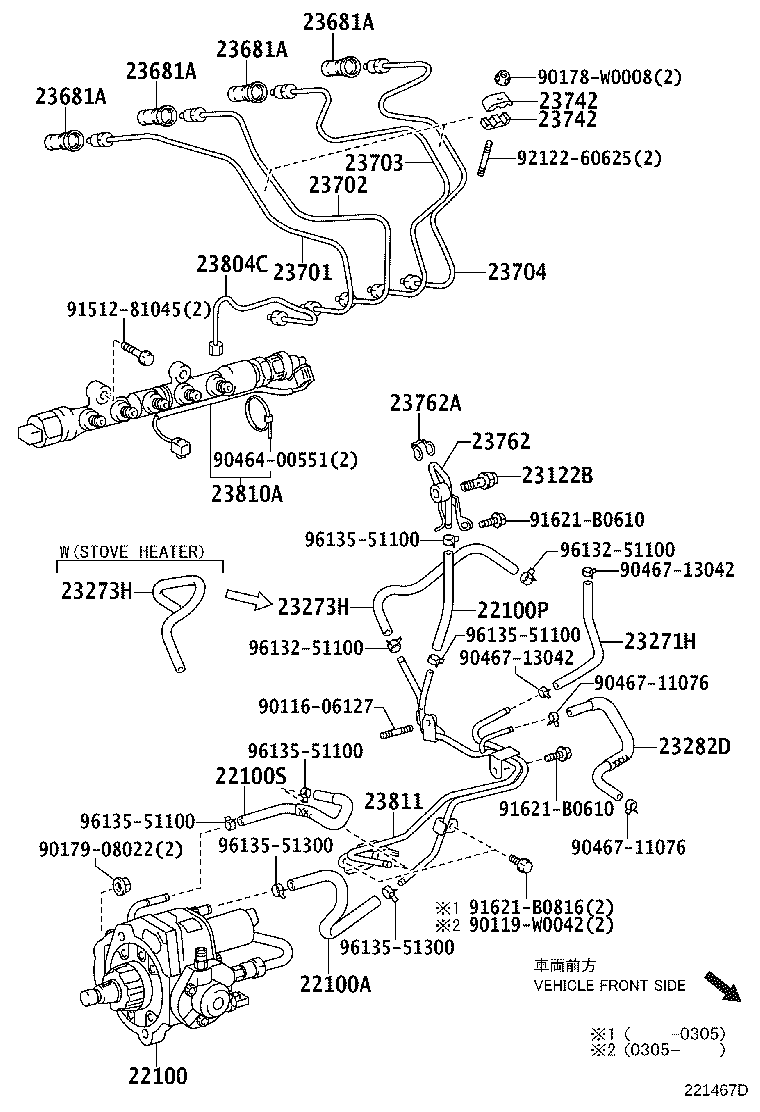

Click highlighted areas on diagram

diagram 22100 22100A 22100P 22100S 23122B 23271H 23273H 23273H 23282D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23742 23742 23762 23762A 23804C 23810A 23811 9011606127 90119W0042 90178W0008 9017908022 9046400551 9046711076 9046711076 9046713042 9046713042 9151281045 91621B0610 91621B0610 91621B0816 9212260625 9613251100 9613251100 9613551100 9613551100 9613551100 9613551100 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-0G010

1CDFTV..CDT250..DCR

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23273-27090

1CDFTV..CDT250..DCR

 1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
95334-06010

1CDFTV..CDT250..DCR

 1
95333-06020

1CDFTV..CDT250..LHD..WG..TEC;1CDFTV..CDT250..(LB,SED)..DCR;1CDFTV..CDT250..WG..(ELEGT,ENTRY)

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23274-27030

1CDFTV..CDT250

 1
23122B - VALVE, CHECK
23769-30010

1CDFTV..CDT250..DCR

 1
23271H - HOSE, FUEL, NO.1
23271-27100

1CDFTV..CDT250

 1
23273H - HOSE, FUEL, NO.2
23273-27070

1CDFTV..CDT250

 1
23273H - HOSE, FUEL, NO.2
23273-27070

1CDFTV..CDT250

 1
23282D - HOSE, FUEL, NO.4
23282-27020

1CDFTV..CDT250

 1
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT250

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT250

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT250

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT250

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-27020

1CDFTV..CDT250

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-27020

1CDFTV..CDT250

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-27020

1CDFTV..CDT250

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-27020

1CDFTV..CDT250

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT250

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT250

 4
23762 - PIPE, NOZZLE LEAKAGE, NO.2
23762-27041

1CDFTV..CDT250..DCR

 1
23762-27040

1CDFTV..CDT250..DCR

 1
23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2
90904-30012

1CDFTV..CDT250..DCR

 1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-27020

1CDFTV..CDT250

 1
23810A - RAIL ASSY, COMMON
23810-27030

1CDFTV..CDT250..DCR

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-27050

1CDFTV..CDT250

 1
Common parts
90116-06127
90119-W0042
90178-W0008
90179-08022
90464-00551
90467-11076
90467-13042
91512-81045
91621-B0610
91621-B0816
92122-60625
96132-51100
96135-51100
96135-51300
