CDT250R-ALMEYW (2003)
Toyota Avensis
Production
Mar 2003
-
Apr 2006
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0303-0604)1CDFTV

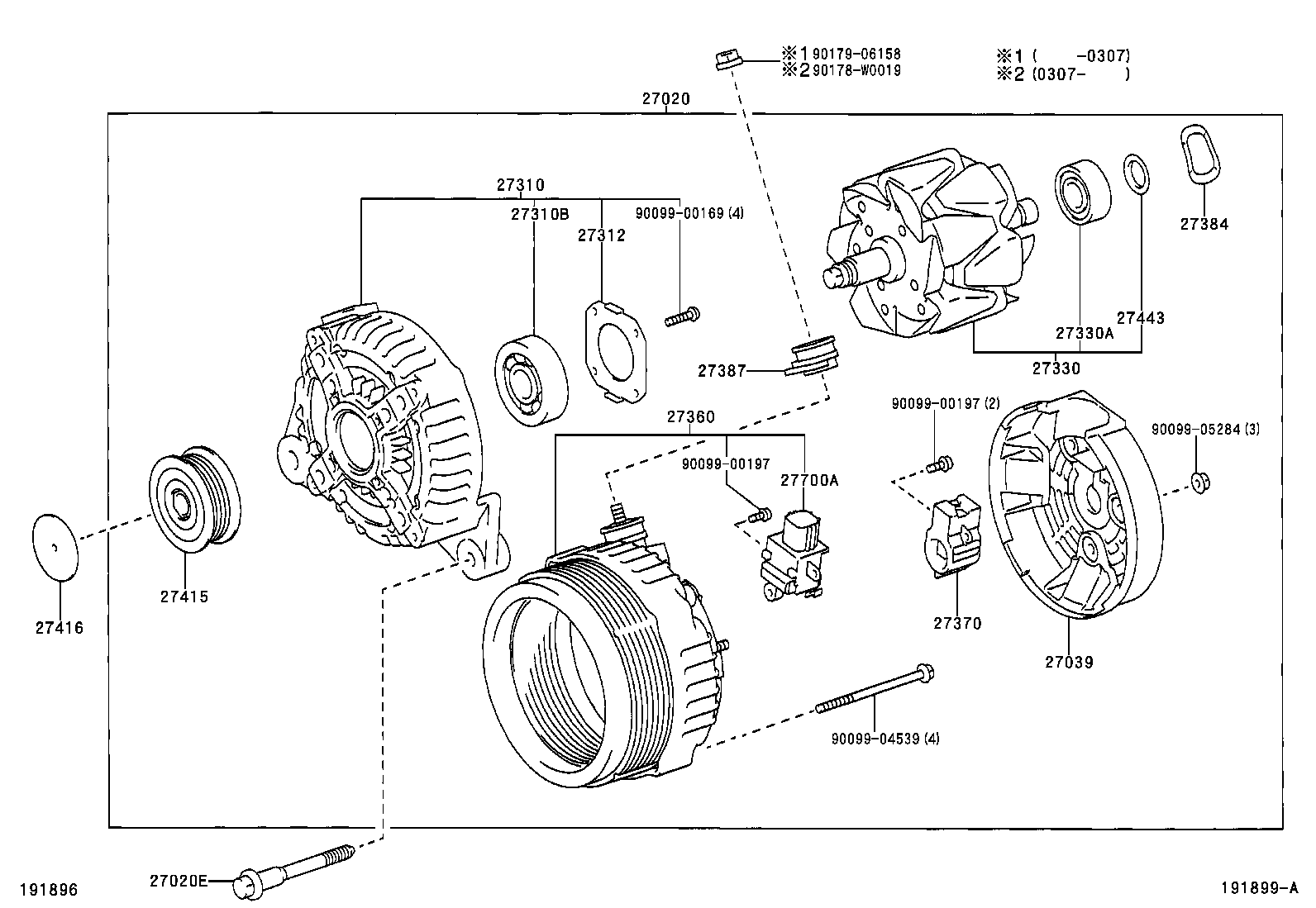

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-27090 |
1CDFTV..CDT250 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90901-05004 |
1CDFTV..CDT250 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
2AD#,1CDFTV..ADT251,CDT250 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-27050 |
1CDFTV..CDT250 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
1CDFTV..CDT250 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1AZ#,2AD#,2AZFSE,1CDFTV..ADT251,AZT25#,CDT250 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
2AD#,1CDFTV..ADT251,CDT250 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1CDFTV..CDT250 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-27060 |
1CDFTV..CDT250 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-27060 |
1CDFTV..CDT250 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2AD#,1CDFTV..ADT251,CDT250 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
2AD#,1CDFTV..ADT251,CDT250 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-27011 |
1CDFTV..CDT250 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-27010 |
2AD#..ADT251;1CDFTV..CDT250..DCR |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1CDFTV..CDT250 |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90178-W0019 | ||||
| 90179-06158 | ||||
