CDT250R-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303-0604)1CDFTV

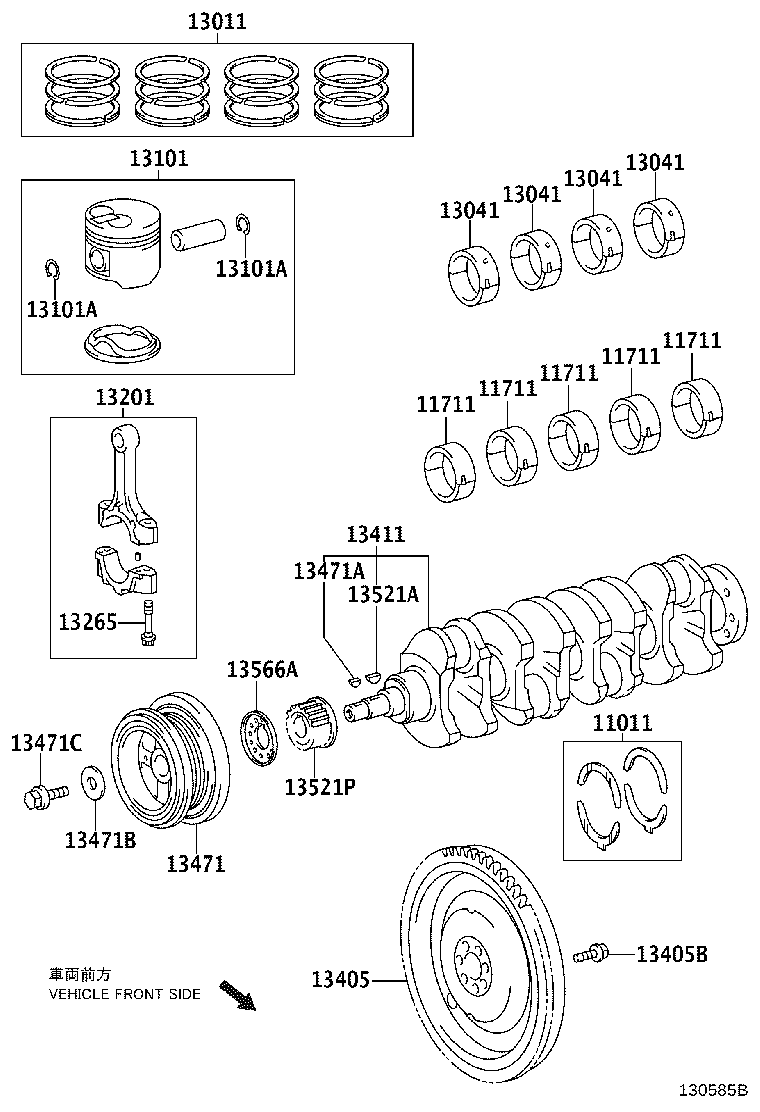

Click highlighted areas on diagram

diagram 11011 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13265 13405 13405B 13411 13471 13471A 13471B 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11013-64010

1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR

O/S 0.250

 1
11011-64010

1CDFTV..CDT250

STD

 1
11012-64010

1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR

O/S 0.125

 1
11711 - BEARING, CRANKSHAFT
11701-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 5
11701-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 5
11701-2702004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 5
11701-2702002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 5
11701-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 5
11701-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 5
11701-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 5
11701-2702003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 5
11701-2702001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 5
11701-2702005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 5
11701-2702101

1CDFTV..CDT250

MARK1,(J):REFER R/M

 5
11701-0G01103

1CDFTV..CDT250

MARK3,(L):REFER R/M

 5
11701-2702104

1CDFTV..CDT250

MARK4,(J):REFER R/M

 5
11701-2702102

1CDFTV..CDT250

MARK2,(J):REFER R/M

 5
11701-2702103

1CDFTV..CDT250

MARK3,(J):REFER R/M

 5
11701-0G01105

1CDFTV..CDT250

MARK5,(L):REFER R/M

 5
11701-0G01101

1CDFTV..CDT250

MARK1,(L):REFER R/M

 5
11701-0G01104

1CDFTV..CDT250

MARK4,(L):REFER R/M

 5
11701-2702105

1CDFTV..CDT250

MARK5,(J):REFER R/M

 5
11701-0G01102

1CDFTV..CDT250

MARK2,(L):REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 5
11701-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 5
11701-2702004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 5
11701-2702002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 5
11701-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 5
11701-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 5
11701-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 5
11701-2702003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 5
11701-2702001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 5
11701-2702005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 5
11701-2702101

1CDFTV..CDT250

MARK1,(J):REFER R/M

 5
11701-0G01103

1CDFTV..CDT250

MARK3,(L):REFER R/M

 5
11701-2702104

1CDFTV..CDT250

MARK4,(J):REFER R/M

 5
11701-2702102

1CDFTV..CDT250

MARK2,(J):REFER R/M

 5
11701-2702103

1CDFTV..CDT250

MARK3,(J):REFER R/M

 5
11701-0G01105

1CDFTV..CDT250

MARK5,(L):REFER R/M

 5
11701-0G01101

1CDFTV..CDT250

MARK1,(L):REFER R/M

 5
11701-0G01104

1CDFTV..CDT250

MARK4,(L):REFER R/M

 5
11701-2702105

1CDFTV..CDT250

MARK5,(J):REFER R/M

 5
11701-0G01102

1CDFTV..CDT250

MARK2,(L):REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 5
11701-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 5
11701-2702004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 5
11701-2702002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 5
11701-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 5
11701-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 5
11701-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 5
11701-2702003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 5
11701-2702001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 5
11701-2702005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 5
11701-2702101

1CDFTV..CDT250

MARK1,(J):REFER R/M

 5
11701-0G01103

1CDFTV..CDT250

MARK3,(L):REFER R/M

 5
11701-2702104

1CDFTV..CDT250

MARK4,(J):REFER R/M

 5
11701-2702102

1CDFTV..CDT250

MARK2,(J):REFER R/M

 5
11701-2702103

1CDFTV..CDT250

MARK3,(J):REFER R/M

 5
11701-0G01105

1CDFTV..CDT250

MARK5,(L):REFER R/M

 5
11701-0G01101

1CDFTV..CDT250

MARK1,(L):REFER R/M

 5
11701-0G01104

1CDFTV..CDT250

MARK4,(L):REFER R/M

 5
11701-2702105

1CDFTV..CDT250

MARK5,(J):REFER R/M

 5
11701-0G01102

1CDFTV..CDT250

MARK2,(L):REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 5
11701-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 5
11701-2702004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 5
11701-2702002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 5
11701-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 5
11701-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 5
11701-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 5
11701-2702003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 5
11701-2702001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 5
11701-2702005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 5
11701-2702101

1CDFTV..CDT250

MARK1,(J):REFER R/M

 5
11701-0G01103

1CDFTV..CDT250

MARK3,(L):REFER R/M

 5
11701-2702104

1CDFTV..CDT250

MARK4,(J):REFER R/M

 5
11701-2702102

1CDFTV..CDT250

MARK2,(J):REFER R/M

 5
11701-2702103

1CDFTV..CDT250

MARK3,(J):REFER R/M

 5
11701-0G01105

1CDFTV..CDT250

MARK5,(L):REFER R/M

 5
11701-0G01101

1CDFTV..CDT250

MARK1,(L):REFER R/M

 5
11701-0G01104

1CDFTV..CDT250

MARK4,(L):REFER R/M

 5
11701-2702105

1CDFTV..CDT250

MARK5,(J):REFER R/M

 5
11701-0G01102

1CDFTV..CDT250

MARK2,(L):REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 5
11701-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 5
11701-2702004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 5
11701-2702002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 5
11701-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 5
11701-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 5
11701-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 5
11701-2702003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 5
11701-2702001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 5
11701-2702005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 5
11701-2702101

1CDFTV..CDT250

MARK1,(J):REFER R/M

 5
11701-0G01103

1CDFTV..CDT250

MARK3,(L):REFER R/M

 5
11701-2702104

1CDFTV..CDT250

MARK4,(J):REFER R/M

 5
11701-2702102

1CDFTV..CDT250

MARK2,(J):REFER R/M

 5
11701-2702103

1CDFTV..CDT250

MARK3,(J):REFER R/M

 5
11701-0G01105

1CDFTV..CDT250

MARK5,(L):REFER R/M

 5
11701-0G01101

1CDFTV..CDT250

MARK1,(L):REFER R/M

 5
11701-0G01104

1CDFTV..CDT250

MARK4,(L):REFER R/M

 5
11701-2702105

1CDFTV..CDT250

MARK5,(J):REFER R/M

 5
11701-0G01102

1CDFTV..CDT250

MARK2,(L):REFER R/M

 5
13011 - RING SET, PISTON
13011-27040

1CDFTV..CDT250

STD

 1
13041 - BEARING, CONNECTING ROD
13041-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 4
13041-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 4
13041-2701003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 4
13041-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 4
13041-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 4
13041-2701005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 4
13041-2701001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 4
13041-2701002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 4
13041-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 4
13041-2701004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 4
13041-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 4
13041-2701003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 4
13041-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 4
13041-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 4
13041-2701005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 4
13041-2701001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 4
13041-2701002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 4
13041-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 4
13041-2701004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 4
13041-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 4
13041-2701003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 4
13041-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 4
13041-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 4
13041-2701005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 4
13041-2701001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 4
13041-2701002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 4
13041-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 4
13041-2701004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0G01001

1CDFTV..CDT250..DCR

MARK 1,(L):REFER R/M

 4
13041-0G01002

1CDFTV..CDT250..DCR

MARK 2,(L):REFER R/M

 4
13041-2701003

1CDFTV..CDT250..DCR

MARK 3,(J):REFER R/M

 4
13041-0G01005

1CDFTV..CDT250..DCR

MARK 5,(L):REFER R/M

 4
13041-0G01003

1CDFTV..CDT250..DCR

MARK 3,(L):REFER R/M

 4
13041-2701005

1CDFTV..CDT250..DCR

MARK 5,(J):REFER R/M

 4
13041-2701001

1CDFTV..CDT250..DCR

MARK 1,(J):REFER R/M

 4
13041-2701002

1CDFTV..CDT250..DCR

MARK 2,(J):REFER R/M

 4
13041-0G01004

1CDFTV..CDT250..DCR

MARK 4,(L):REFER R/M

 4
13041-2701004

1CDFTV..CDT250..DCR

MARK 4,(J):REFER R/M

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-0G010A0

1CDFTV..CDT250..DCR

STD,MARK A,REFER REPAIR MANUAL

 4
13101-0G010C0

1CDFTV..CDT250..DCR

STD,MARK C,REFER REPAIR MANUAL

 4
13101-0G010B0

1CDFTV..CDT250..DCR

STD,MARK B,REFER REPAIR MANUAL

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013

1CDFTV..CDT250

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-32013

1CDFTV..CDT250

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-27011A0

1CDFTV..CDT250..DCR

MARK A,MARK A

 4
13201-27011B0

1CDFTV..CDT250..DCR

MARK B,MARK A

 4
13201-27011C0

1CDFTV..CDT250..DCR

MARK C,MARK A

 4
13265 - BOLT, CONNECTING ROD
13265-46020

1CDFTV..CDT250

 8
13405 - FLYWHEEL SUB-ASSY
13450-0G011

1CDFTV..CDT250

 1
13450-0G010

1CDFTV..CDT250

 1
13405B - BOLT, FLYWHEEL SETTING
90148-10004

1CDFTV..CDT250

 8
13411 - CRANKSHAFT
13401-27011

1CDFTV..CDT250

 1
13471 - PULLEY, CRANKSHAFT
13470-0G010

1CDFTV..CDT250..DCR

(L)

 1
13470-27010

1CDFTV..CDT250

(J)

 1
13470-0G011

1CDFTV..CDT250

(L)

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05007

1CDFTV..CDT250

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90560-16026

1CDFTV..CDT250

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16065

1CDFTV..CDT250

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-06001

1CDFTV..CDT250

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-27010

1CDFTV..CDT250

 1
13566A - GUIDE, TIMING BELT
13566-64011

1CDFTV..CDT250

 1
