CDT250R-ALMEYW (2003)
Toyota Avensis
Production
Mar 2003
-
Apr 2006
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0303-0604)1CDFTV

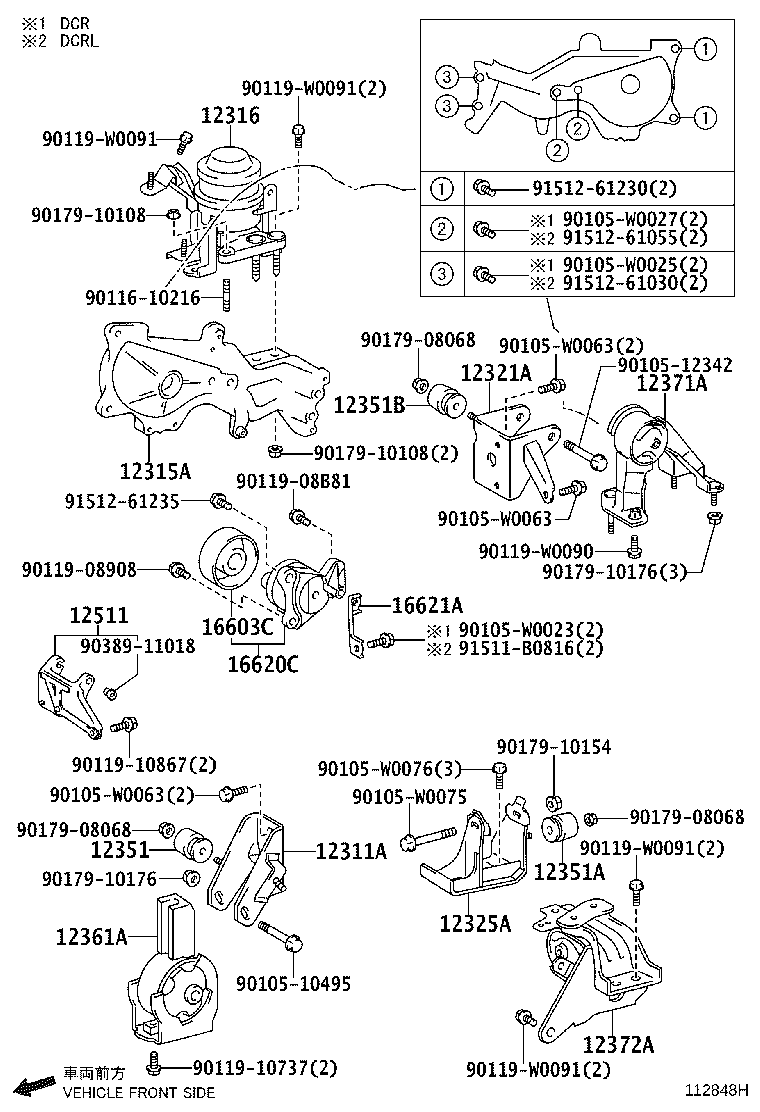

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12305-27060 |
1CDFTV..CDT250 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0G021 |
1CDFTV..CDT250 |
1 | ||
| 12321-0G020 |
1CDFTV..CDT250 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-0D020 |
1CDFTV..CDT250 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-0D030 |
1CDFTV..CDT250 |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0D020 |
1CDFTV..CDT250 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12361-0G030 |
1CDFTV..CDT250 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0G010 |
1CDFTV..CDT250 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-27010 |
1CDFTV..CDT250 (J) |
1 | ||
| 12511-0G010 |
1CDFTV..CDT250..DCR (L) |
1 | ||
| 16603C - PULLEY SUB-ASSY, IDLER | ||||
| 16603-27010 |
1CDFTV..CDT250..DCR |
1 | ||
| 16603-27011 |
1CDFTV..CDT250..DCR |
1 | ||
| 16620C - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-27020 |
1CDFTV..CDT250..DCR |
1 | ||
| 16620-27021 |
1CDFTV..CDT250..DCR |
1 | ||
| 16621A - BRACKET, V-RIBBED BELT TENSIONER | ||||
| 16621-0G010 |
1CDFTV..CDT250..DCR (L) |
1 | ||
| 16621-27010 |
1CDFTV..CDT250 (J) |
1 | ||
| Common parts | ||||
| 90105-10495 | ||||
| 90105-12342 | ||||
| 90105-W0023 | ||||
| 90105-W0025 | ||||
| 90105-W0027 | ||||
| 90105-W0063 | ||||
| 90105-W0075 | ||||
| 90105-W0076 | ||||
| 90116-10216 | ||||
| 90119-08908 | ||||
| 90119-08B81 | ||||
| 90119-10737 | ||||
| 90119-10867 | ||||
| 90119-W0090 | ||||
| 90119-W0091 | ||||
| 90179-08068 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10176 | ||||
| 90389-11018 | ||||
| 91511-B0816 | ||||
| 91512-61030 | ||||
| 91512-61055 | ||||
| 91512-61230 | ||||
| 91512-61235 | ||||
