CDT250R-ALMEYW (2003)
Toyota Avensis
(0303- )1CDFTV

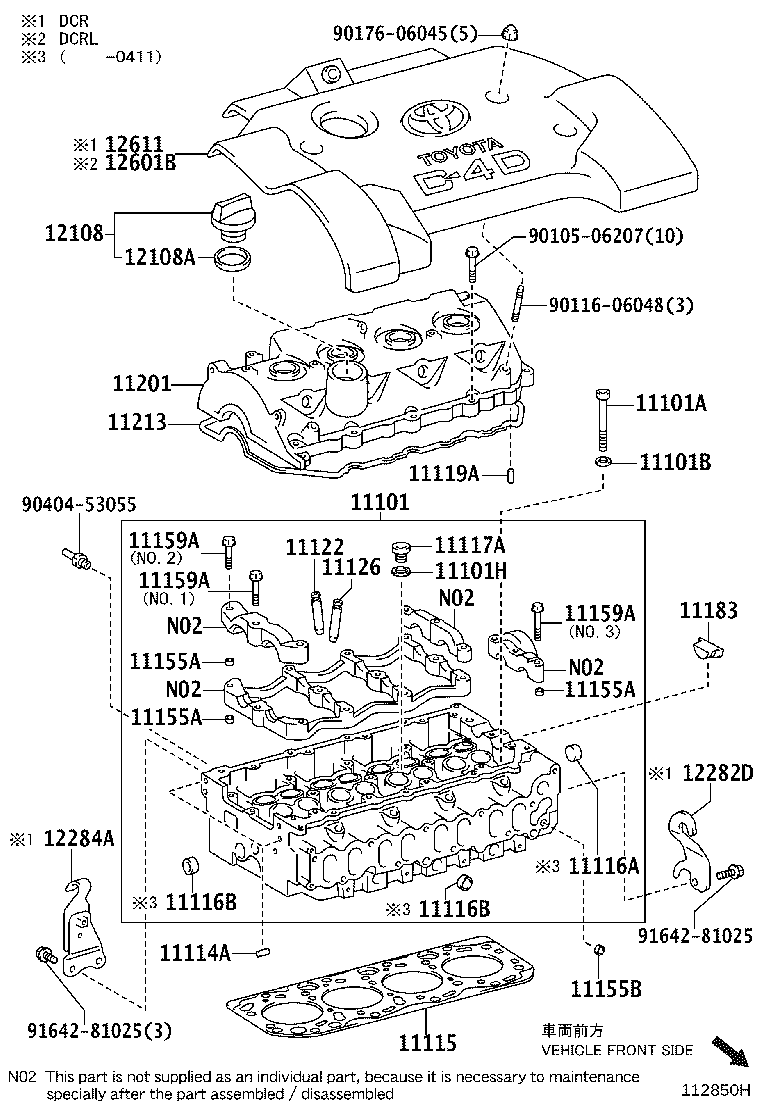

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-27050 |
1CDFTV..CDT250..DCR |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02136 |
1CDFTV..CDT250 *11-1.25PX160-60 |
8 | ||
| 90910-02139 |
1CDFTV..CDT250 *11-1.25PX104-63 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11016 |
1CDFTV..CDT250 |
18 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14008 |
1CDFTV..CDT250 |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
1CDFTV..CDT250 L=11,OD=6 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-27011C0 |
1CDFTV..CDT250 MARK C,MARK A |
1 | ||
| 11115-27011B0 |
1CDFTV..CDT250 MARK B,MARK A |
1 | ||
| 11115-27011A0 |
1CDFTV..CDT250 MARK A,MARK A |
1 | ||
| 11115-27011D0 |
1CDFTV..CDT250 MARK D,MARK A |
1 | ||
| 11115-27011E0 |
1CDFTV..CDT250 MARK E,MARK A |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1CDFTV..CDT250 |
3 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
1CDFTV..CDT250 L=16,OD=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-27010 |
1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR O/S 0.05 |
8 | ||
| 11122-27010 |
1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-27010 |
1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR STD |
8 | ||
| 11123-27010 |
1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR O/S 0.05 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1CDFTV..CDT250 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1CDFTV..CDT250 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1CDFTV..CDT250 |
12 | ||
| 11155B - PIN, RING | ||||
| 90253-13008 |
1CDFTV..CDT250 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91511-C0835 |
1CDFTV..CDT250 NO.3 |
3 | ||
| 90119-08B76 |
1CDFTV..CDT250 NO.1 |
4 | ||
| 91511-80860 |
1CDFTV..CDT250 NO.2 |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91511-C0835 |
1CDFTV..CDT250 NO.3 |
3 | ||
| 90119-08B76 |
1CDFTV..CDT250 NO.1 |
4 | ||
| 91511-80860 |
1CDFTV..CDT250 NO.2 |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91511-C0835 |
1CDFTV..CDT250 NO.3 |
3 | ||
| 90119-08B76 |
1CDFTV..CDT250 NO.1 |
4 | ||
| 91511-80860 |
1CDFTV..CDT250 NO.2 |
8 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
1CDFTV..CDT250 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-27031 |
1CDFTV..CDT250..DCR |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0G010 |
1CDFTV..CDT250..DCR (L) |
1 | ||
| 11213-27010 |
1CDFTV..CDT250..DCR (J) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
1CDFTV..CDT250 (J) |
1 | ||
| 12180-0N010 |
1CDFTV..CDT250..DCR (L) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1CDFTV..CDT250 (J) |
1 | ||
| 90080-43020 |
1CDFTV..CDT250..DCR (L) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-27060 |
1CDFTV..CDT250..DCR |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-27020 |
1CDFTV..CDT250..DCR |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0G020 |
1CDFTV..CDT250..DCR |
1 | ||
| Common parts | ||||
| 90105-06207 | ||||
| 90116-06048 | ||||
| 90176-06045 | ||||
| 90404-53055 | ||||
| 91642-81025 | ||||
