CDT250L-ALMEYW (2003)

Toyota Avensis

Production Mar 2003 - Apr 2006
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0303-0604)CDT250..LHD

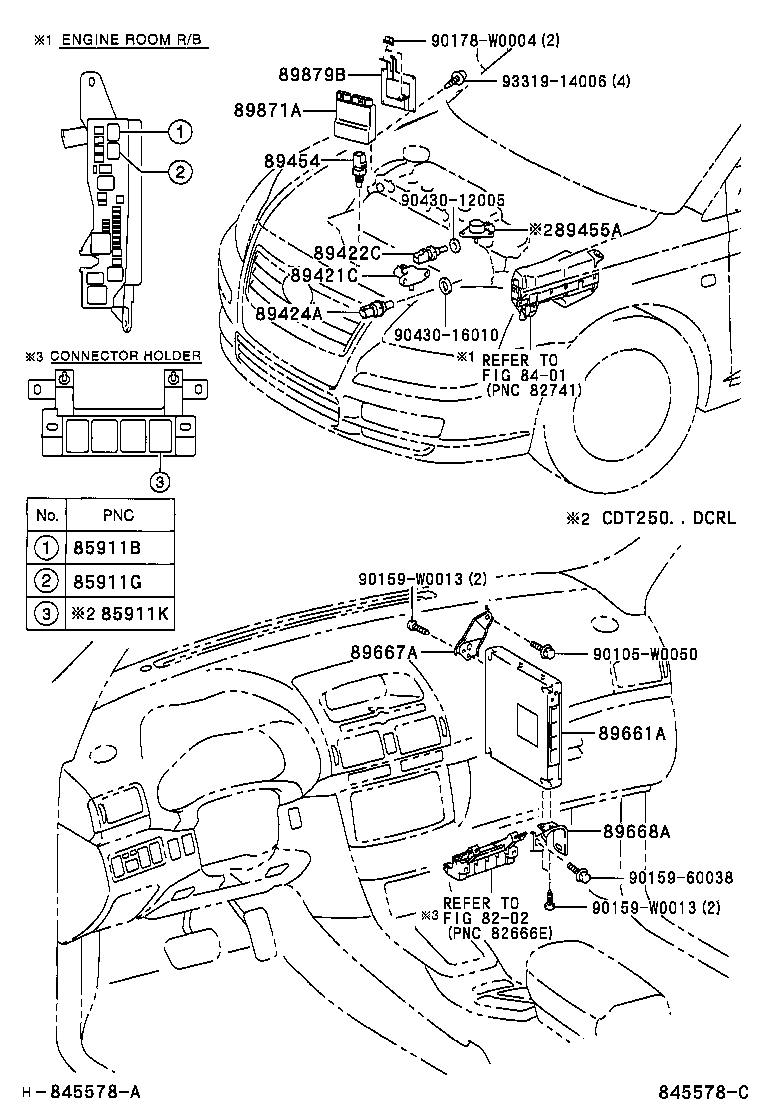

Click highlighted areas on diagram

diagram 8202 8401 85911B 85911G 85911K 89421C 89422C 89424A 89454 89455A 89661A 89667A 89668A 89871A 89879B 90105W0050 9015960038 90159W0013 90159W0013 90178W0004 9043012005 9043016010 9331914006
Part # Description Qty Price
85911B - RELAY, COMPUTER (FOR DIESEL TURBO)
90080-87019

ADT251,CDT250

 1
85911G - RELAY, INJECTOR DRIVER
90080-87019

ADT251,CDT250

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20210

CDT250

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

CDT250

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

ADT251,CDT250

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-20010

CDT250

 1
89454-60010

CDT250

 1
89661A - COMPUTER, ENGINE CONTROL
89661-05690

CDT250..DCR

 1
89661-05691

CDT250

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-05080

ADT251,CDT250..LHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-05110

ADT251,CDT250..LHD

 1
89871A - DRIVER, INJECTOR
89871-20050

CDT250

 1
89879B - BRACKET, INJECTOR DRIVER
89879-20130

CDT250

 1
Common parts
90105-W0050
90159-60038
90159-W0013
90178-W0004
90430-12005
90430-16010
93319-14006
Linked diagrams
8202
8401
