CDT220R-ALMEYW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

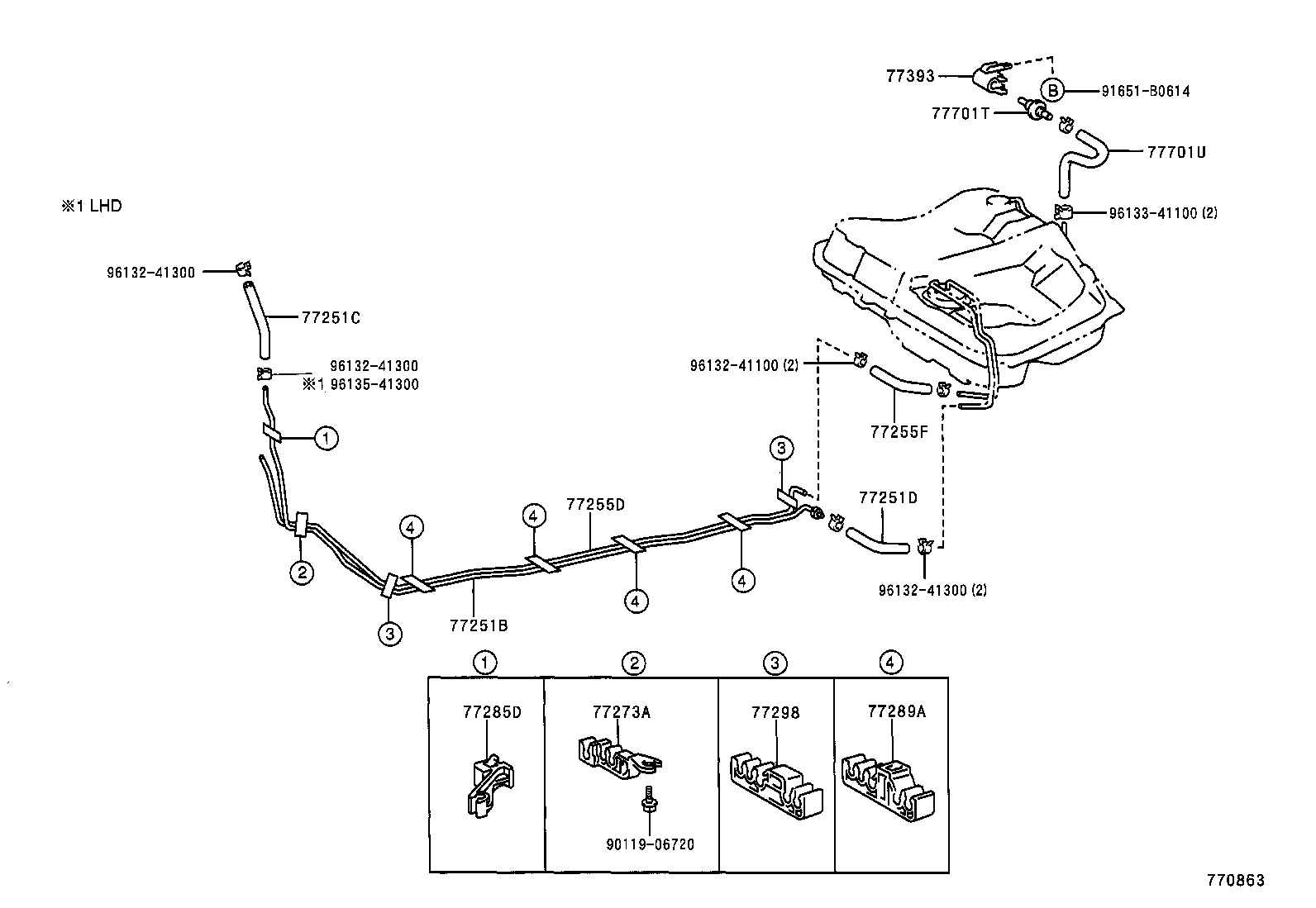

ILLUST NO. 2 OF 2(0007- )CDT220

Click highlighted areas on diagram

diagram 77251B 77251C 77251D 77255D 77255F 77273A 77285D 77289A 77298 77393 77701T 77701U 9011906720 91651B0614 9613241100 9613241300 9613241300 9613241300 9613341100 9613541300
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-05110

CDT220,CT220..RHD

 1
77251-05160

CDT220..RHD

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

CDT220,CT220

*H,L=150,ID=7.6

 1
77255D - TUBE, FUEL RETURN
77255-05100

CDT220,CT220..RHD

 1
77255-05120

CDT220..RHD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

CDT220,CT220

*H,L=160

 1
77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6
77273-20050

AZT220,CDT220,ZZT22#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-20120

CDT220,CT220

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-20070

AZT220,CDT220,ZZT22#

 4
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-20090

AZT220,CDT220,ZZT22#

 2
77298-20050

AT22#,CDT220,CT220,ST220

 3
77393 - PROTECTOR, CHECK VALVE
77393-20010

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

CDT220,CT220;AT220..LHD..SED..TERRA

*H,L=220

 1
Common parts
90119-06720
91651-B0614
96132-41100
96132-41300
96133-41100
96135-41300
