CDT220R-AEMEYW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )

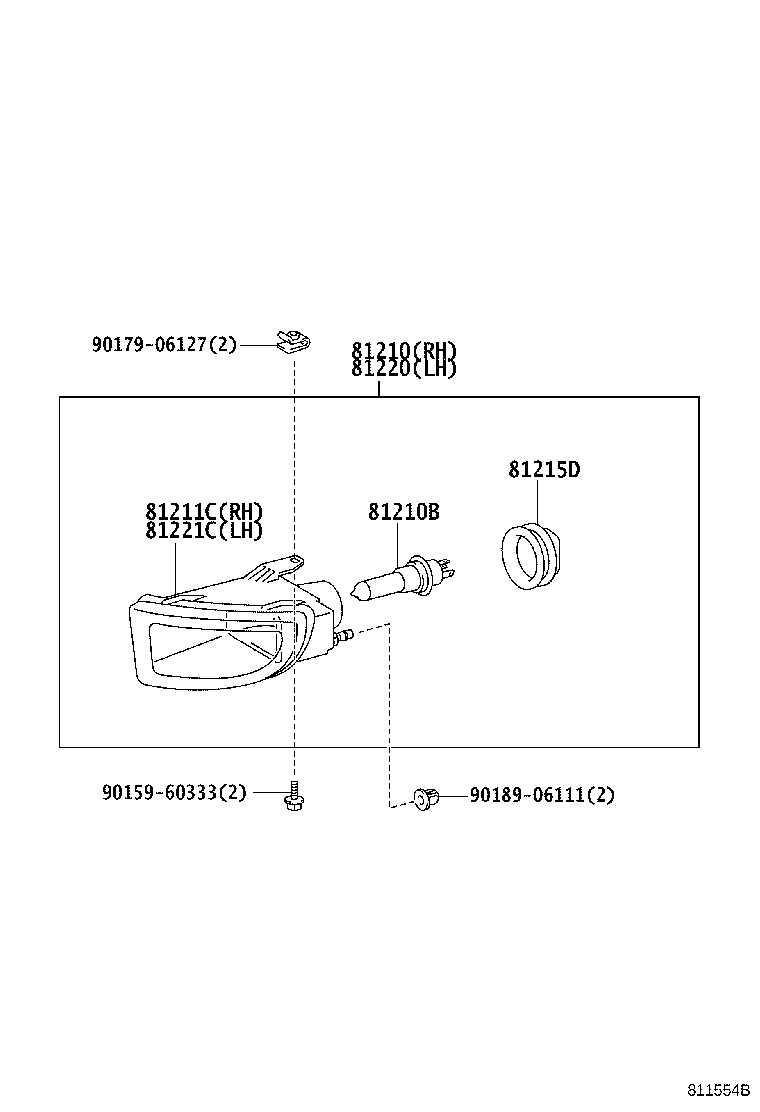

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81215D 81220 81221C 9015960333 9017906127 9018906111
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-05050

AZT220,CDT220,ST220,ZZT22#

 1
81210-05040

AT22#,CDT220,CT220,ST220

 1
81210B - BULB, FOG LAMP
90080-81067

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 55W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-05040

AT22#,CDT220,CT220,ST220

 1
81211-05050

AZT220,CDT220,ST220,ZZT22#

 1
81215D - FOG LAMP SOCKET PLUG ASSY
81215-05050

AZT220,CDT220,ST220,ZZT22#

 2
81215-05040

AT22#,CDT220,CT220,ST220

 2
81220 - LAMP ASSY, FOG, LH
81220-05050

AZT220,CDT220,ST220,ZZT22#

 1
81220-05040

AT22#,CDT220,CT220,ST220

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-05050

AZT220,CDT220,ST220,ZZT22#

 1
81221-05040

AT22#,CDT220,CT220,ST220

 1
Common parts
90159-60333
90179-06127
90189-06111
