CDT220L-AWMEYW (1999)
Toyota Avensis

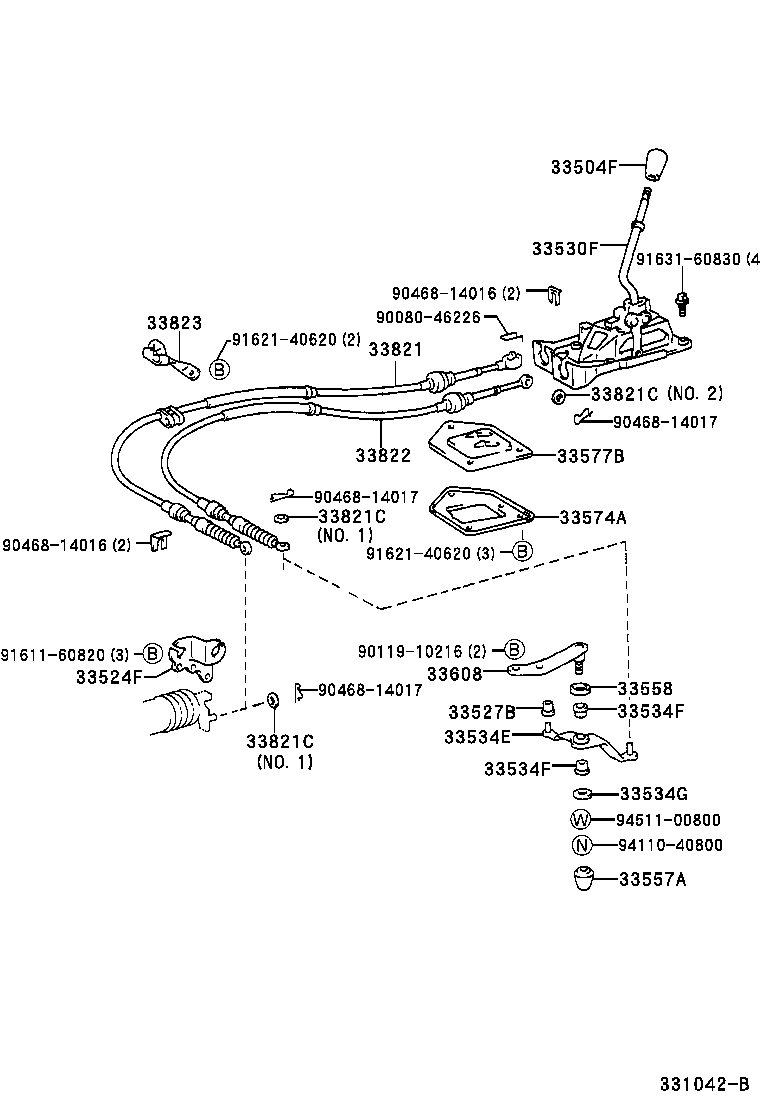

(9908-0007)CDT220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-05020C0 |
AZT220,CDT220,ST220,ZZT22#..MTM..SOL LEATHER,BLACK,TRIM1#,6# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-20020 |
CDT220 |
1 | ||
| 33524-28020 |
CDT220 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-05060 |
CDT220,ZZT22#..LHD..MTM |
1 | ||
| 33530-05040 |
AT22#,CDT220,CT220,ST220..LHD..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-28090 |
CDT220 |
1 | ||
| 33534-12091 |
CDT220 |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT22#,CDT220..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-05010 |
CDT220,ST220..MTM |
1 | ||
| 33577-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12031 |
CDT220 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-05100 |
CDT220 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-05060 |
CDT220 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-05030 |
AT22#,CDT220,CT220,ST220..MTM |
1 | ||
| Common parts | ||||
| 90080-46226 | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60820 | ||||
| 91621-40620 | ||||
| 91631-60830 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

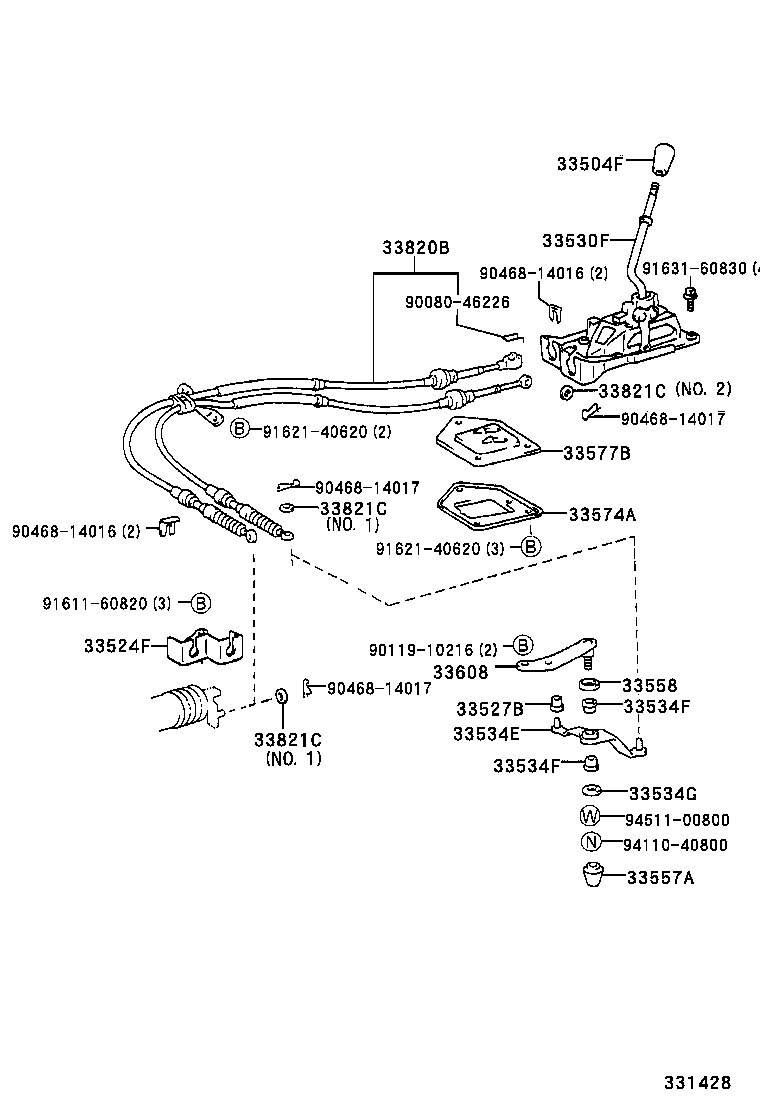

(0007- )CDT220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-05020C0 |
AZT220,CDT220,ST220,ZZT22#..MTM..SOL LEATHER,BLACK,TRIM1#,6# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-20020 |
CDT220 |
1 | ||
| 33524-28020 |
CDT220 |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-05060 |
CDT220,ZZT22#..LHD..MTM |
1 | ||
| 33530-05040 |
AT22#,CDT220,CT220,ST220..LHD..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-28090 |
CDT220 |
1 | ||
| 33534-12091 |
CDT220 |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT22#,AZT220,CDT220,CT220,ST220..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT22#,CDT220..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-05010 |
CDT220,ST220..MTM |
1 | ||
| 33577-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12031 |
CDT220 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-05152 |
CDT220 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM OD=30,NO.1 |
2 | ||
| 90201-10042 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM NO.2 |
1 | ||
| Common parts | ||||
| 90080-46226 | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60820 | ||||
| 91621-40620 | ||||
| 91631-60830 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
