CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

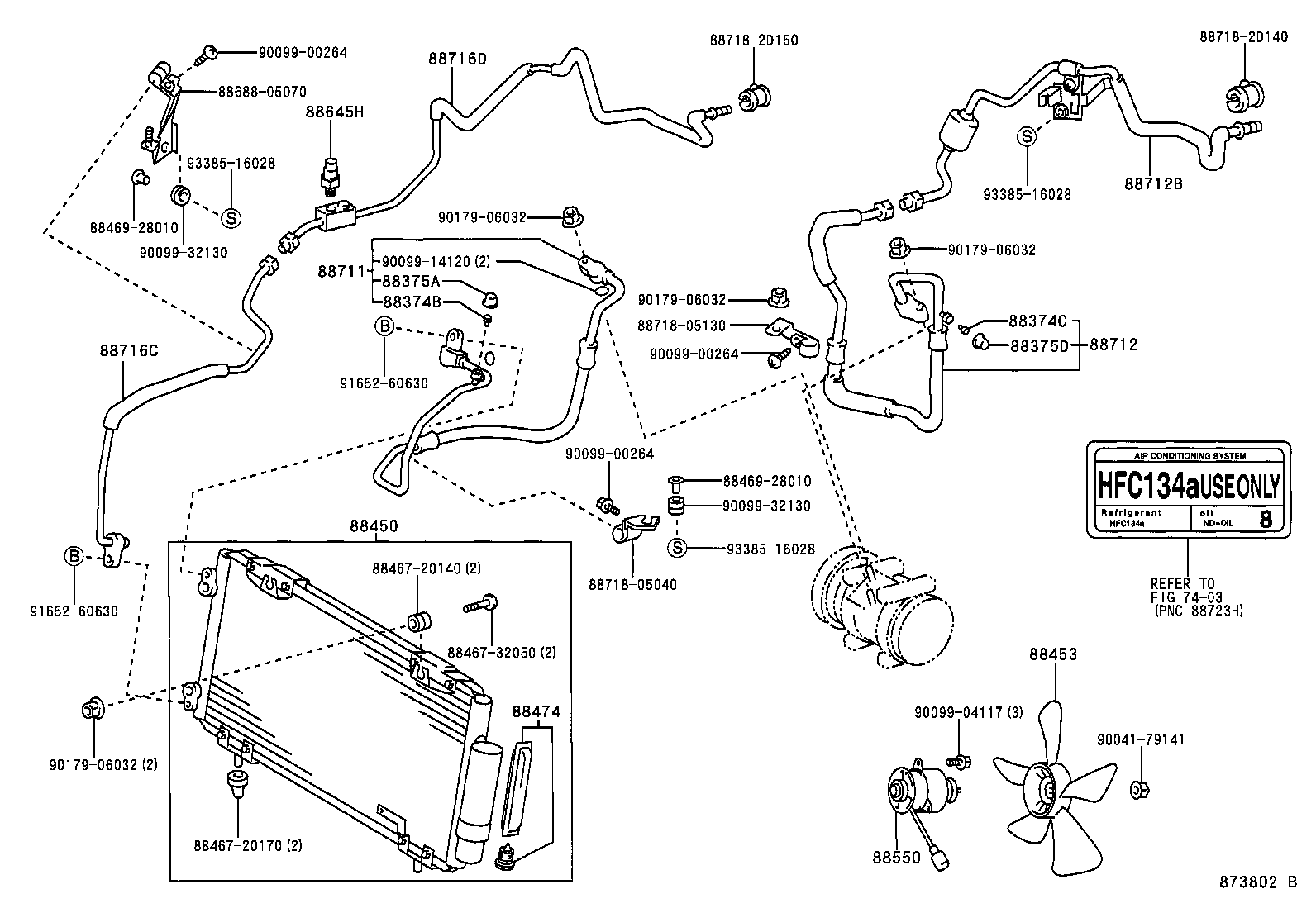

ILLUST NO. 1 OF 2(9908-0007)CDT220..LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 88374B 88374C 88375A 88375D 88450 88453 8846720140 8846720170 8846732050 8846928010 8846928010 88474 88550 88645H 8868805070 88711 88712 88712B 88716C 88716D 8871805040 8871805130 887182D140 887182D150 9004179141 9009900264 9009900264 9009900264 9009904117 9009914120 9009932130 9009932130 9017906032 9017906032 9017906032 9017906032 9165260630 9165260630 9338516028 9338516028 9338516028
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374-30010

CDT220,CT220..DCR,TD

DEALER OPTION

 2
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AZT220,CDT220,ST220,ZZT22#

 1
88375-30280

CDT220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05070

AZT220,CDT220,ST220,ZZT22#..LHD

 1
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-27010

CDT220

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-11030

CDT220,CT220

 1
16363-27010

CDT220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05070

CDT220..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05130

CDT220..LHD

MAKER OPTION

 1
88712-05160

CDT220..LHD

DEALER OPTION

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88710-05160

CDT220..LHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05160

CDT220..LHD

MAKER OPTION

 1
88716-05210

CDT220..LHD

DEALER OPTION

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-05200

CDT220..LHD

 1
Common parts
88467-20140
88467-20170
88467-32050
88469-28010
88688-05070
88718-05040
88718-05130
88718-2D140
88718-2D150
90041-79141
90099-00264
90099-04117
90099-14120
90099-32130
90179-06032
91652-60630
93385-16028
Linked diagrams
7403

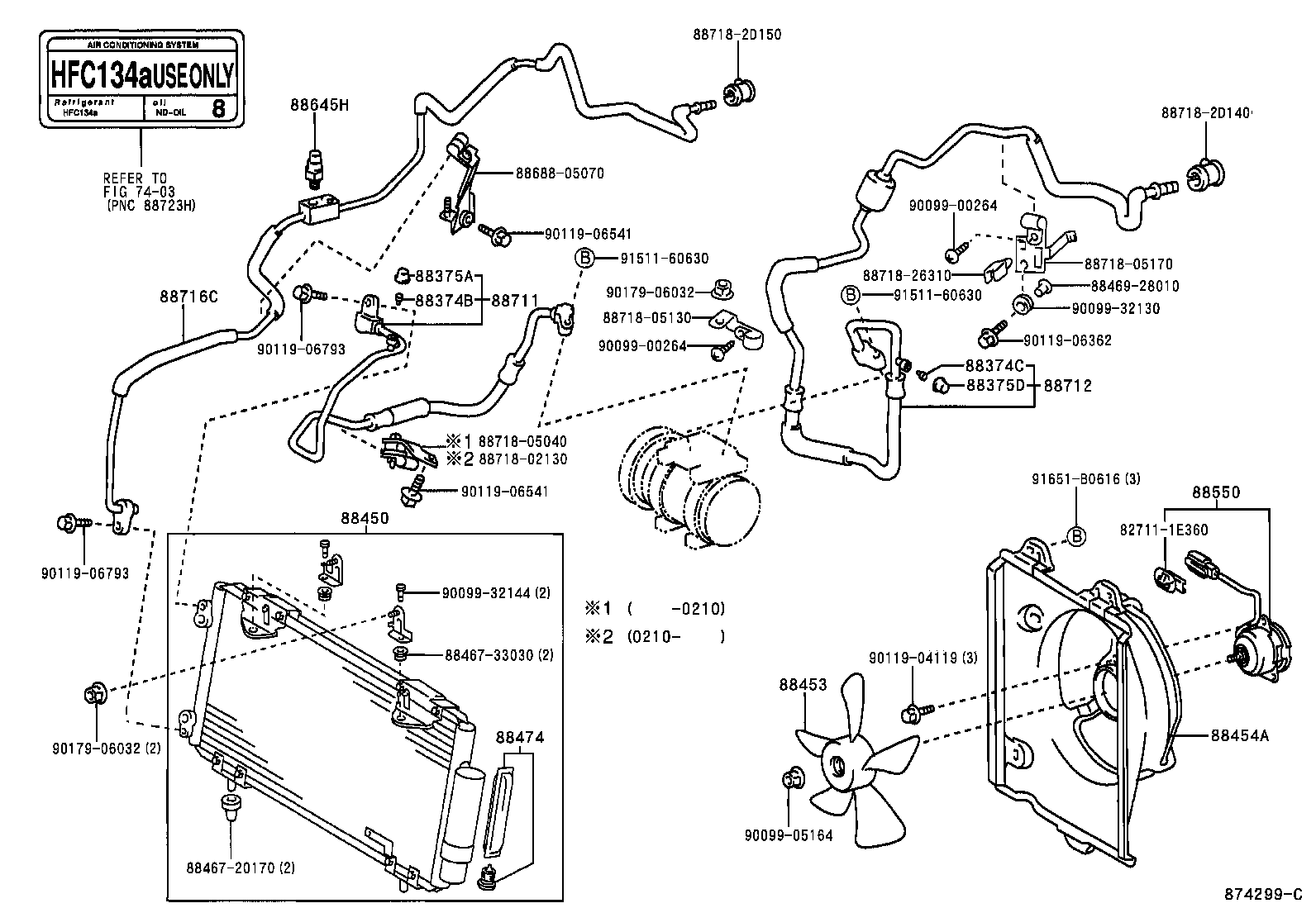

ILLUST NO. 1 OF 2(0007- )CDT220..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 7403 827111E360 88374B 88374C 88375A 88375D 88450 88453 88454A 8846720170 8846733030 8846928010 88474 88550 88645H 8868805070 88711 88712 88716C 8871802130 8871805040 8871805130 8871805170 8871826310 887182D140 887182D150 9009900264 9009900264 9009905164 9009932130 9009932144 9011904119 9011906362 9011906541 9011906541 9011906793 9011906793 9017906032 9017906032 9151160630 9151160630 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374-30010

CDT220,CT220..DCR,TD

DEALER OPTION

 2
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AZT220,CDT220,ST220,ZZT22#

 1
88375-30280

CDT220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05070

AZT220,CDT220,ST220,ZZT22#..LHD

 1
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-27010

CDT220

 1
88454A - SHROUD, FAN
16712-27020

CDT220

 1
16712-27021

CDT220

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-11030

CDT220,CT220

 1
16363-27010

CDT220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05070

CDT220..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05130

CDT220..LHD

MAKER OPTION

 1
88712-05160

CDT220..LHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05160

CDT220..LHD

MAKER OPTION

 1
88716-05210

CDT220..LHD

DEALER OPTION

 1
Common parts
82711-1E360
88467-20170
88467-33030
88469-28010
88688-05070
88718-02130
88718-05040
88718-05130
88718-05170
88718-26310
88718-2D140
88718-2D150
90099-00264
90099-05164
90099-32130
90099-32144
90119-04119
90119-06362
90119-06541
90119-06793
90179-06032
91511-60630
91651-B0616
Linked diagrams
7403

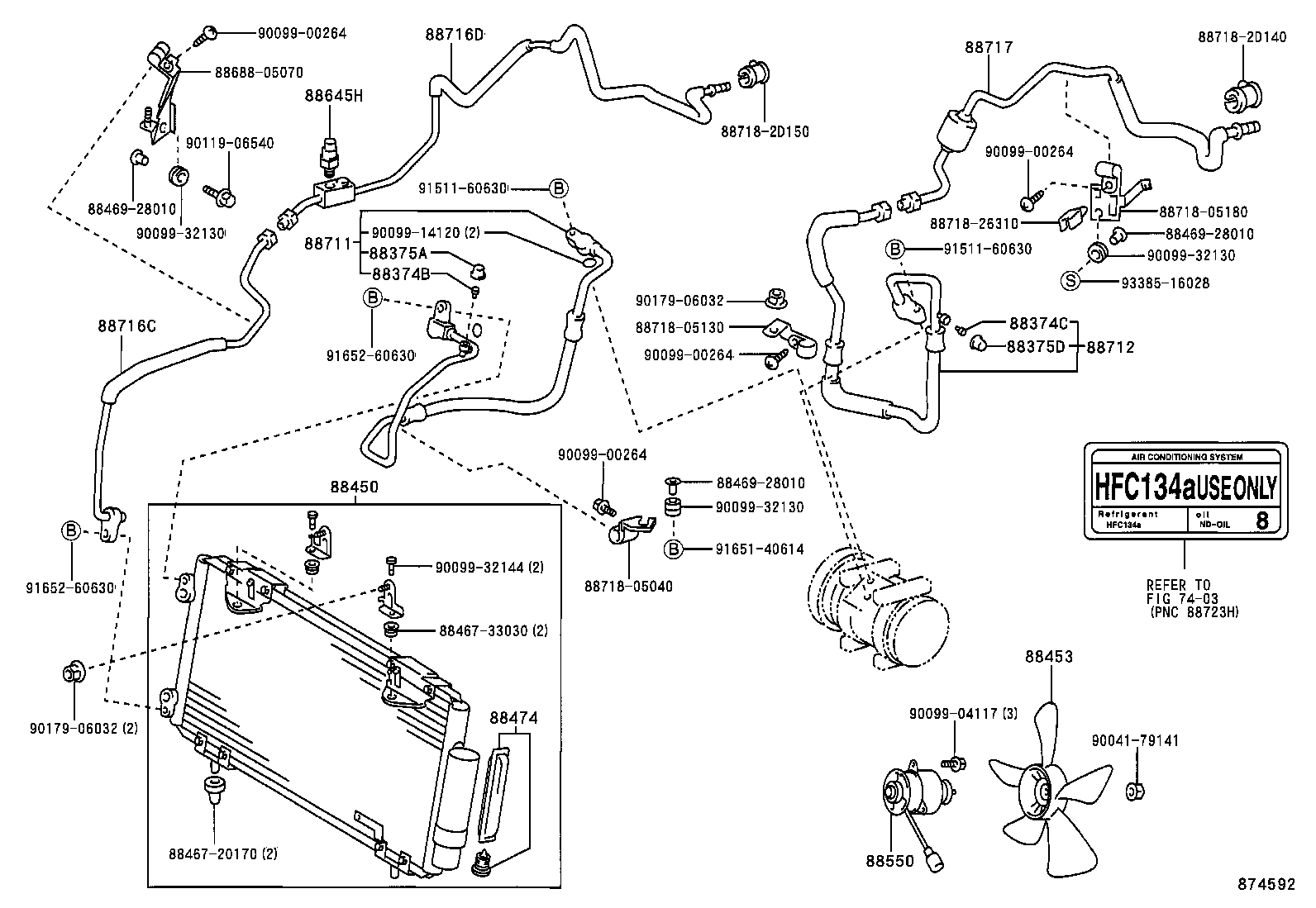

ILLUST NO. 1 OF 2(0007- )CDT220..LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 88374B 88374C 88375A 88375D 88450 88453 8846720170 8846733030 8846928010 8846928010 8846928010 88474 88550 88645H 8868805070 88711 88712 88716C 88716D 88717 8871805040 8871805130 8871805180 8871826310 887182D140 887182D150 9004179141 9009900264 9009900264 9009900264 9009900264 9009904117 9009914120 9009932130 9009932130 9009932130 9009932144 9011906540 9017906032 9017906032 9151160630 9151160630 9165140614 9165260630 9165260630 9338516028
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374-30010

CDT220,CT220..DCR,TD

DEALER OPTION

 2
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AZT220,CDT220,ST220,ZZT22#

 1
88375-30280

CDT220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05070

AZT220,CDT220,ST220,ZZT22#..LHD

 1
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-27010

CDT220

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-11030

CDT220,CT220

 1
16363-27010

CDT220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05070

CDT220..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05130

CDT220..LHD

MAKER OPTION

 1
88712-05160

CDT220..LHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05160

CDT220..LHD

MAKER OPTION

 1
88716-05210

CDT220..LHD

DEALER OPTION

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-05200

CDT220..LHD

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-05140

CDT220..LHD

 1
Common parts
88467-20170
88467-33030
88469-28010
88688-05070
88718-05040
88718-05130
88718-05180
88718-26310
88718-2D140
88718-2D150
90041-79141
90099-00264
90099-04117
90099-14120
90099-32130
90099-32144
90119-06540
90179-06032
91511-60630
91651-40614
91652-60630
93385-16028
