CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )CDT220

Click highlighted areas on diagram

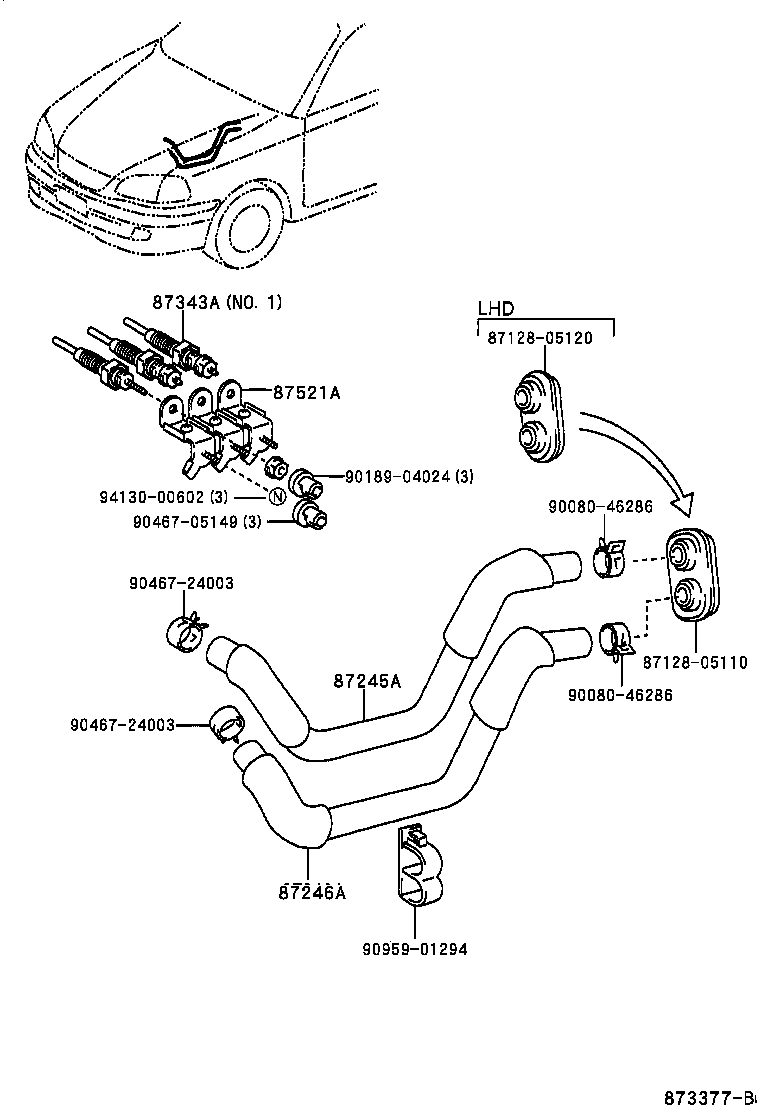

diagram 8712805110 8712805120 87245A 87246A 87343A 87521A 9008046286 9008046286 9018904024 9046705149 9046724003 9046724003 9095901294 9413000602
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-05310

CDT220..LHD

W(STOVE HEATER)

 1
87245-05290

CDT220..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-05300

CDT220..LHD

 1
87343A - PLUG, COMBUSTION HEATER GLOW
87343-20010

CDT220..LHD

NO.1

 3
87343-20010

CDT220

NO.1

 3
87343-05010

CDT220..LHD

NO.2

 1
87521A - BRACKET, ENGINE BLOCK HEATER
87521-20050

CDT220

 1
Common parts
87128-05110
87128-05120
90080-46286
90189-04024
90467-05149
90467-24003
90959-01294
94130-00602

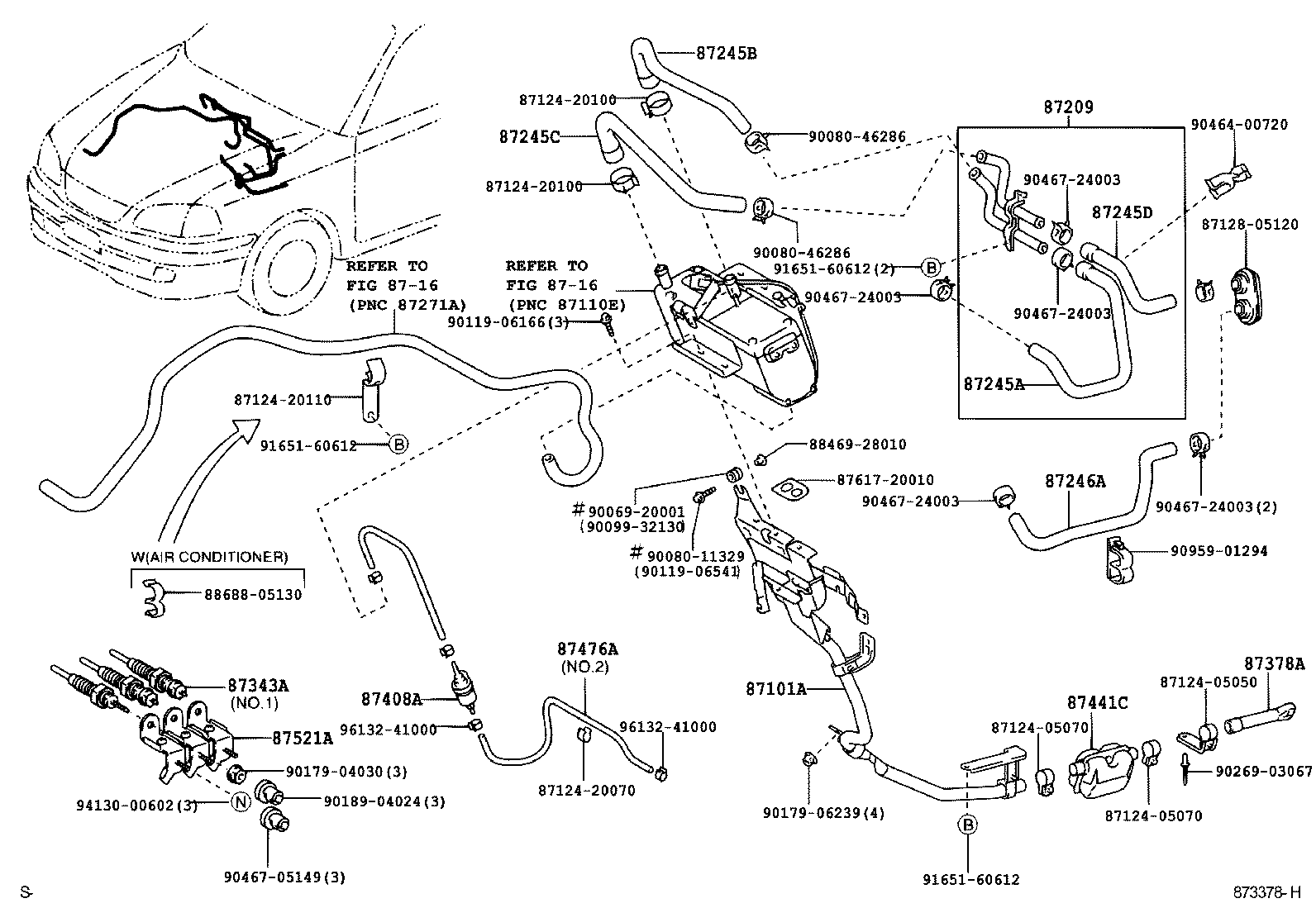

ILLUST NO. 1 OF 2(9908- )CDT220..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram 87101A 8712405050 8712405070 8712405070 8712420070 8712420100 8712420100 8712420110 8712805120 87209 87245A 87245B 87245C 87245D 87246A 87343A 87378A 87408A 87441C 87476A 87521A 8761720010 8846928010 8868805130 9006920001 9008011329 9008046286 9008046286 9009932130 9011906166 9011906541 9017904030 9017906239 9018904024 9026903067 9046400720 9046705149 9046724003 9046724003 9046724003 9046724003 9046724003 9095901294 9165160612 9165160612 9165160612 9413000602 9613241000 9613241000
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-05010

CDT220..LHD

 1
87209 - HOSE SUB-ASSY, WATER
87209-05010

CDT220..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-05310

CDT220..LHD

W(STOVE HEATER)

 1
87245-05290

CDT220..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-05260

CDT220..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-05250

CDT220..LHD

 1
87245D - HOSE, HEATER WATER, INLET D
87245-05320

CDT220..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-05300

CDT220..LHD

 1
87343A - PLUG, COMBUSTION HEATER GLOW
87343-20010

CDT220..LHD

NO.1

 3
87343-20010

CDT220

NO.1

 3
87343-05010

CDT220..LHD

NO.2

 1
87378A - PIPE, EXHAUST
87378-05020

CDT220..LHD

 1
87408A - PUMP SUB-ASSY, FUEL
87408-05010

CDT220..LHD

 1
87441C - MUFFLER
87441-05010

CDT220..LHD

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-05010

CDT220..LHD

NO.1

 1
87476-05020

CDT220..LHD

NO.2

 1
87521A - BRACKET, ENGINE BLOCK HEATER
87521-20050

CDT220

 1
Common parts
87124-05050
87124-05070
87124-20070
87124-20100
87124-20110
87128-05120
87617-20010
88469-28010
88688-05130
90069-20001
90080-11329
90080-46286
90099-32130
90119-06166
90119-06541
90179-04030
90179-06239
90189-04024
90269-03067
90464-00720
90467-05149
90467-24003
90959-01294
91651-60612
94130-00602
96132-41000

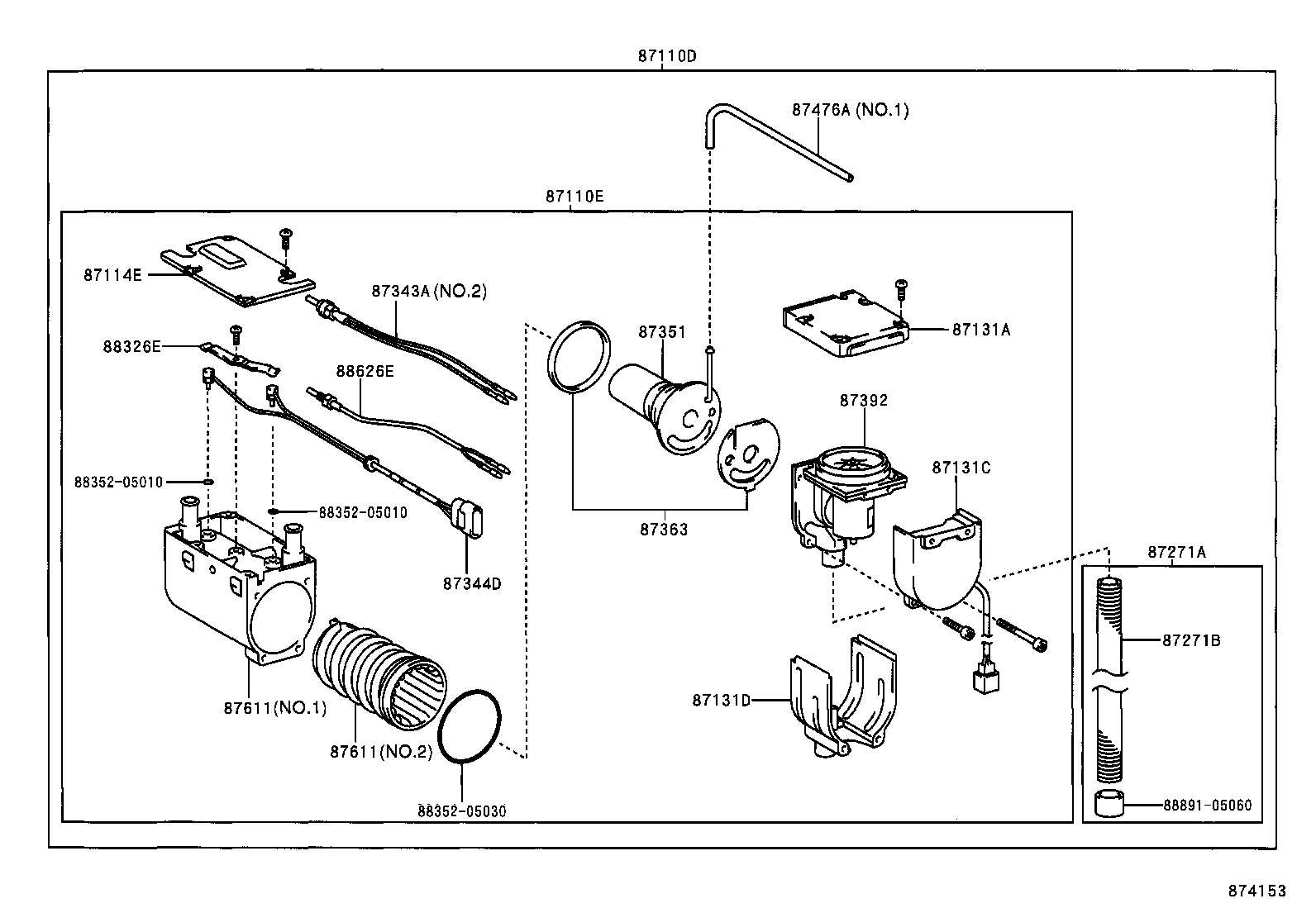

ILLUST NO. 2 OF 2(9908- )CDT220..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram 87110D 87110E 87114E 87131A 87131C 87131D 87271A 87271B 87343A 87344D 87351 87363 87392 87476A 87611 87611 88326E 8835205010 8835205010 8835205030 88626E 8889105060
Part # Description Qty Price
87110D - HEATER ASSY
87110-05010

CDT220..LHD

 1
87110E - HEATER ASSY
87110-05030

CDT220..LHD

 1
87114E - COVER, HEATER, NO.1
87114-05050

CDT220..LHD

 1
87131A - HOUSING, HEATER BLOWER
87131-05040

CDT220..LHD

 1
87131C - HOUSING, HEATER BLOWER, NO.2
87131-05050

CDT220..LHD

 1
87131D - HOUSING, HEATER BLOWER, NO.3
87131-05060

CDT220..LHD

 1
87271A - HOSE, HEATER VACUUM, NO.1
87271-05030

CDT220..LHD

 1
87271B - HOSE, HEATER VACUUM, NO.2
87271-05060

CDT220..LHD

 1
87343A - PLUG, COMBUSTION HEATER GLOW
87343-20010

CDT220..LHD

NO.1

 3
87343-20010

CDT220

NO.1

 3
87343-05010

CDT220..LHD

NO.2

 1
87344D - WIRING, HEATER
87344-05010

CDT220..LHD

 1
87351 - CHAMBER, FUEL REGULATOR BODY
87351-05010

CDT220..LHD

 1
87363 - GASKET, FUEL REGULATOR COVER
87363-05010

CDT220..LHD

 1
87392 - HOUSING, MOTOR
87392-05020

CDT220..LHD

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-05010

CDT220..LHD

NO.1

 1
87476-05020

CDT220..LHD

NO.2

 1
87611 - CASE, HEAT EXCHANGER
87611-05010

CDT220..LHD

NO.1

 1
87611-05020

CDT220..LHD

NO.2

 1
87611 - CASE, HEAT EXCHANGER
87611-05010

CDT220..LHD

NO.1

 1
87611-05020

CDT220..LHD

NO.2

 1
88326E - PLATE, COVER
88326-05040

CDT220..LHD

 1
88626E - SENSOR, WATER TEMPERATURE
88626-05020

CDT220..LHD

 1
Common parts
88352-05010
88352-05030
88891-05060
