CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

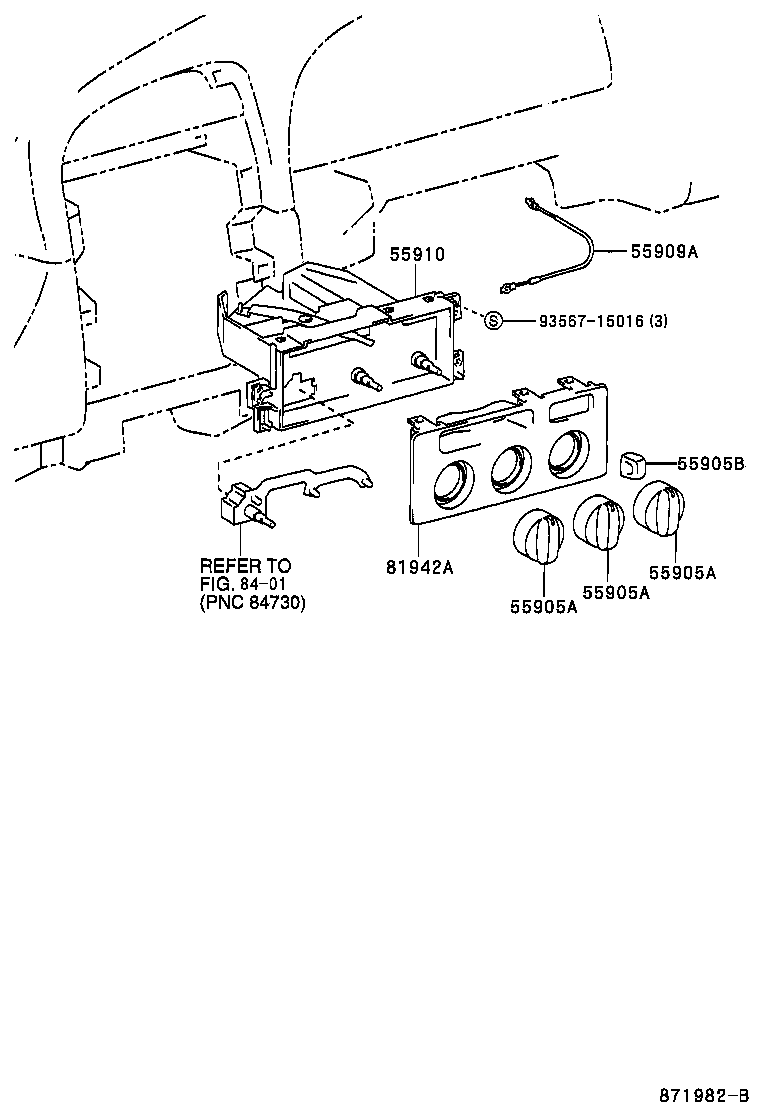

ILLUST NO. 1 OF 3(9710-0007)

Click highlighted areas on diagram

CONTROL

diagram 55905A 55905A 55905A 55905B 55909A 55910 81942A 8401 9356715016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55905-05040

AZT220,CDT220,ST220,ZZT22#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-05030

AT22#,CDT220,CT220,ST220..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-05030

AT22#,CDT220,CT220,ST220..LHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-05030

AT22#,CDT220,CT220,ST220..LHD

 1
Common parts
93567-15016
Linked diagrams
8401

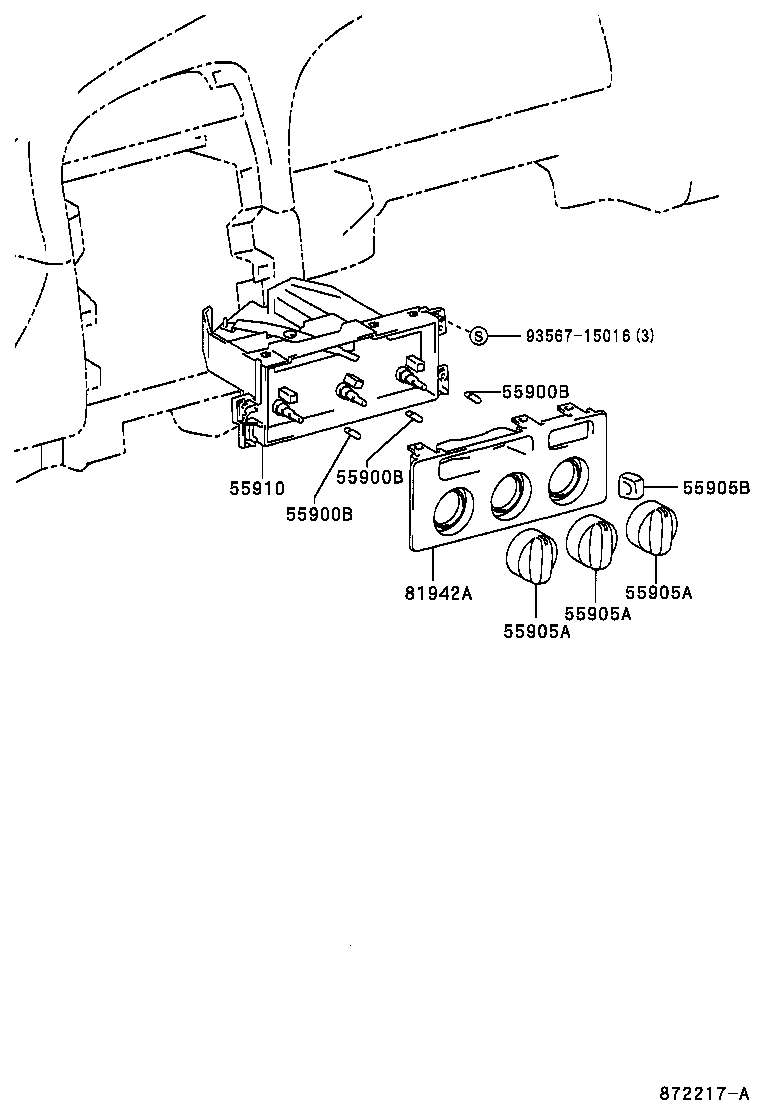

ILLUST NO. 1 OF 3(9710-0007)

Click highlighted areas on diagram

CONTROL--AUTO AIR CONDITIONER

diagram 55900B 55900B 55900B 55905A 55905A 55905A 55905B 55910 81942A 9356715016
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55905-05040

AZT220,CDT220,ST220,ZZT22#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-05030

AT22#,CDT220,CT220,ST220..LHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-05030

AT22#,CDT220,CT220,ST220..LHD

 1
Common parts
93567-15016

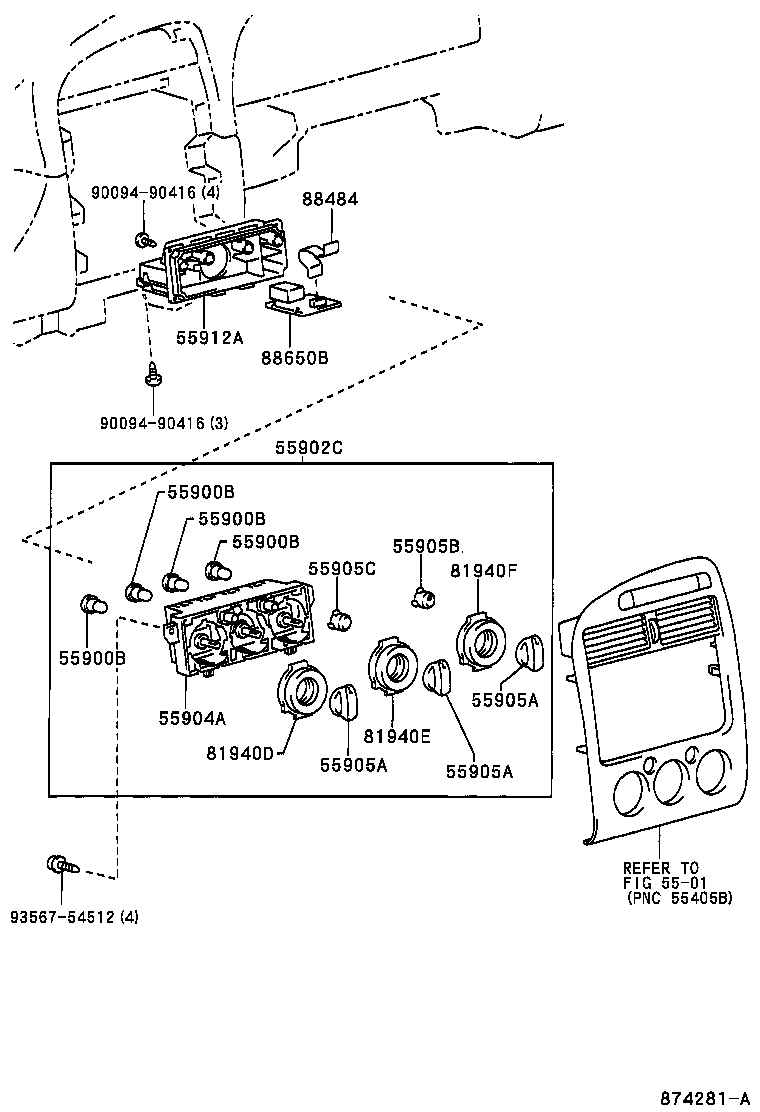

ILLUST NO. 1 OF 3(0007- )

Click highlighted areas on diagram

CONTROL

diagram 5501 55900B 55900B 55900B 55900B 55902C 55904A 55905A 55905A 55905A 55905B 55905C 55912A 81940D 81940E 81940F 88484 88650B 9009490416 9009490416 9356754512
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-05010

AZT220,CDT220,ST220,ZZT22#

 1
55902-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55902-05011

AZT220,CDT220,ST220,ZZT22#

 1
55902-05021

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-05010

AZT220,CDT220,ST220,ZZT22#

 1
55904-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55905-05040

AZT220,CDT220,ST220,ZZT22#

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-05070

AZT220,CDT220,ST220,ZZT22#

 1
55905-05030

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55912A - HOUSING, HEATER CONTROL
55912-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55912-05010

AZT220,CDT220,ST220,ZZT22#

 1
81940D - LENS ASSY, HEATER CONTROL
81940-05011

AZT220,CDT220,ST220,ZZT22#

 1
81940-05010

AZT220,CDT220,ST220,ZZT22#

 1
81940E - LENS ASSY, HEATER CONTROL
81940-05020

AZT220,CDT220,ST220,ZZT22#

 1
81940-05030

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
81940F - LENS ASSY, HEATER CONTROL
81940-05040

AZT220,CDT220,ST220,ZZT22#

 1
81940-05050

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
88484 - WIRE, COOLER, NO.1
88484-05010

AZT220,CDT220,ST220,ZZT22#

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-05090

AZT220,CDT220,ST220,ZZT22#

 1
88650-05100

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
Common parts
90094-90416
93567-54512
Linked diagrams
5501

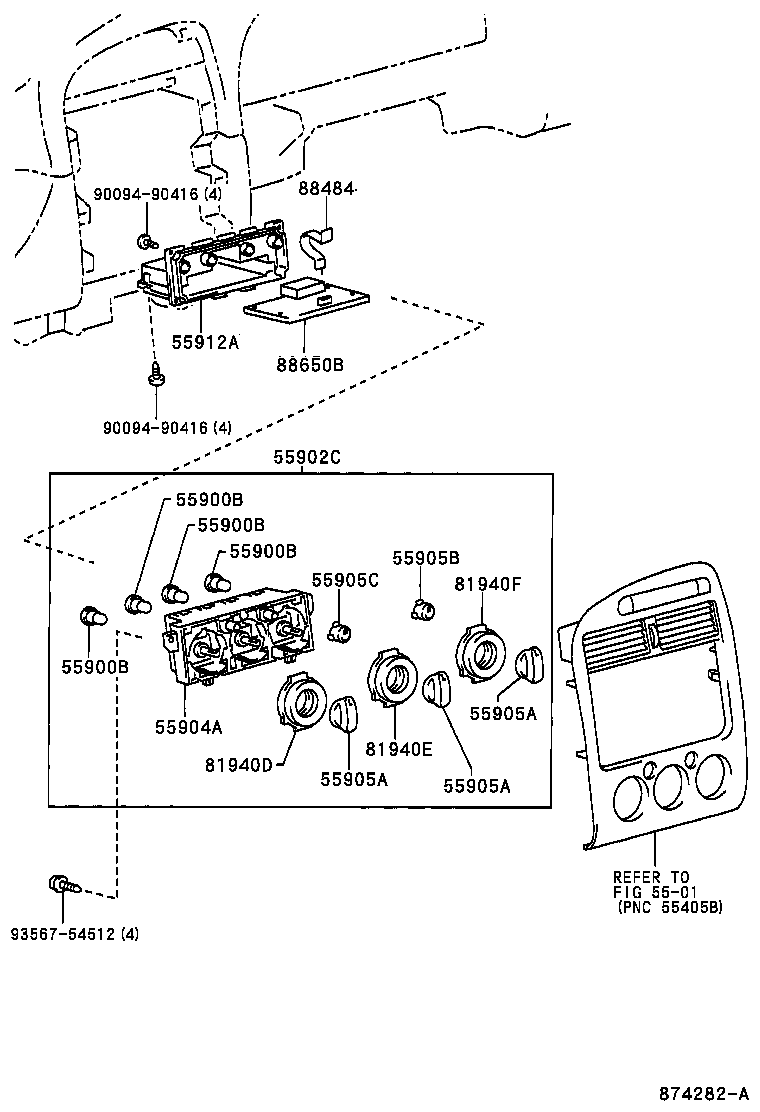

ILLUST NO. 1 OF 3(0007- )

Click highlighted areas on diagram

CONTROL--AUTO AIR CONDITIONER

diagram 5501 55900B 55900B 55900B 55900B 55902C 55904A 55905A 55905A 55905A 55905B 55905C 55912A 81940D 81940E 81940F 88484 88650B 9009490416 9009490416 9356754512
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55900B - BULB, AIR CONDITIONER CONTROL
90011-11020

AZT220,CDT220,ST220,ZZT22#

14V1.4W,W(GREEN CAP)

 4
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-05010

AZT220,CDT220,ST220,ZZT22#

 1
55902-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55902-05011

AZT220,CDT220,ST220,ZZT22#

 1
55902-05021

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-05010

AZT220,CDT220,ST220,ZZT22#

 1
55904-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05080

AZT220,CDT220,ST220,ZZT22#

 3
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55905-05040

AZT220,CDT220,ST220,ZZT22#

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-05070

AZT220,CDT220,ST220,ZZT22#

 1
55905-05030

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55912A - HOUSING, HEATER CONTROL
55912-05020

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
55912-05010

AZT220,CDT220,ST220,ZZT22#

 1
81940D - LENS ASSY, HEATER CONTROL
81940-05011

AZT220,CDT220,ST220,ZZT22#

 1
81940-05010

AZT220,CDT220,ST220,ZZT22#

 1
81940E - LENS ASSY, HEATER CONTROL
81940-05020

AZT220,CDT220,ST220,ZZT22#

 1
81940-05030

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
81940F - LENS ASSY, HEATER CONTROL
81940-05040

AZT220,CDT220,ST220,ZZT22#

 1
81940-05050

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
88484 - WIRE, COOLER, NO.1
88484-05010

AZT220,CDT220,ST220,ZZT22#

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-05090

AZT220,CDT220,ST220,ZZT22#

 1
88650-05100

AZT220,CDT220,ST220,ZZT22#

W(AUTO AIR CONDITIONER)

 1
Common parts
90094-90416
93567-54512
Linked diagrams
5501
