CDT220L-ALMEYW (1999)
Toyota Avensis

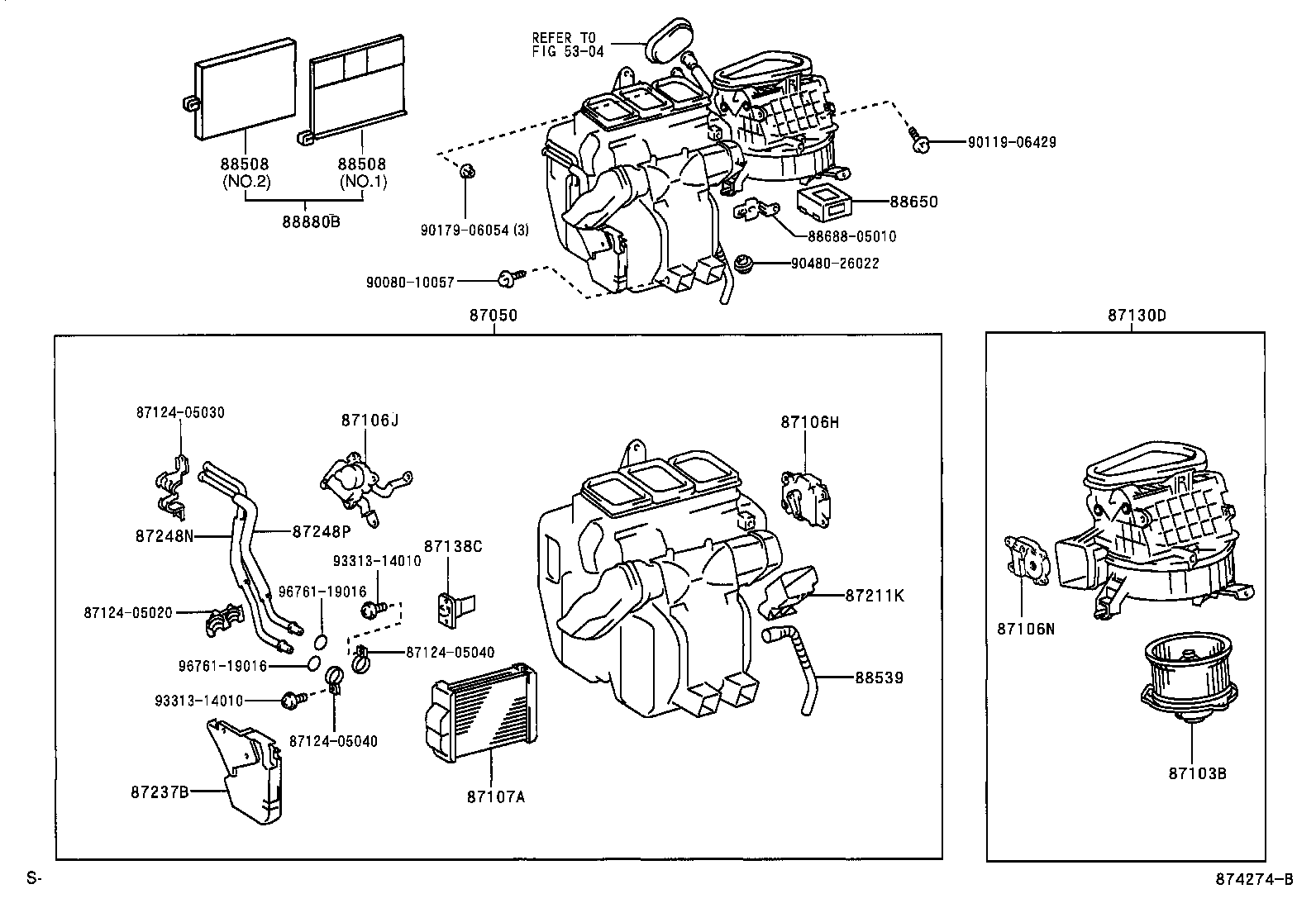

ILLUST NO. 1 OF 2(9710-0007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906F - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87151J - PLATE, DAMPER NO.1 | ||||
| 87151-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05010 |
CDT220..LHD |
1 | ||
| 87151K - PLATE, DAMPER NO.2 | ||||
| 87151-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05020 |
CDT220..LHD |
1 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87154-05010 |
CDT220..LHD |
1 | ||
| 87154-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154B - SHAFT, DAMPER, NO.2 | ||||
| 87154-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154-05020 |
CDT220..LHD |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20130 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880-20110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 82711-2D080 | ||||
| 87124-05010 | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 88688-05010 | ||||
| 90080-10057 | ||||
| 90105-06109 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 5304 | ||||

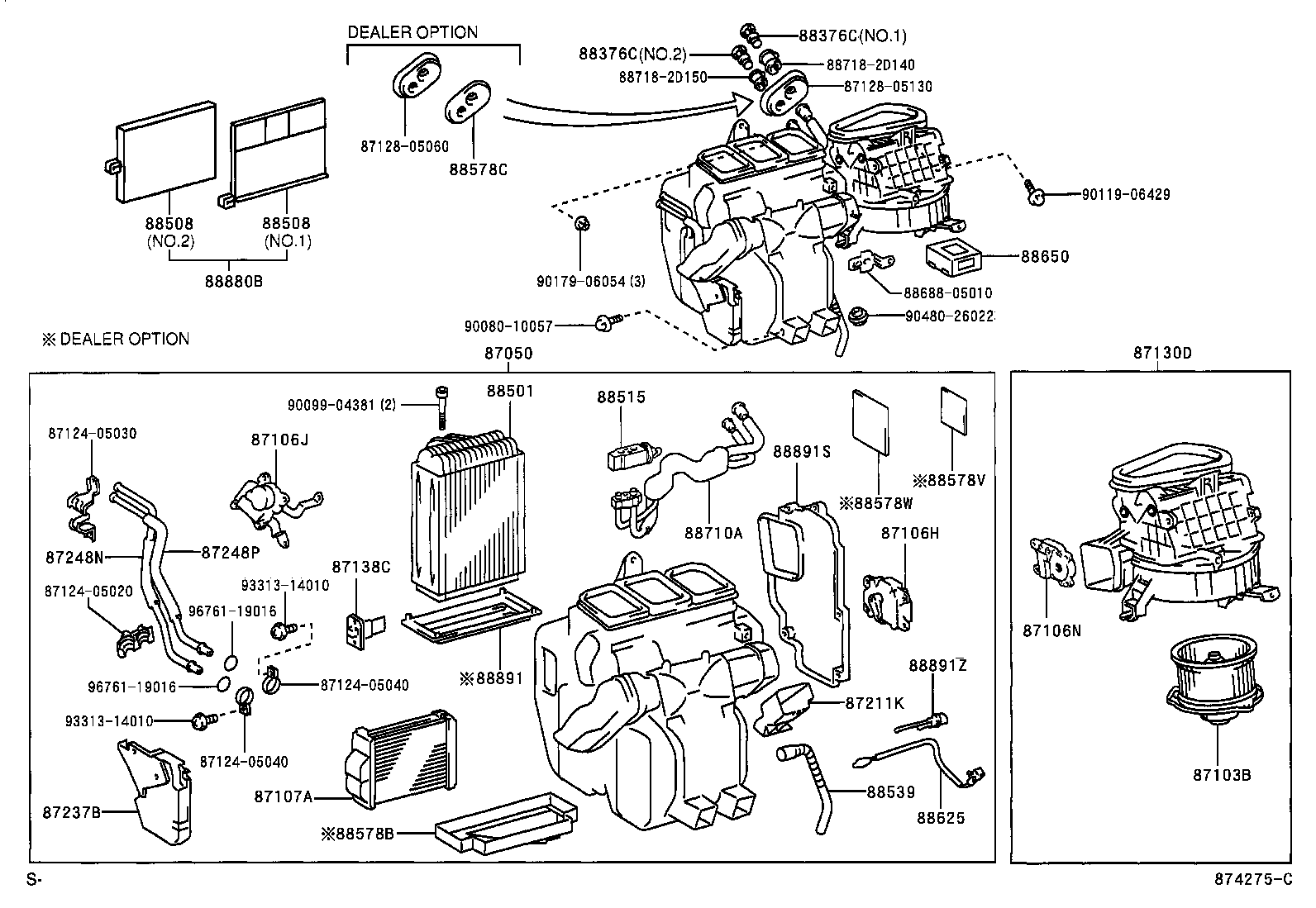

ILLUST NO. 1 OF 2(9710-0007)
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906F - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20500 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20390 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87151J - PLATE, DAMPER NO.1 | ||||
| 87151-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05010 |
CDT220..LHD |
1 | ||
| 87151K - PLATE, DAMPER NO.2 | ||||
| 87151-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05020 |
CDT220..LHD |
1 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87154-05010 |
CDT220..LHD |
1 | ||
| 87154-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154B - SHAFT, DAMPER, NO.2 | ||||
| 87154-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154-05020 |
CDT220..LHD |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-05020 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-05040 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-05060 |
AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05030 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20130 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880-20110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-20160 |
AT22#..LHD;AZT220..RHD;CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
CDT220;AT22#,CT220,ST220..RHD |
1 | ||
| 88891-44050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 88891-20240 |
AZT220..RHD;CDT220,ST220,ZZT22# DEALER OPTION |
1 | ||
| Common parts | ||||
| 82711-2D080 | ||||
| 87124-05010 | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 87128-05050 | ||||
| 87128-05060 | ||||
| 88688-05010 | ||||
| 90080-10057 | ||||
| 90099-04381 | ||||
| 90105-06109 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||

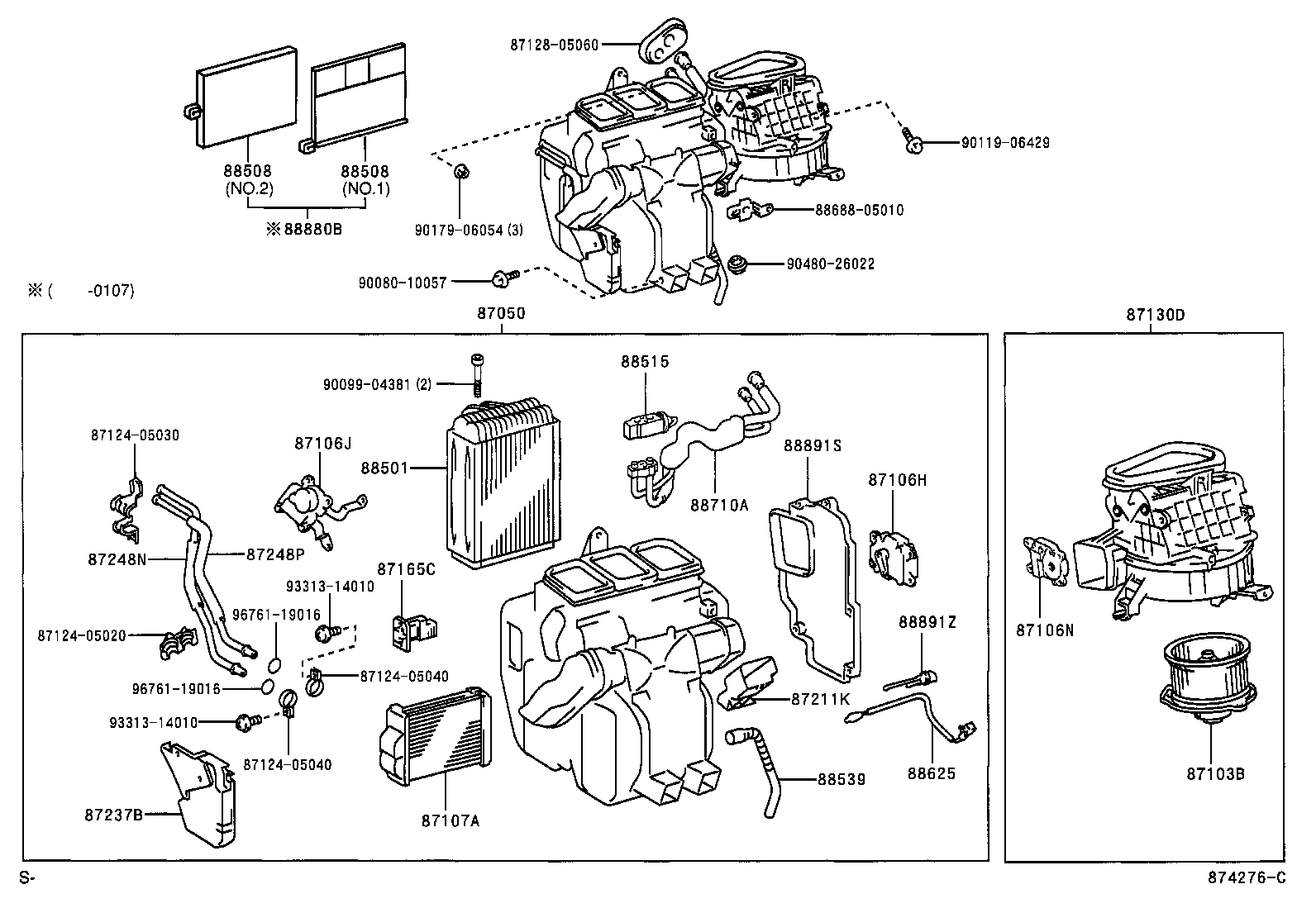

ILLUST NO. 1 OF 2(9710-0007)
W(AUTOMATIC AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906F - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20500 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20390 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87151J - PLATE, DAMPER NO.1 | ||||
| 87151-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05010 |
CDT220..LHD |
1 | ||
| 87151K - PLATE, DAMPER NO.2 | ||||
| 87151-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87151-05020 |
CDT220..LHD |
1 | ||
| 87154A - SHAFT, DAMPER, NO.1 | ||||
| 87154-05010 |
CDT220..LHD |
1 | ||
| 87154-05010 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154B - SHAFT, DAMPER, NO.2 | ||||
| 87154-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87154-05020 |
CDT220..LHD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 87438 - PLATE,LINK | ||||
| 87438-05030 |
AT22#,CDT220,CT220,ST220..LHD NO.1 |
1 | ||
| 87438-05040 |
AT22#,CDT220,CT220,ST220..LHD NO.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-05020 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-05040 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05030 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-20160 |
AT22#..LHD;AZT220..RHD;CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
CDT220;AT22#,CT220,ST220..RHD |
1 | ||
| 88891-44050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 88891-20240 |
AZT220..RHD;CDT220,ST220,ZZT22# DEALER OPTION |
1 | ||
| Common parts | ||||
| 82711-2D080 | ||||
| 87124-05010 | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 87128-05050 | ||||
| 87128-05060 | ||||
| 88688-05010 | ||||
| 90080-10057 | ||||
| 90099-04381 | ||||
| 90105-06109 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||

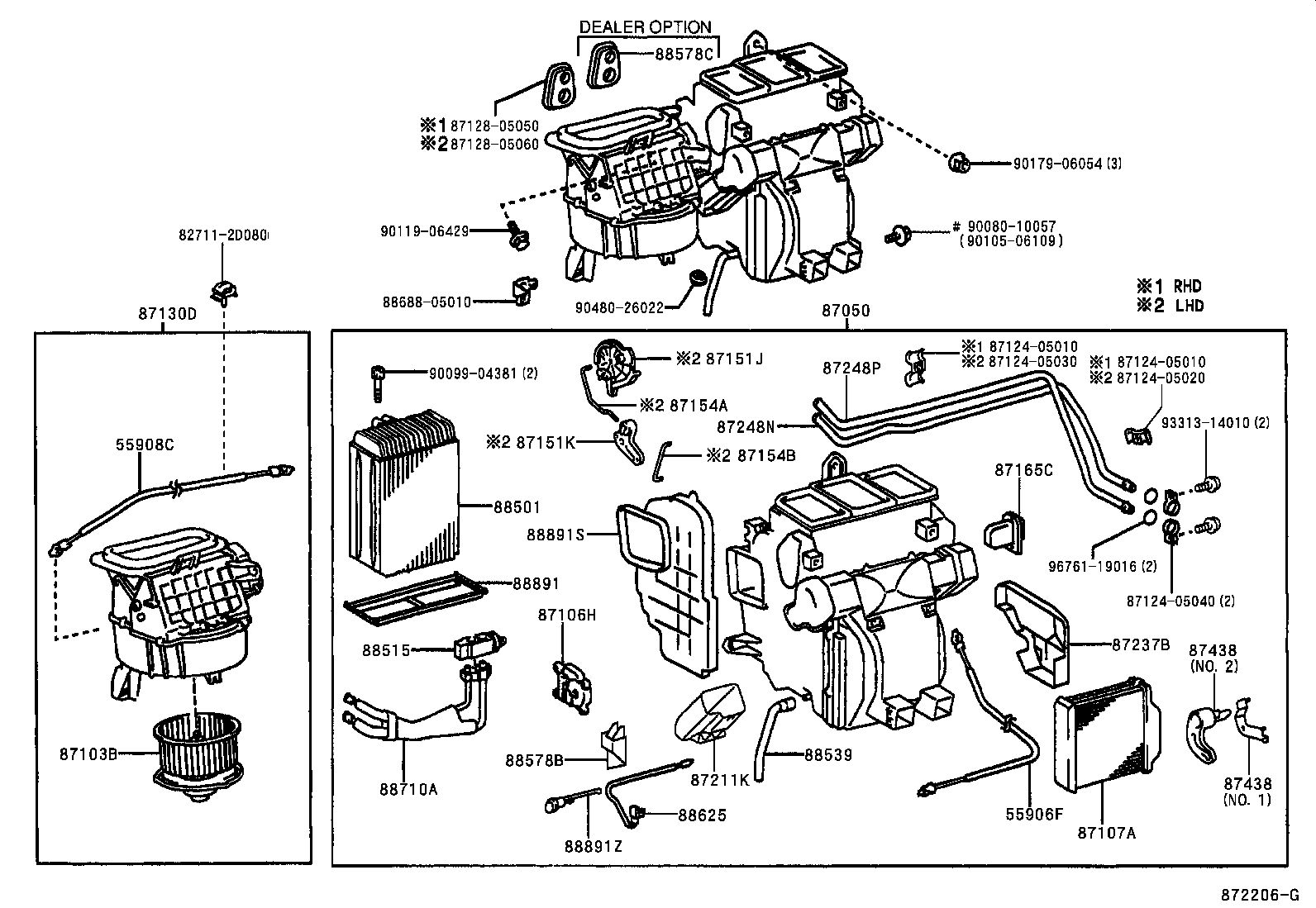

ILLUST NO. 1 OF 2(0007- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20500 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20390 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20480 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20490 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-05060 |
AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20130 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880-20110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 88688-05010 | ||||
| 90080-10057 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 5304 | ||||

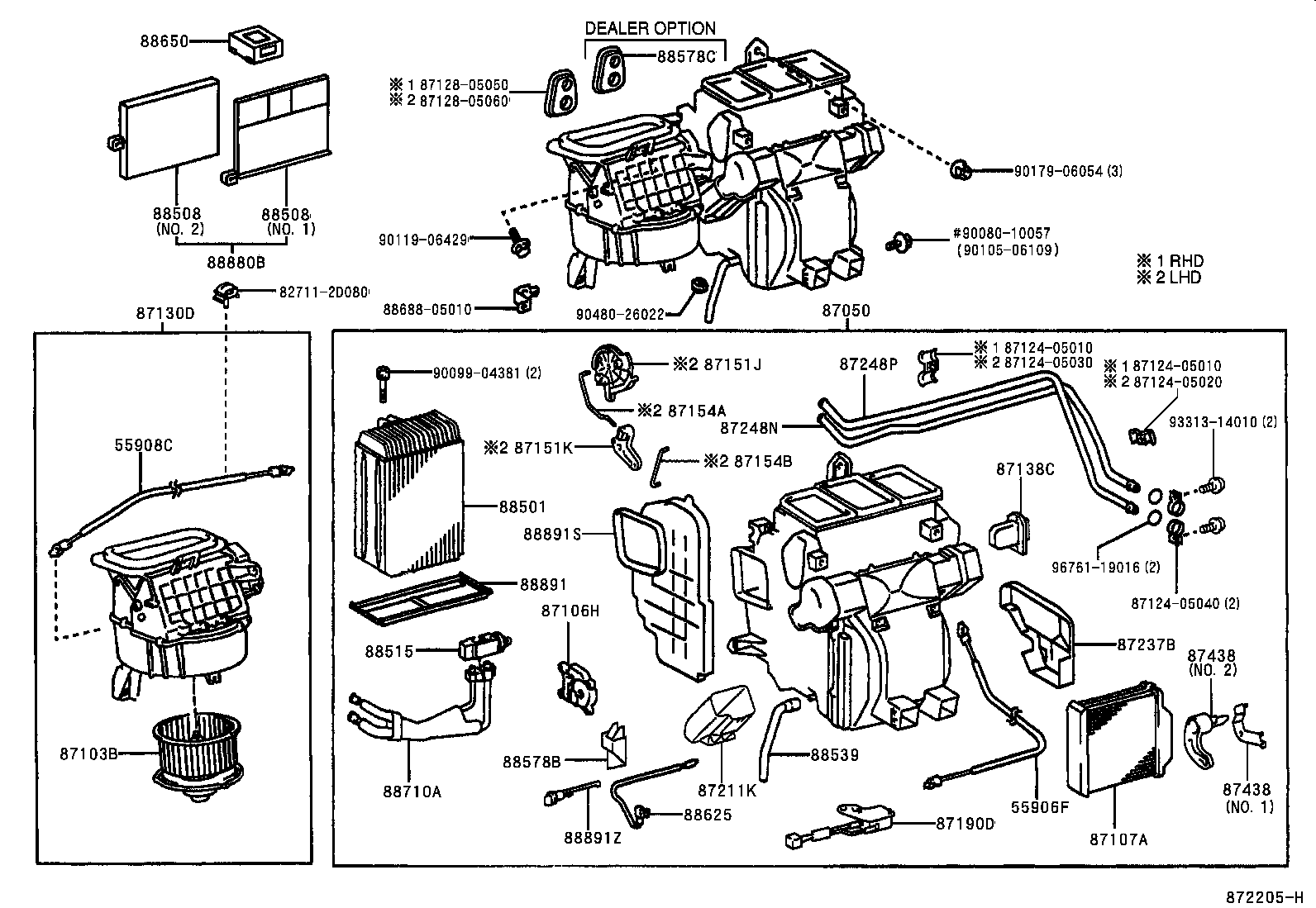

ILLUST NO. 1 OF 2(0007- )LHD
W(MANUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20500 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20390 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20480 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20490 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-05020 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-05040 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-16260 |
AZT220..RHD;CDT220,ST220,ZZT22# |
2 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-38010 |
AZT220..RHD;CDT220,ST220,ZZT22# |
3 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-05060 |
AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05030 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20130 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880-20110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-20160 |
AT22#..LHD;AZT220..RHD;CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
CDT220;AT22#,CT220,ST220..RHD |
1 | ||
| 88891-44050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 88891-20240 |
AZT220..RHD;CDT220,ST220,ZZT22# DEALER OPTION |
1 | ||
| Common parts | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 87128-05060 | ||||
| 87128-05130 | ||||
| 88688-05010 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90080-10057 | ||||
| 90099-04381 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||

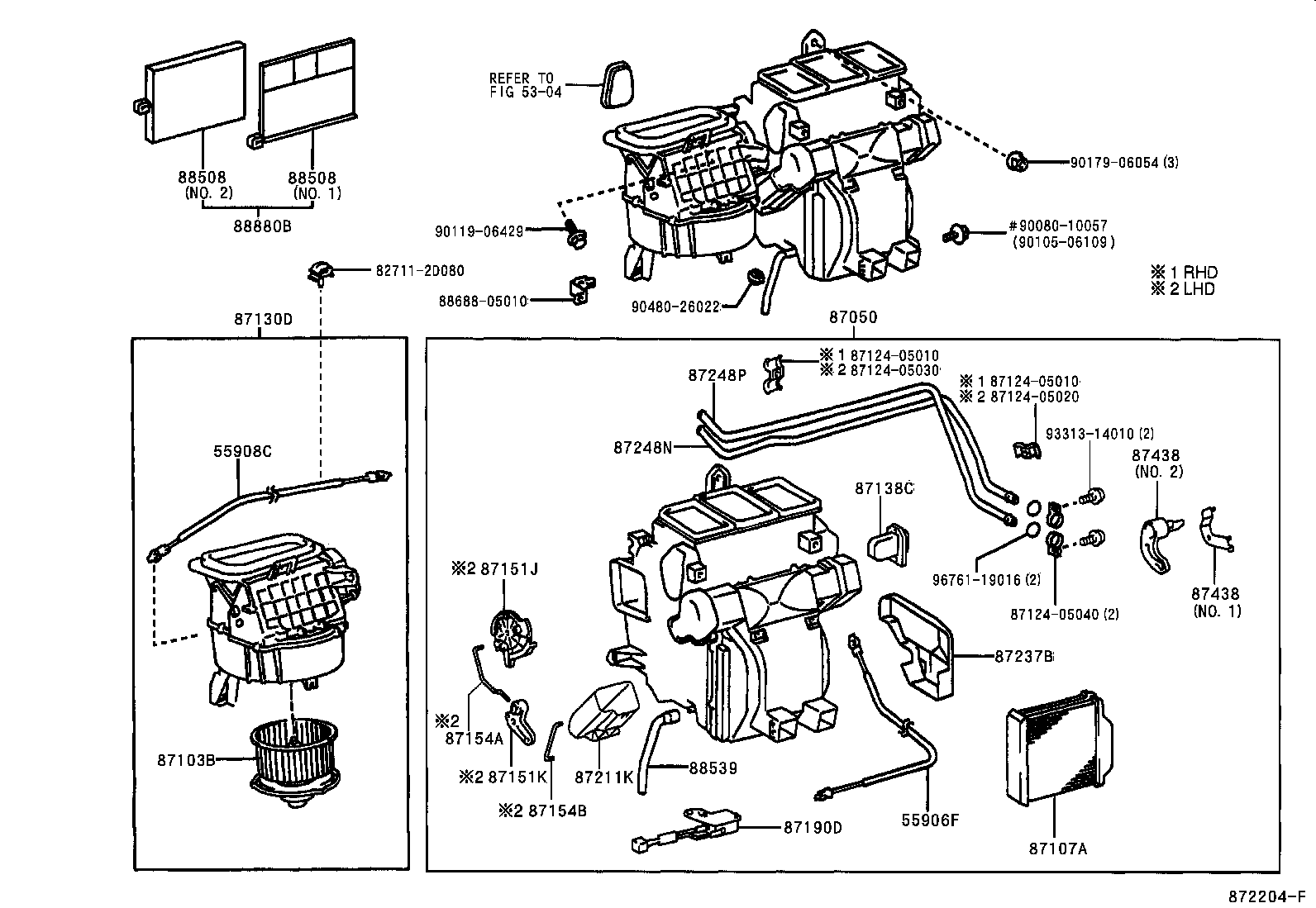

ILLUST NO. 1 OF 2(0007- )LHD
W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05250 |
CDT220..LHD |
1 | ||
| 87050-05360 |
CDT220..LHD (DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC ) & W(AIR CONDITIONER) |
1 | ||
| 87050-05270 |
CDT220..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 87050-05530 |
AZT220,CDT220,ZZT22#..LHD NORWAY OR FINLAND OR SWEDEN SPEC |
1 | ||
| 87050-05520 |
CDT220..LHD |
1 | ||
| 87050-05550 |
CDT220,ZZT22#..LHD (NORWAY OR FINLAND OR SWEDEN SPEC) & W(AUTO AIR CONDITIONER) |
1 | ||
| 87050-05560 |
CDT220..LHD W(AUTO AIR CONDITIONER) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05020 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-20090 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87103-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20500 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20390 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20480 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87106-20490 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-05070 |
CDT220..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-05130 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 87130-05100 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87201-05160 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-05060 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 87248-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20180 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.1 |
1 | ||
| 88508-20150 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER),NO.1 |
1 | ||
| 88508-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD NO.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05030 |
AT22#,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-20130 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88880-20110 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD W(AIR CONDITIONER) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
CDT220;AT22#,CT220,ST220..RHD |
1 | ||
| 88891-44050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 88891-20240 |
AZT220..RHD;CDT220,ST220,ZZT22# DEALER OPTION |
1 | ||
| Common parts | ||||
| 87124-05020 | ||||
| 87124-05030 | ||||
| 87124-05040 | ||||
| 87128-05060 | ||||
| 88688-05010 | ||||
| 90080-10057 | ||||
| 90099-04381 | ||||
| 90119-06429 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93313-14010 | ||||
| 96761-19016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
