CDT220L-ALMEYW (1999)
Toyota Avensis

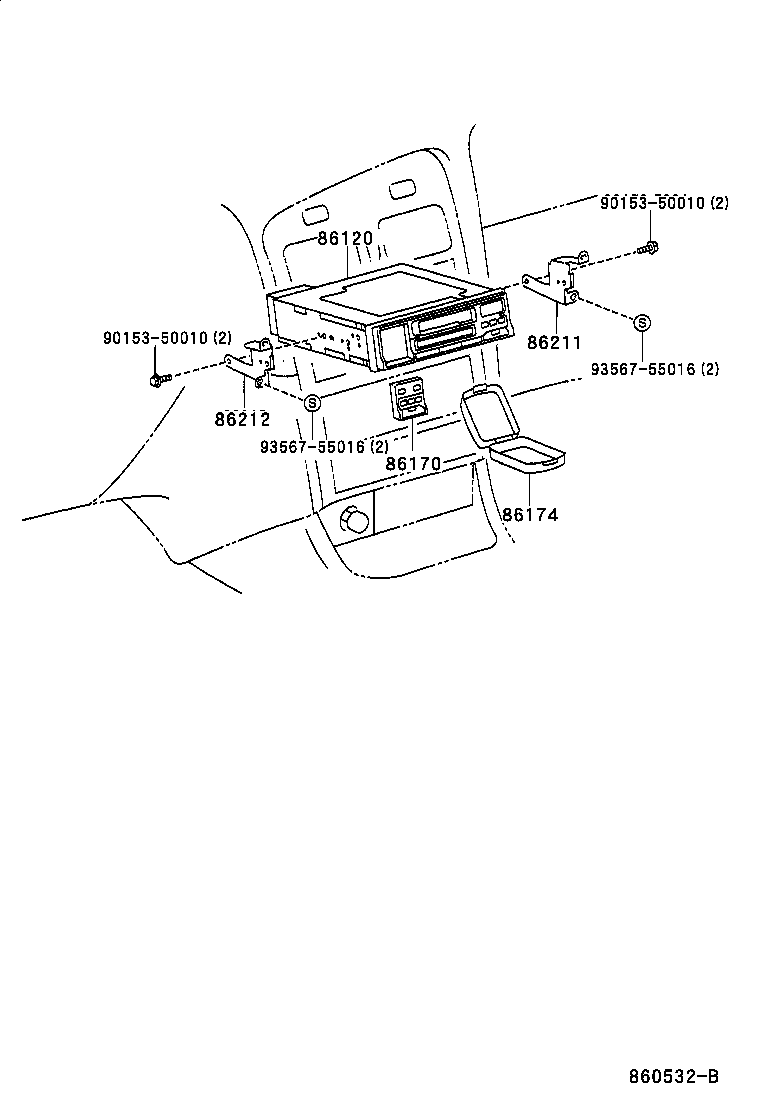

ILLUST NO. 1 OF 2(9710-0007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-05050 |
AZT220,CDT220,ST220,ZZT22# VDO,ID=WH8406,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-05040 |
AT22#,CDT220,CT220,ST220 PHILIPS |
1 | ||
| 86120-05060 |
AZT220,CDT220,ST220,ZZT22# MATSUSHITA,ID=W53804,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86174 - CASE, SWITCH & VOLUME | ||||
| 86174-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86174-45010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86211-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86212-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86212-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD W(CASSETTE) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93567-55016 | ||||

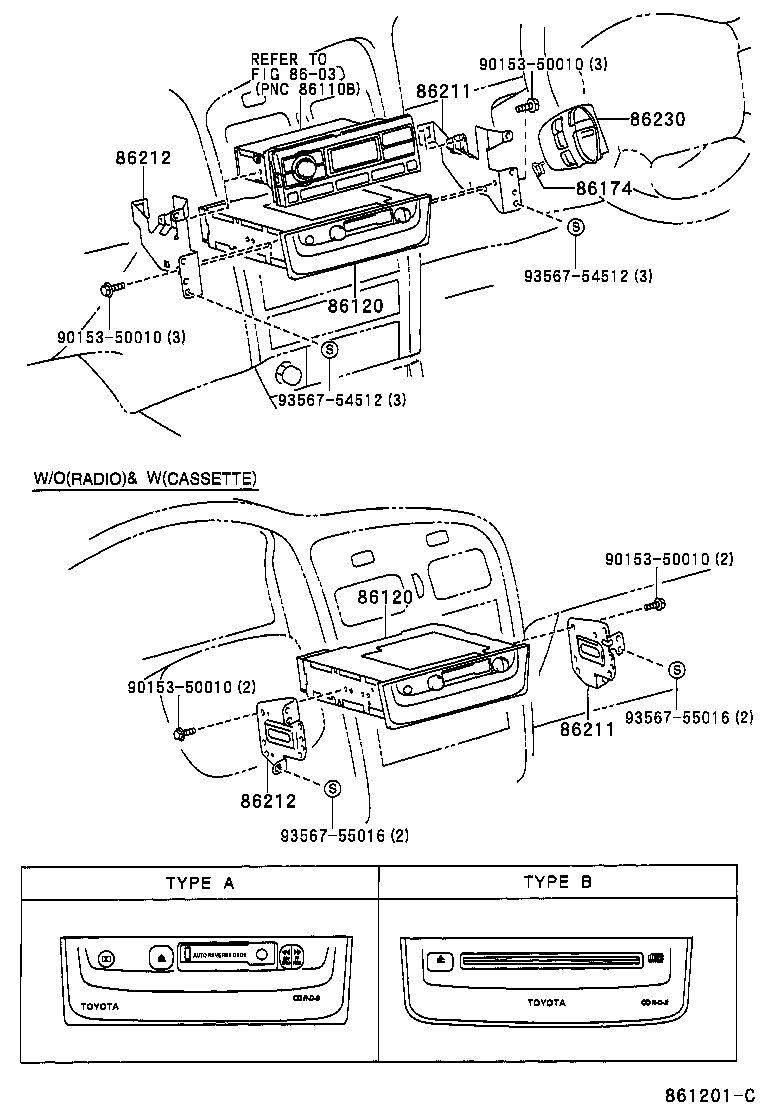

ILLUST NO. 1 OF 2(0007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-05050 |
AZT220,CDT220,ST220,ZZT22# VDO,ID=WH8406,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-05040 |
AT22#,CDT220,CT220,ST220 PHILIPS |
1 | ||
| 86120-05060 |
AZT220,CDT220,ST220,ZZT22# MATSUSHITA,ID=W53804,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-05050 |
AZT220,CDT220,ST220,ZZT22# VDO,ID=WH8406,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-05040 |
AT22#,CDT220,CT220,ST220 PHILIPS |
1 | ||
| 86120-05060 |
AZT220,CDT220,ST220,ZZT22# MATSUSHITA,ID=W53804,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86174 - CASE, SWITCH & VOLUME | ||||
| 86174-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86174-45010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86211-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86211-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86212-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86212-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD W(CASSETTE) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20490 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 86212-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 86212-20470 |
AZT220,CDT220,ST220,ZZT22#..LHD W(CASSETTE) |
1 | ||
| 86230 - CONTROLLER ASSY, STEREO COMPONENT | ||||
| 86230-20010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8603 | ||||
