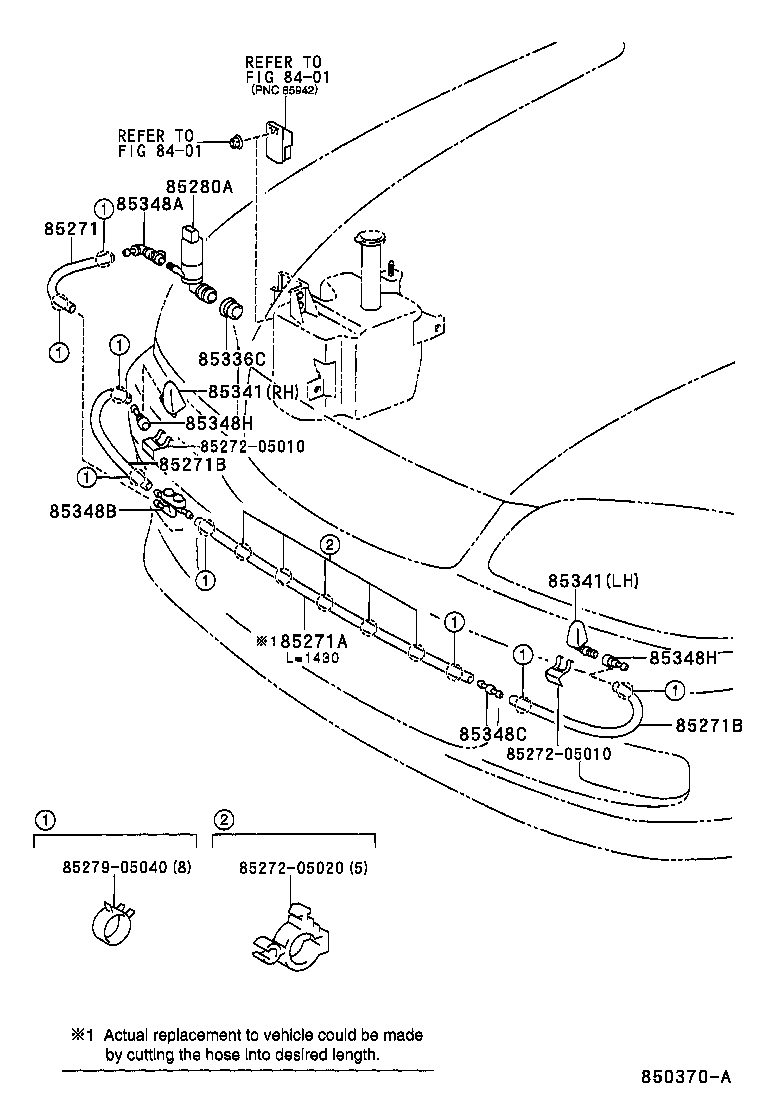

CDT220L-ALMEYW (1999)
Toyota Avensis
(9710-0007)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85277-05040 |
AT22#,CDT220,CT220,ST220..LHD L=90 |
1 | ||
| 85277-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD *H,L=440 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85276-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD L=300,RH |
1 | ||
| 90069-16012 |
AT22#,CDT220,CT220,ST220..LHD *H,L=1430 |
1 | ||
| 90069-16012 |
AZT220,CDT220,ST220,ZZT22#..LHD *H,L=1430,LH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85276-05040 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85276-05040 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-05030 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 85280-05030 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-05070 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 85336-05070 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85045-05020 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85044-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD RH |
1 | ||
| 85045-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD LH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85045-05020 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85044-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD RH |
1 | ||
| 85045-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85286-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85287-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 85287-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85285-05040 |
AZT220,CDT220,ST220,ZZT22#..LHD |
2 | ||
| 85288-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85285-05040 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85285-05040 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| Common parts | ||||
| 85272-05010 | ||||
| 85272-05020 | ||||
| 85279-05040 | ||||
| Linked diagrams | ||||
| 8401 | ||||

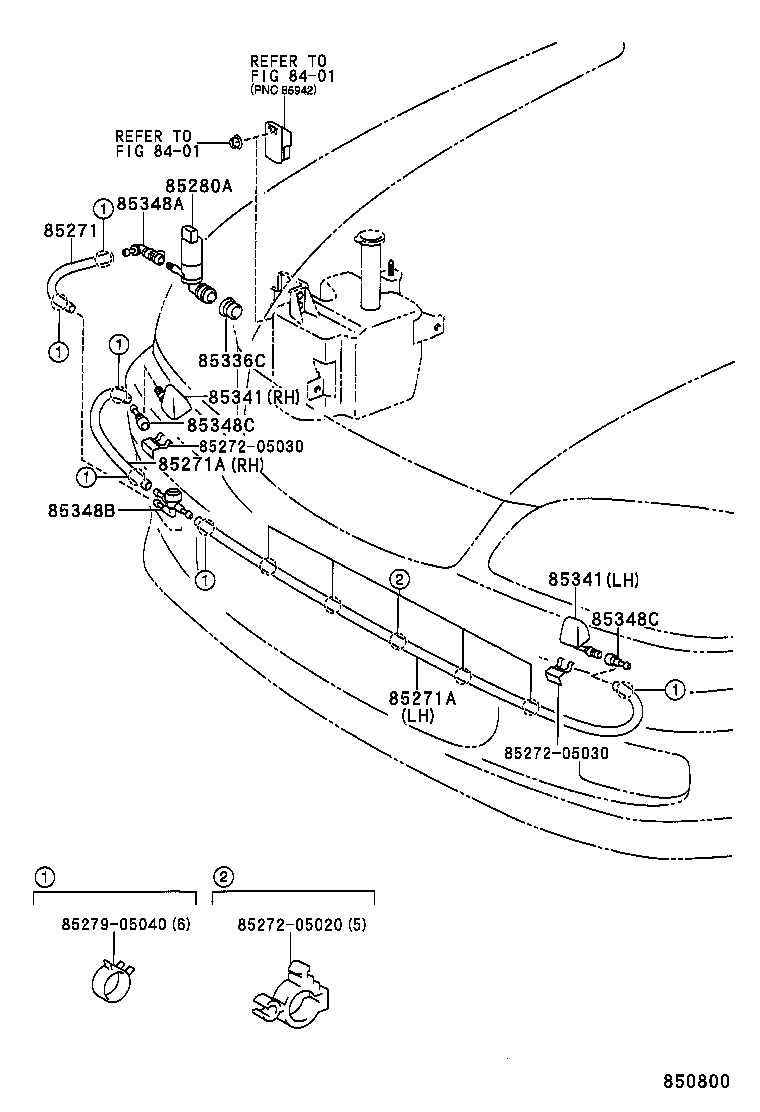

(0007- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85277-05040 |
AT22#,CDT220,CT220,ST220..LHD L=90 |
1 | ||
| 85277-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD *H,L=440 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85276-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD L=300,RH |
1 | ||
| 90069-16012 |
AT22#,CDT220,CT220,ST220..LHD *H,L=1430 |
1 | ||
| 90069-16012 |
AZT220,CDT220,ST220,ZZT22#..LHD *H,L=1430,LH |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85276-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD L=300,RH |
1 | ||
| 90069-16012 |
AT22#,CDT220,CT220,ST220..LHD *H,L=1430 |
1 | ||
| 90069-16012 |
AZT220,CDT220,ST220,ZZT22#..LHD *H,L=1430,LH |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-05030 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 85280-05030 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-05070 |
AZT220,CDT220,ZZT22#..LHD |
1 | ||
| 85336-05070 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85045-05020 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85044-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD RH |
1 | ||
| 85045-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD LH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85045-05020 |
AT22#,CDT220,CT220,ST220..LHD |
2 | ||
| 85044-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD RH |
1 | ||
| 85045-05030 |
AZT220,CDT220,ST220,ZZT22#..LHD LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85286-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85287-05050 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 85287-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85285-05040 |
AZT220,CDT220,ST220,ZZT22#..LHD |
2 | ||
| 85288-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85285-05040 |
AZT220,CDT220,ST220,ZZT22#..LHD |
2 | ||
| 85288-05040 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| Common parts | ||||
| 85272-05020 | ||||
| 85272-05030 | ||||
| 85279-05040 | ||||
| Linked diagrams | ||||
| 8401 | ||||
