CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

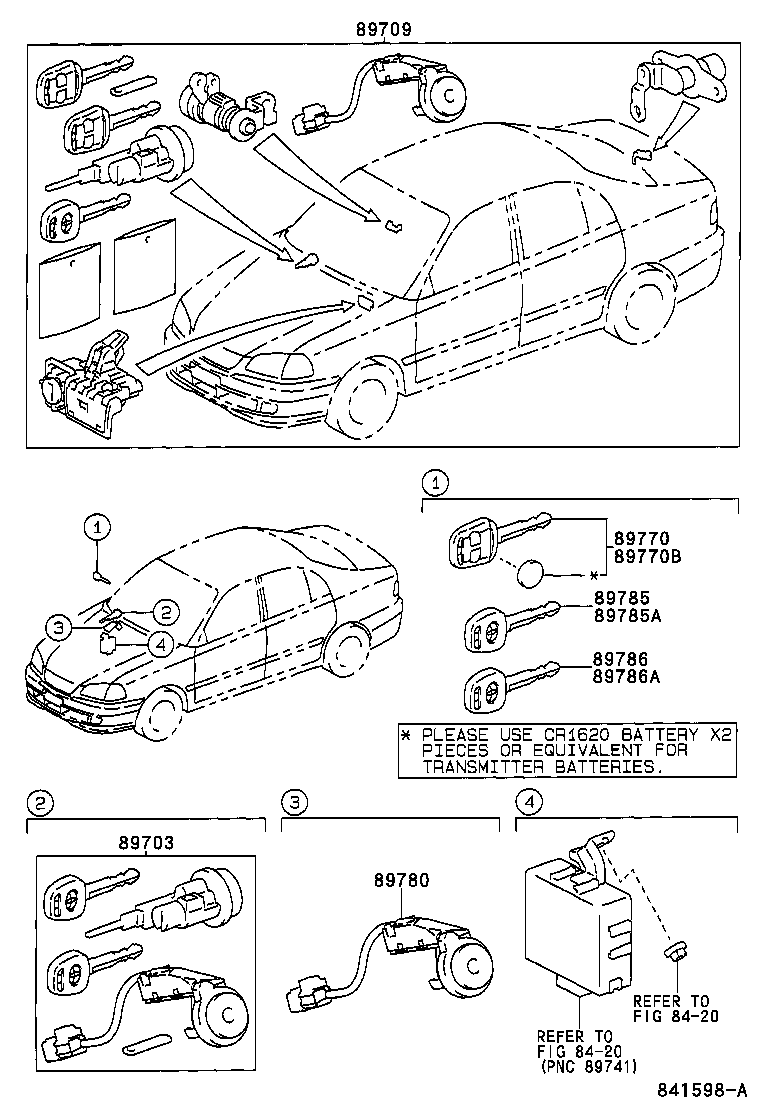

ILLUST NO. 1 OF 2(9710-0007)

Click highlighted areas on diagram

IMMOBILIZER

diagram 8420 8420 89703 89709 89770 89770B 89780 89785 89785A 89786 89786A
Part # Description Qty Price
89709 - COMPUTER SET, TRANSPONDER KEY
89709-05261

CDT220..LHD

SWEDEN SPEC

 1
89770 - TRANSMITTER ASSY,TRANSPONDER IMMOBILIZER&WIRELESS(BLANK
89770-02090

CDT220..LHD

SWEDEN SPEC

 1
89770B - TRANSMITTER ASSY, TRANSPONDER W/IMMOBILIZER & WIRELESS(
89770-02120

CDT220..LHD

SWEDEN SPEC

 1
Linked diagrams
8420

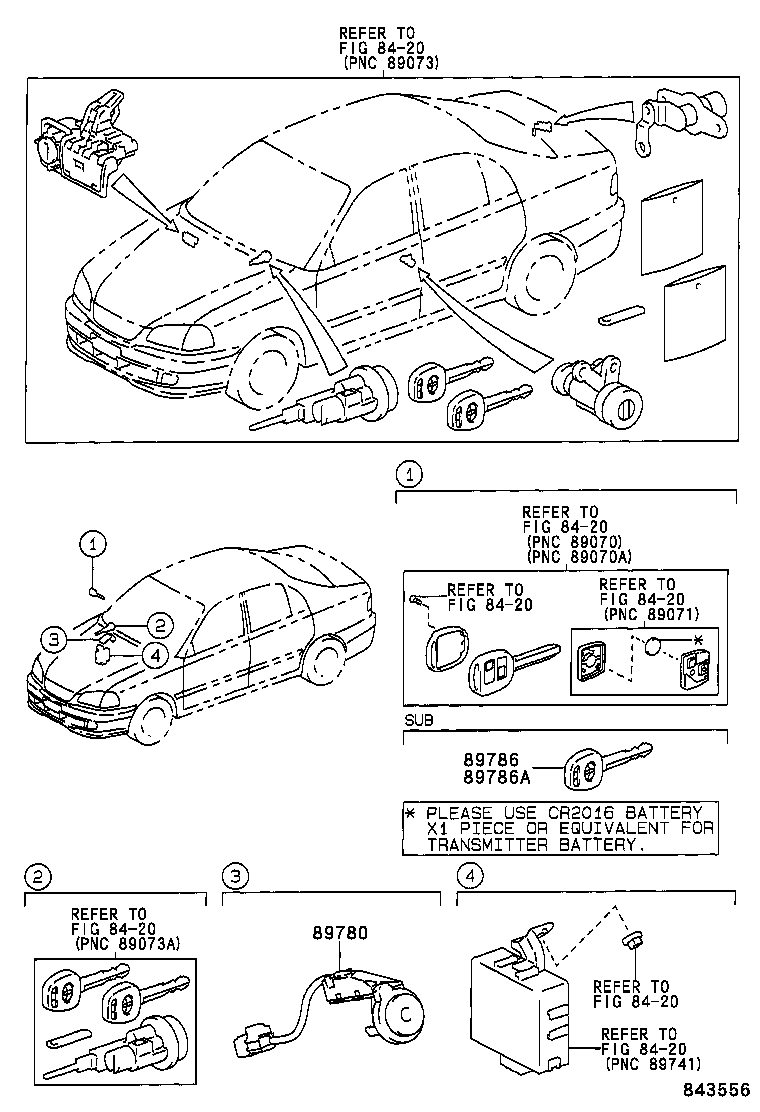

ILLUST NO. 1 OF 2(0007- )CDT220,ST220

Click highlighted areas on diagram

IMMOBILIZER

diagram 8420 8420 8420 8420 8420 8420 8420 89780 89786 89786A
Part # Description Qty Price
Linked diagrams
8420
