CDT220L-ALMEYW (1999)
Toyota Avensis
Production
Aug 1999
-
Jan 2003
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710-0007)

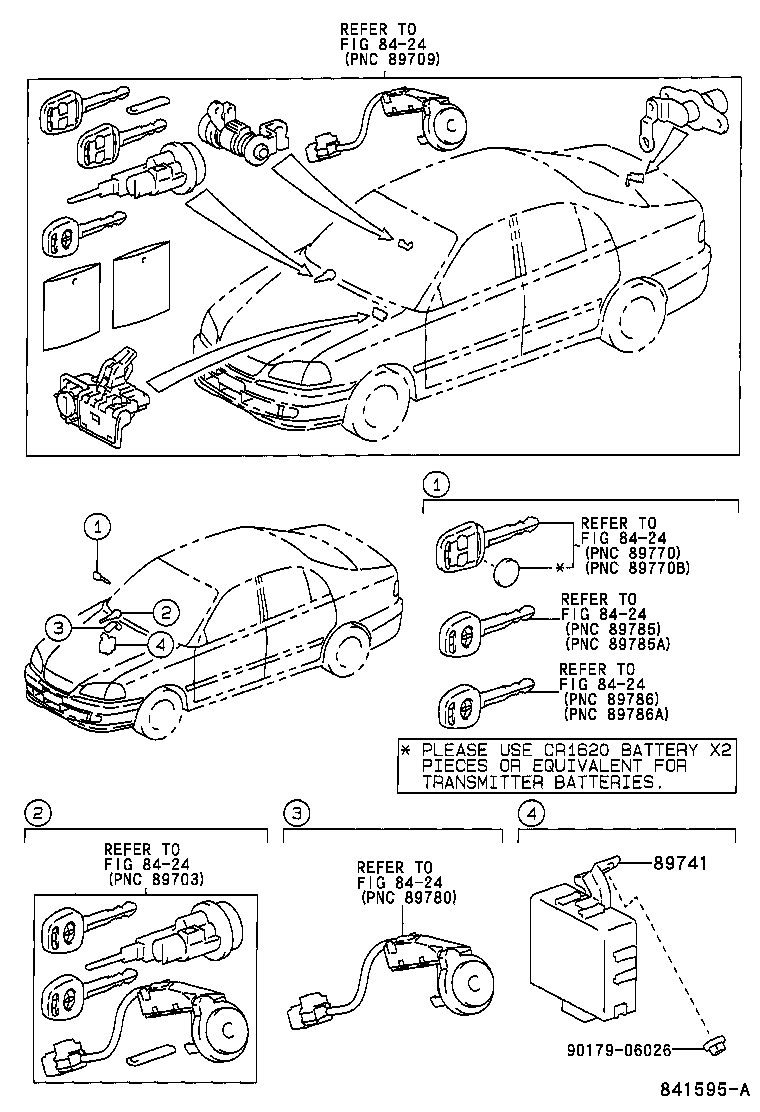

Click highlighted areas on diagram
W(IMMOBILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 89741-05041 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90179-06026 | ||||
| Linked diagrams | ||||
| 8424 | ||||
(0007- )CDT220,ST220
Click highlighted areas on diagram
W(IMMOBILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-02050 |
CDT220 |
1 | ||
| 89070-02051 |
CDT220 |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-02060 |
CDT220 |
1 | ||
| 89070-02061 |
CDT220 |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-02021 |
CDT220 |
2 | ||
| 89071-02020 |
CDT220 |
2 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-05040 |
CDT220..LHD |
1 | ||
| 89073-05041 |
CDT220..LHD |
1 | ||
| 89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY) | ||||
| 89073-05011 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 89073-05010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 89741-05041 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 89759-02010 | ||||
| 90179-06026 | ||||
| Linked diagrams | ||||
| 8424 | ||||
