CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )CDT220..LHD

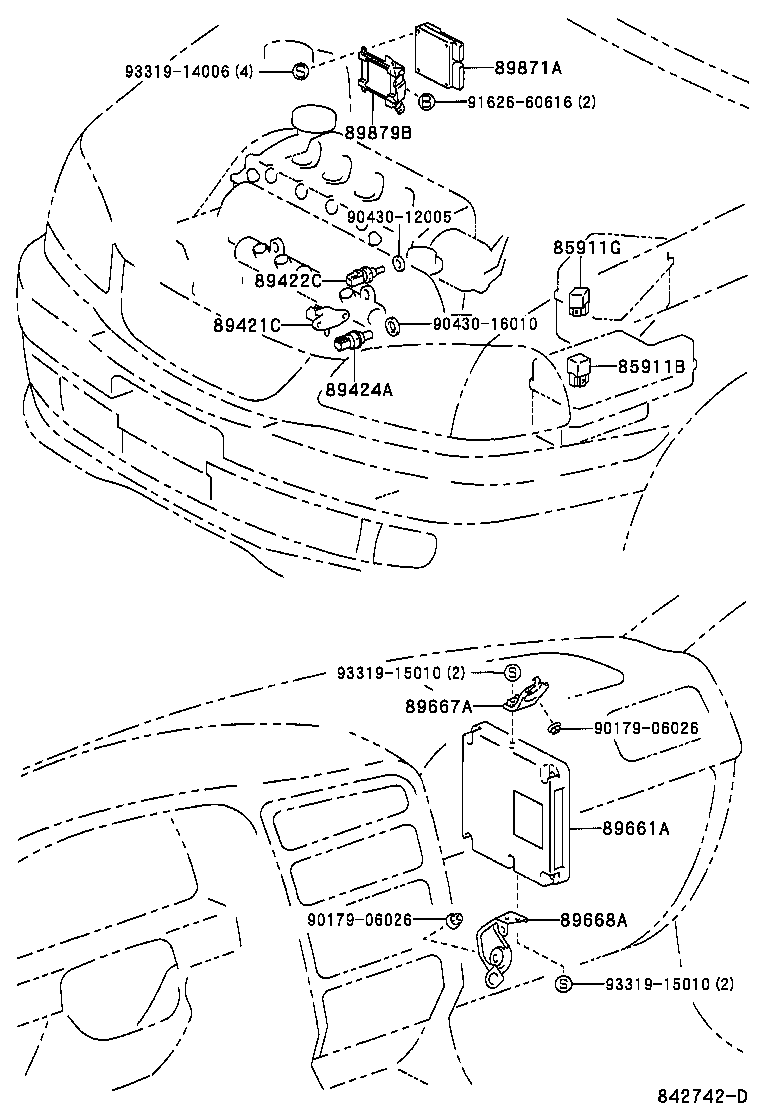

Click highlighted areas on diagram

diagram 85911B 85911G 89421C 89422C 89424A 89661A 89667A 89668A 89871A 89879B 9017906026 9017906026 9043012005 9043016010 9162660616 9331914006 9331915010 9331915010
Part # Description Qty Price
85911B - RELAY, COMPUTER (FOR DIESEL TURBO)
90080-87013

CDT220,CT220..DCR,TDEFI

 1
85911G - RELAY, INJECTOR DRIVER
90080-87013

CDT220

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20210

CDT220

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

CDT220,CT220..DCR,TDEFI

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

CDT220,CT220..DCR,TDEFI

 1
89661A - COMPUTER, ENGINE CONTROL
89661-05420

CDT220

 1
89661-05410

CDT220

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-05010

CDT220,CT220..DCR,TDEFI

 1
89667-05030

CDT220

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-05020

CDT220,CT220..LHD..(DCR,TDEFI)

 1
89668-05050

CDT220..LHD

 1
89871A - DRIVER, INJECTOR
89871-20030

CDT220

 1
89879B - BRACKET, INJECTOR DRIVER
89879-20050

CDT220..LHD

 1
Common parts
90179-06026
90430-12005
90430-16010
91626-60616
93319-14006
93319-15010
