CDT220L-ALMEYW (1999)
Toyota Avensis

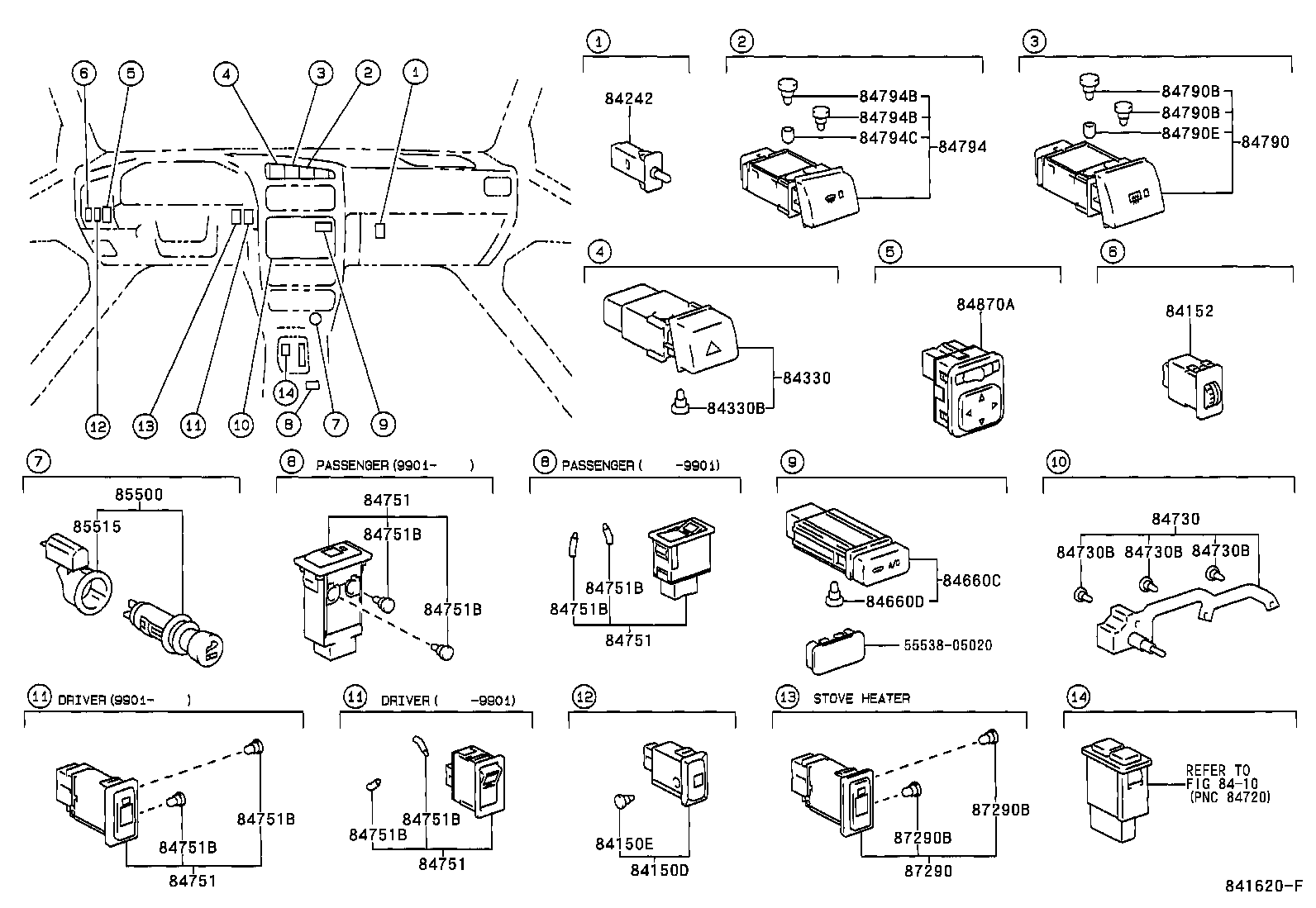

ILLUST NO. 4 OF 6(9710-0007)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD 14V 0.84W,W(CAP) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20360 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84332-20410 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20200 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
AT22#,CDT220,CT220,ST220 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-05020 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48010 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48010 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48010 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48010 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20490 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 84790-20530 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,YELLOW CAP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,YELLOW CAP |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10180 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84790-20510 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD |
1 | ||
| 84790-20540 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,YELLOW CAP |
1 | ||
| 90010-01018 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W,W/O(CAP) |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,YELLOW CAP |
1 | ||
| 90010-01018 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W,W/O(CAP) |
1 | ||
| 84794C - CAP BULB, FR WIPER DEICER SWITCH | ||||
| 84998-10180 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-20020 |
CDT220..LHD |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 84999-10310 |
CDT220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
CDT220..LHD 14V0.91W,YELLOW CAP |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 84999-10310 |
CDT220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
CDT220..LHD 14V0.91W,YELLOW CAP |
1 | ||
| Common parts | ||||
| 55538-05020 | ||||
| Linked diagrams | ||||
| 8410 | ||||

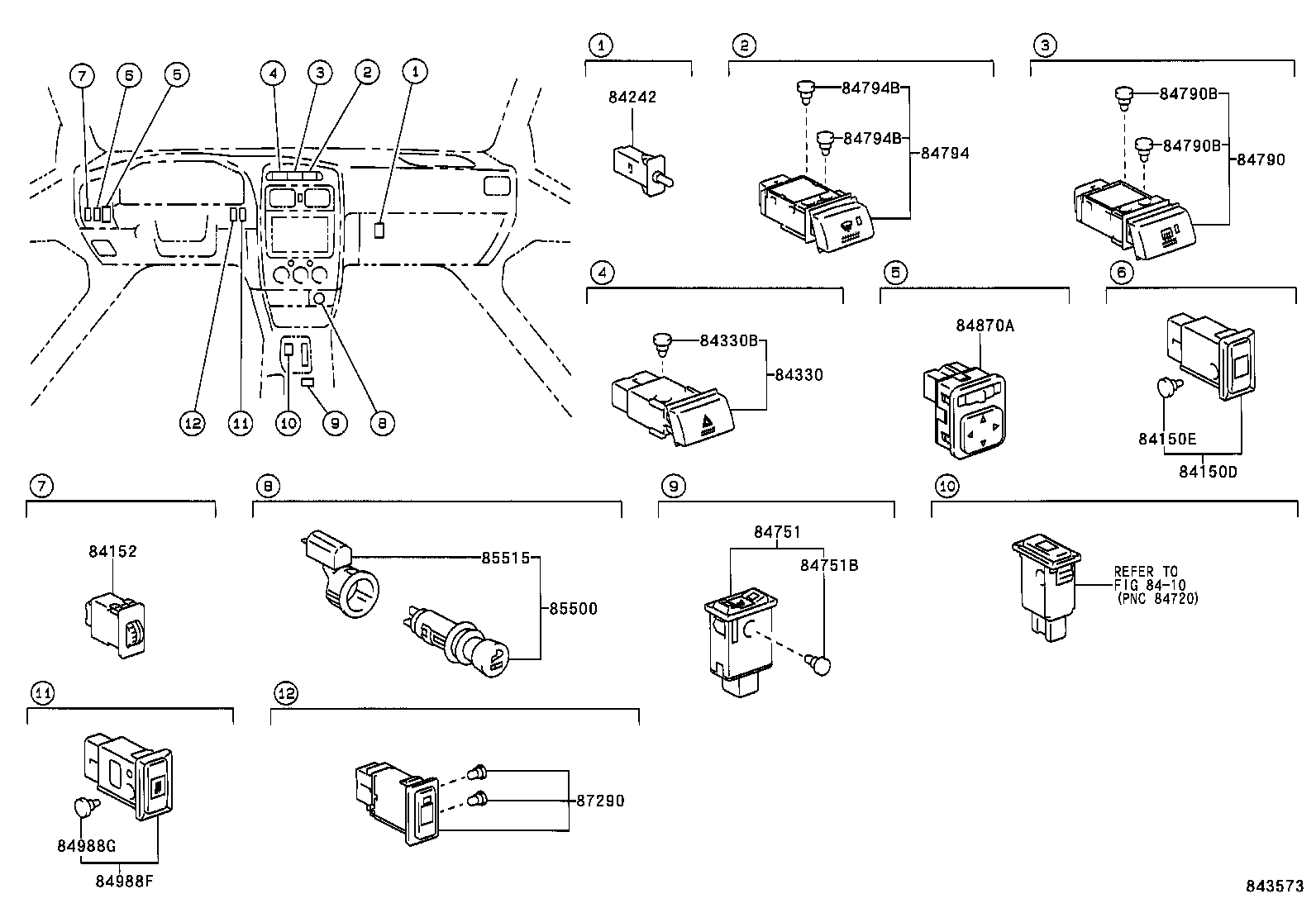

ILLUST NO. 4 OF 6(0007- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD 14V 0.84W,W(CAP) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20360 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84332-20410 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 14V 0.84W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-48010 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AZT220,CDT220,ST220,ZZT22#..LHD 12V 0.87W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20490 |
AT22#,CDT220,CT220,ST220..LHD |
1 | ||
| 84790-20530 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,YELLOW CAP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22# 14V0.91W,YELLOW CAP |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84790-20510 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD |
1 | ||
| 84790-20540 |
AZT220,CDT220,ST220,ZZT22#..LHD |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,YELLOW CAP |
1 | ||
| 90010-01018 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W,W/O(CAP) |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 90010-01039 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W |
1 | ||
| 90010-01049 |
AZT220,CDT220,ST220,ZZT22#..LHD 14V0.91W,YELLOW CAP |
1 | ||
| 90010-01018 |
CDT220..SED..SOL;CDT220..LHD..(LB,WG);AT22#,CT220,ST220..LHD 14V 0.91W,W/O(CAP) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-20020 |
CDT220..LHD |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
