CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)

Click highlighted areas on diagram

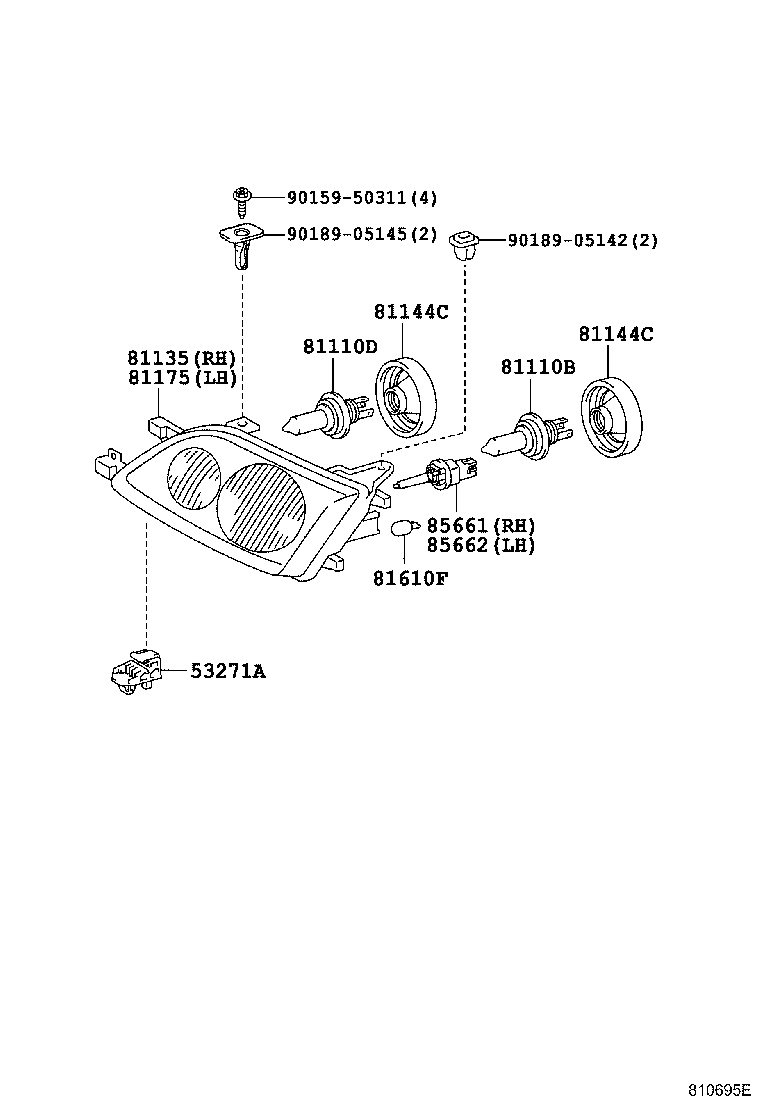

diagram 53271A 81110B 81110D 81135 81144C 81144C 81175 81610F 85661 85662 9015950311 9018905142 9018905145
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-20020

AZT220,CDT220,ST220,ZZT22#

 2
53271-12060

AT22#,CDT220,CT220,ST220

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81067

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 55W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81067

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-05100

AZT220,CDT220,ST220,ZZT22#..LHD

 1
81130-05140

AT22#,CDT220,CT220,ST220..LHD

 1
81144C - COVER, HEADLAMP SOCKET
81139-05080

AZT220,CDT220,ST220,ZZT22#

 4
81139-05120

AT22#,CDT220,CT220,ST220

 4
81144C - COVER, HEADLAMP SOCKET
81139-05080

AZT220,CDT220,ST220,ZZT22#

 4
81139-05120

AT22#,CDT220,CT220,ST220

 4
81175 - UNIT ASSY, HEADLAMP, LH
81170-05140

AT22#,CDT220,CT220,ST220..LHD

 1
81170-05100

AZT220,CDT220,ST220,ZZT22#..LHD

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-05020

AT22#,CDT220,CT220,ST220

 1
85661-05030

AZT220,CDT220,ST220,ZZT22#

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-05020

AT22#,CDT220,CT220,ST220

 1
85661-05030

AZT220,CDT220,ST220,ZZT22#

 1
Common parts
90159-50311
90189-05142
90189-05145

(0007- )

Click highlighted areas on diagram

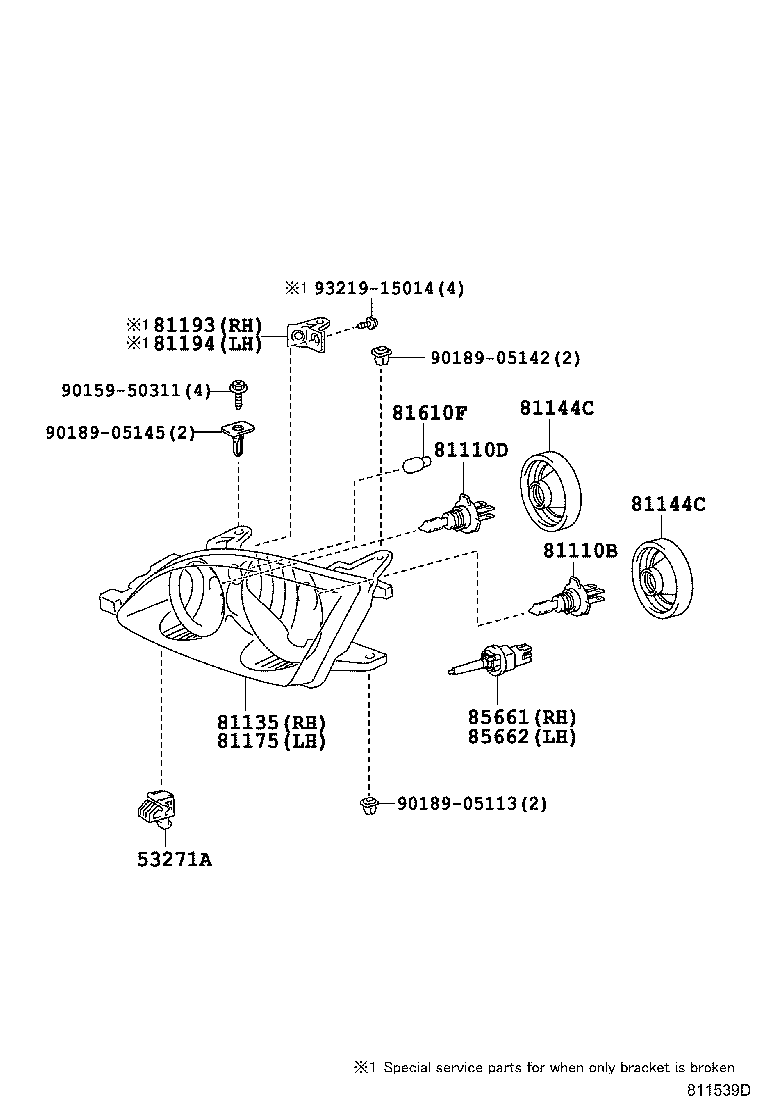

diagram 53271A 81110B 81110D 81135 81144C 81144C 81175 81193 81194 81610F 85661 85662 9015950311 9018905113 9018905142 9018905145 9321915014
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-20020

AZT220,CDT220,ST220,ZZT22#

 2
53271-12060

AT22#,CDT220,CT220,ST220

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81067

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 55W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81067

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-05100

AZT220,CDT220,ST220,ZZT22#..LHD

 1
81130-05140

AT22#,CDT220,CT220,ST220..LHD

 1
81144C - COVER, HEADLAMP SOCKET
81139-05080

AZT220,CDT220,ST220,ZZT22#

 4
81139-05120

AT22#,CDT220,CT220,ST220

 4
81144C - COVER, HEADLAMP SOCKET
81139-05080

AZT220,CDT220,ST220,ZZT22#

 4
81139-05120

AT22#,CDT220,CT220,ST220

 4
81175 - UNIT ASSY, HEADLAMP, LH
81170-05140

AT22#,CDT220,CT220,ST220..LHD

 1
81170-05100

AZT220,CDT220,ST220,ZZT22#..LHD

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-05010

AZT220,CDT220,ST220,ZZT22#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-05010

AZT220,CDT220,ST220,ZZT22#

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-05020

AT22#,CDT220,CT220,ST220

 1
85661-05030

AZT220,CDT220,ST220,ZZT22#

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-05020

AT22#,CDT220,CT220,ST220

 1
85661-05030

AZT220,CDT220,ST220,ZZT22#

 1
Common parts
90159-50311
90189-05113
90189-05142
90189-05145
93219-15014
