CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

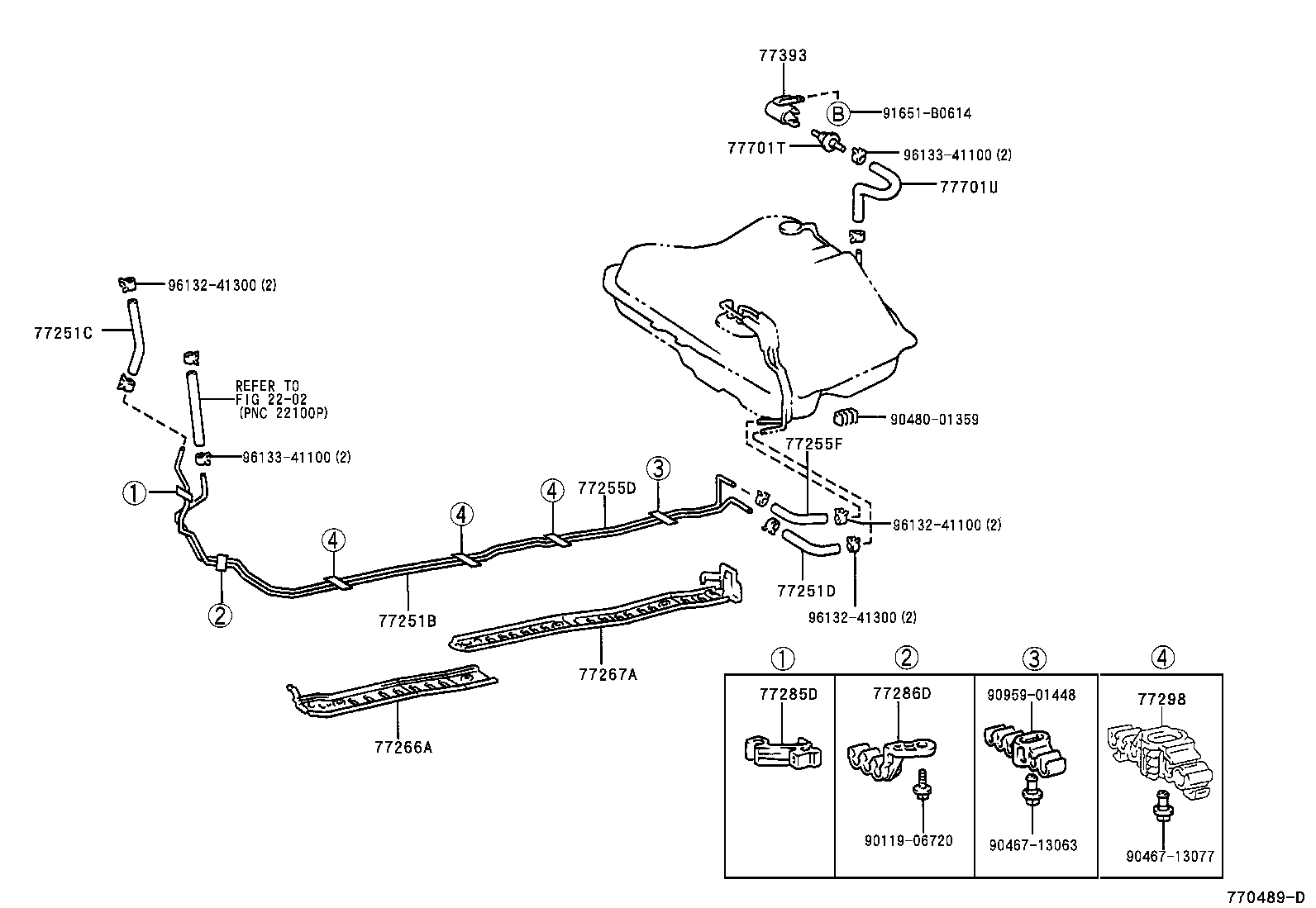

ILLUST NO. 2 OF 2(9710-0007)CDT220,CT220

Click highlighted areas on diagram

diagram 2202 77251B 77251C 77251D 77255D 77255F 77266A 77267A 77285D 77286D 77298 77393 77701T 77701U 9011906720 9046713063 9046713077 9048001359 9095901448 91651B0614 9613241100 9613241300 9613241300 9613341100 9613341100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-05170

CDT220..LHD

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-20220

CDT220

*H,L=260

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

CDT220,CT220

*H,L=150,ID=7.6

 1
77255D - TUBE, FUEL RETURN
77255-05130

CDT220..LHD

 1
77255-05110

CDT220,CT220..LHD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

CDT220,CT220

*H,L=160

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-05010

AT22#,CDT220,CT220,ST220

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-05030

CDT220

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-20120

CDT220,CT220

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-20151

AT22#,CDT220,CT220,ST220

 1
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-20090

AZT220,CDT220,ZZT22#

 2
77298-20050

AT22#,CDT220,CT220,ST220

 3
77393 - PROTECTOR, CHECK VALVE
77393-20010

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

CDT220,CT220;AT220..LHD..SED..TERRA

*H,L=220

 1
Common parts
90119-06720
90467-13063
90467-13077
90480-01359
90959-01448
91651-B0614
96132-41100
96132-41300
96133-41100
Linked diagrams
2202

ILLUST NO. 2 OF 2(0007- )CDT220

Click highlighted areas on diagram

diagram 77251B 77251C 77251D 77255D 77255F 77273A 77285D 77289A 77298 77393 77701T 77701U 9011906720 91651B0614 9613241100 9613241300 9613241300 9613241300 9613341100 9613541300
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-05170

CDT220..LHD

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-20220

CDT220

*H,L=260

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

CDT220,CT220

*H,L=150,ID=7.6

 1
77255D - TUBE, FUEL RETURN
77255-05130

CDT220..LHD

 1
77255-05110

CDT220,CT220..LHD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

CDT220,CT220

*H,L=160

 1
77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6
77273-20050

AZT220,CDT220,ZZT22#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-20120

CDT220,CT220

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-20070

AZT220,CDT220,ZZT22#

 4
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-20090

AZT220,CDT220,ZZT22#

 2
77298-20050

AT22#,CDT220,CT220,ST220

 3
77393 - PROTECTOR, CHECK VALVE
77393-20010

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

CDT220,CT220;AT220..LHD..SED..TERRA

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

CDT220,CT220;AT220..LHD..SED..TERRA

*H,L=220

 1
Common parts
90119-06720
91651-B0614
96132-41100
96132-41300
96133-41100
96135-41300
