CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)

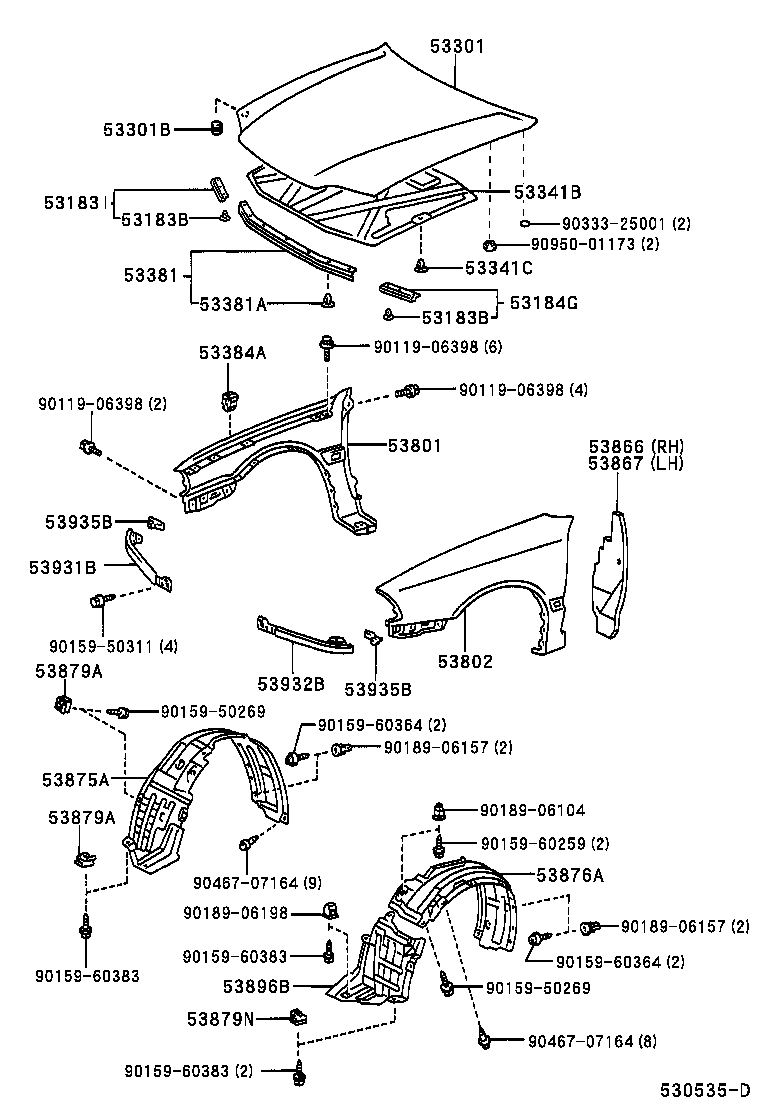

Click highlighted areas on diagram

diagram 53183B 53183B 53183I 53184G 53301 53301B 53341B 53341C 53381 53381A 53384A 53801 53802 53866 53867 53875A 53876A 53879A 53879A 53879N 53896B 53931B 53932B 53935B 53935B 9011906398 9011906398 9011906398 9015950269 9015950269 9015950311 9015960259 9015960364 9015960364 9015960383 9015960383 9015960383 9018906104 9018906157 9018906157 9018906198 9033325001 9046707164 9046707164 9095001173
Part # Description Qty Price
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08203

AZT220,CDT220,ST220,ZZT22#

 8
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08203

AZT220,CDT220,ST220,ZZT22#

 8
53183I - SEAL, HEADLAMP COVER, RH
53183-20160

AZT220,CDT220,ST220,ZZT22#

 1
53184G - SEAL, HEADLAMP COVER, LH
53184-20080

AZT220,CDT220,ST220,ZZT22#

 1
53301 - HOOD SUB-ASSY
53301-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53341B - INSULATOR, HOOD
53341-05021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 11
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46135

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 7
53384A - BUMPER, FENDER TO HOOD
53384-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53875A - LINER, FRONT FENDER, RH
53875-05020

AT22#,CDT220,CT220,ST220

 1
53875-05030

AZT220,CDT220,ST220,ZZT22#

 1
53876A - LINER, FRONT FENDER, LH
53876-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53879N - RETAINER, FRONT FENDER LINER, LH
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-05030

CDT220

 1
53896-05010

CDT220,CT220..DCR,TDEFI

 1
53931B - PANEL, FRONT END, RH
53903-20040

AT22#,CDT220,CT220,ST220

 1
53932B - PANEL, FRONT END, LH
53904-20020

AT22#,CDT220,CT220,ST220

 1
53935B - PROTECTOR, FRONT END PANEL
53935-20030

AT22#,CDT220,CT220,ST220

 2
53935B - PROTECTOR, FRONT END PANEL
53935-20030

AT22#,CDT220,CT220,ST220

 2
Common parts
90119-06398
90159-50269
90159-50311
90159-60259
90159-60364
90159-60383
90189-06104
90189-06157
90189-06198
90333-25001
90467-07164
90950-01173

(0007- )

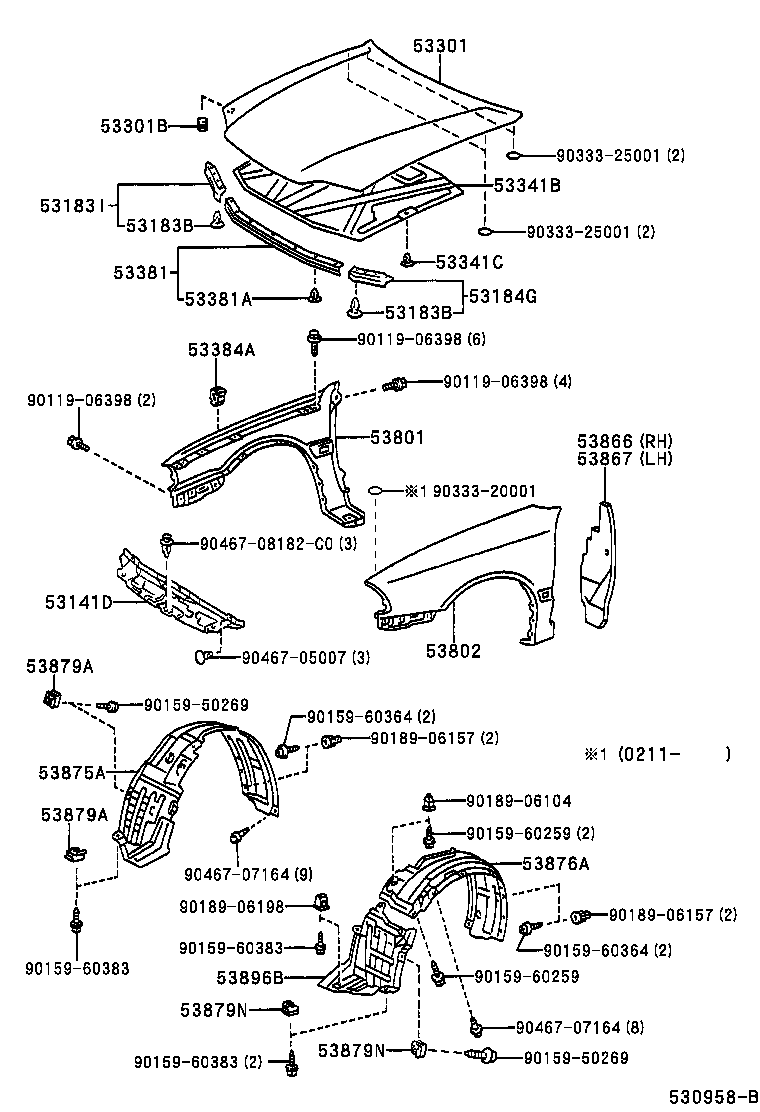

Click highlighted areas on diagram

diagram 53141D 53183B 53183B 53183I 53184G 53301 53301B 53341B 53341C 53381 53381A 53384A 53801 53802 53866 53867 53875A 53876A 53879A 53879A 53879N 53879N 53896B 9011906398 9011906398 9011906398 9015950269 9015950269 9015960259 9015960259 9015960364 9015960364 9015960383 9015960383 9015960383 9018906104 9018906157 9018906157 9018906198 9033320001 9033325001 9033325001 9046705007 9046707164 9046707164 9046708182C0
Part # Description Qty Price
53141D - COVER, RADIATOR
53141-05010

AZT220,CDT220,ST220,ZZT22#

 1
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08203

AZT220,CDT220,ST220,ZZT22#

 8
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08203

AZT220,CDT220,ST220,ZZT22#

 8
53183I - SEAL, HEADLAMP COVER, RH
53183-20160

AZT220,CDT220,ST220,ZZT22#

 1
53184G - SEAL, HEADLAMP COVER, LH
53184-20080

AZT220,CDT220,ST220,ZZT22#

 1
53301 - HOOD SUB-ASSY
53301-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53341B - INSULATOR, HOOD
53341-05021

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 11
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46135

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 7
53384A - BUMPER, FENDER TO HOOD
53384-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53875A - LINER, FRONT FENDER, RH
53875-05020

AT22#,CDT220,CT220,ST220

 1
53875-05030

AZT220,CDT220,ST220,ZZT22#

 1
53876A - LINER, FRONT FENDER, LH
53876-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53879N - RETAINER, FRONT FENDER LINER, LH
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53879N - RETAINER, FRONT FENDER LINER, LH
53879-20030

AT22#,CDT220,CT220,ST220

 2
53879-44010

AZT220,CDT220,ST220,ZZT22#

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-05030

CDT220

 1
53896-05010

CDT220,CT220..DCR,TDEFI

 1
Common parts
90119-06398
90159-50269
90159-60259
90159-60364
90159-60383
90189-06104
90189-06157
90189-06198
90333-20001
90333-25001
90467-05007
90467-07164
90467-08182C0
