CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)

Click highlighted areas on diagram

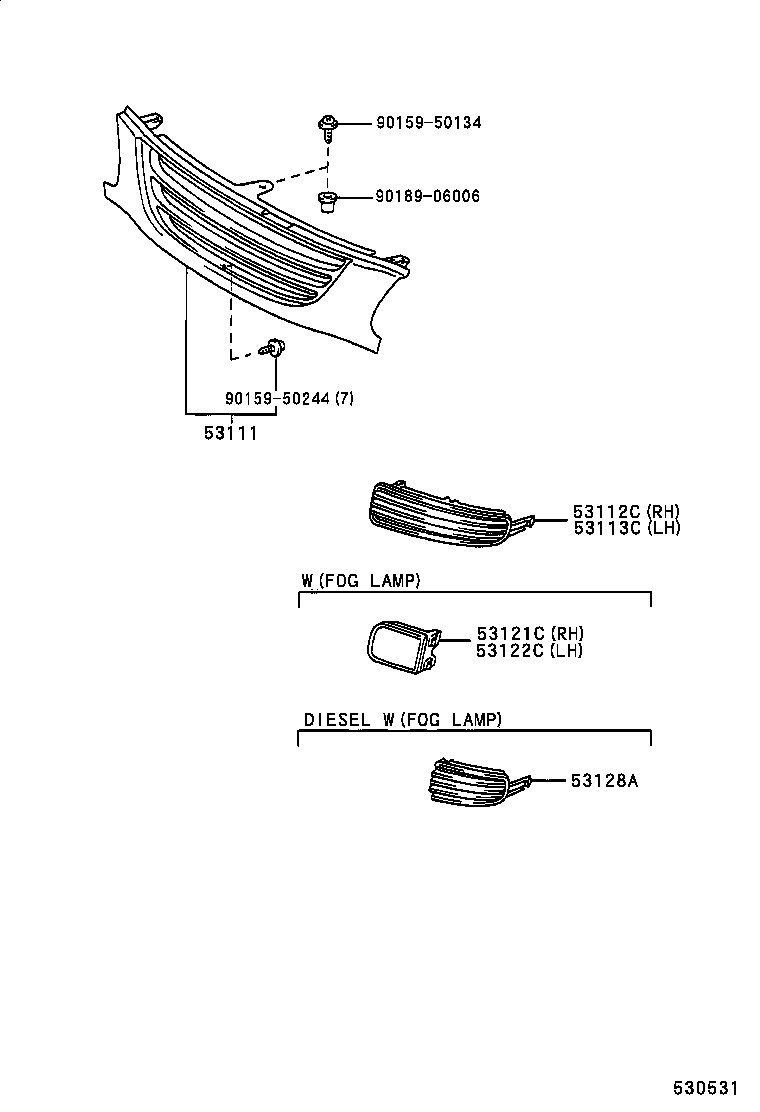

diagram 53111 53112C 53113C 53121C 53122C 53128A 9015950134 9015950244 9018906006
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-05010J3

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

DK.BLUE M.M.,8L3

 1
53100-05010J0

CDT220;AT22#,CT220,ST220..SOL

STRONG BLUE M,8B6

 1
53111-05040

AZT220,CDT220,ST220,ZZT22#

 1
53121C - PLATE, RADIATOR GRILLE FINISH, RH
53121-05010

AT22#,CDT220,CT220,ST220

 1
Common parts
90159-50134
90159-50244
90189-06006

(0007- )

Click highlighted areas on diagram

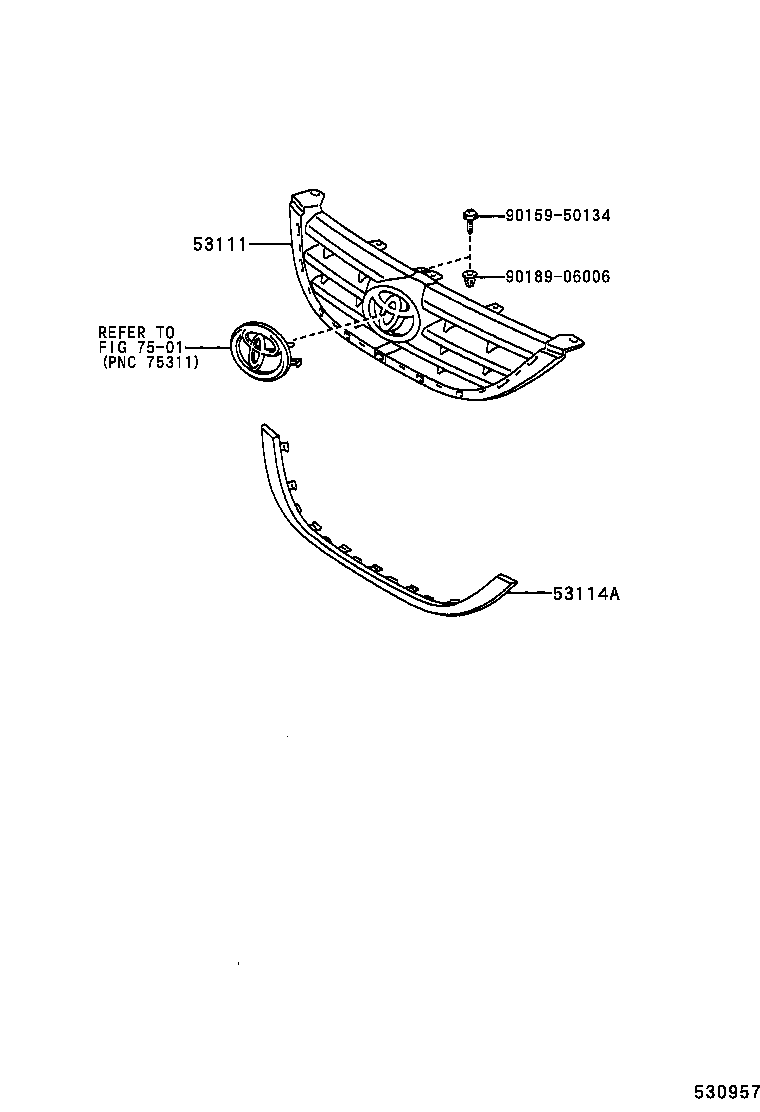

diagram 53111 53114A 7501 9015950134 9018906006
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-05010J3

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

DK.BLUE M.M.,8L3

 1
53100-05010J0

CDT220;AT22#,CT220,ST220..SOL

STRONG BLUE M,8B6

 1
53111-05040

AZT220,CDT220,ST220,ZZT22#

 1
53114A - GRILLE, RADIATOR, INNER
53114-05050

AZT220,CDT220,ST220,ZZT22#

 1
Common parts
90159-50134
90189-06006
Linked diagrams
7501
