CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

W(ALUMINIUM WHEEL)

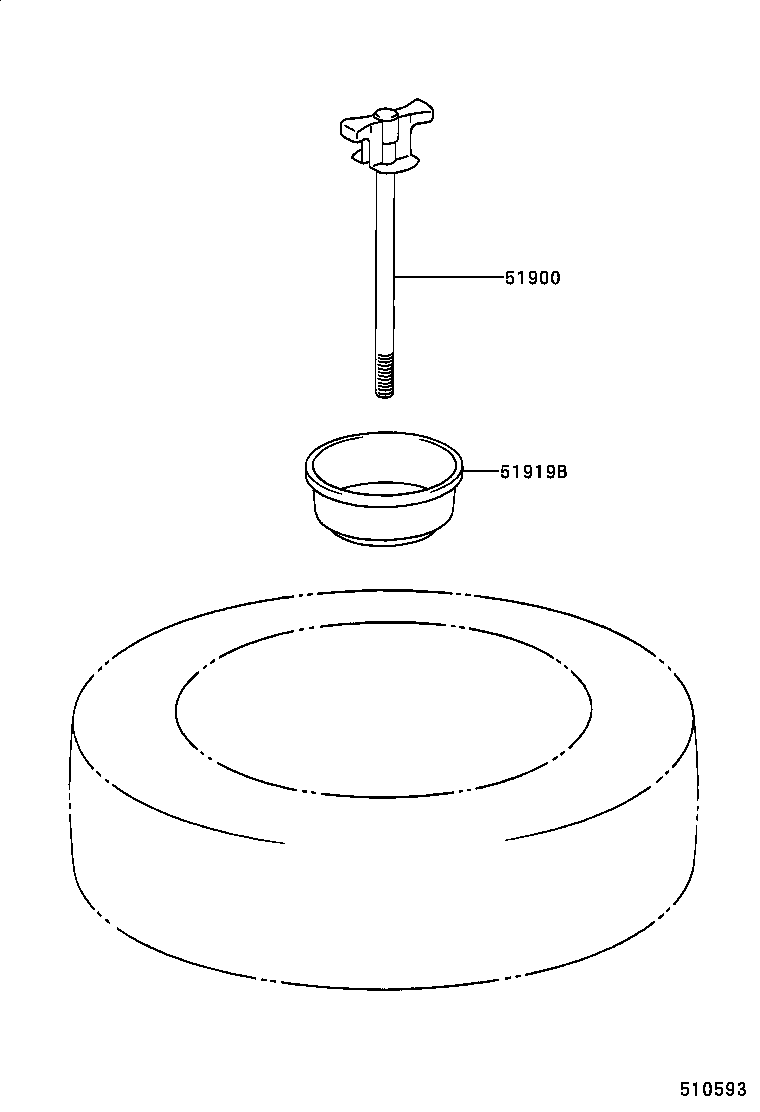

diagram 51900 51919B
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-20281

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ALUMINIUM WHEEL)

 1
51900-20281

CDT220..SOL;AT22#,CT220,ST220..EFI,TDEFI

W(ALUMINIUM WHEEL)

 1
51900-20270

AT22#,CDT220,CT220,ST220

 1
51900-20270

CDT220..LB,SED;CDT220..WG..SOL;AZT220,ST220,ZZT22#

 1
51919B - SPACER, SPARE WHEEL CARRIER
51919-21020

AT22#,CDT220,CT220,ST220..SOL

W(ALUMINIUM WHEEL)

 1
51919-32030

AT22#,CDT220,CT220,ST220

 1
51919-21020

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

W(ALUMINIUM WHEEL)

 1
51919-32030

CDT220..LB,SED;CDT220..WG..SOL;AZT220,ST220,ZZT22#

 1
