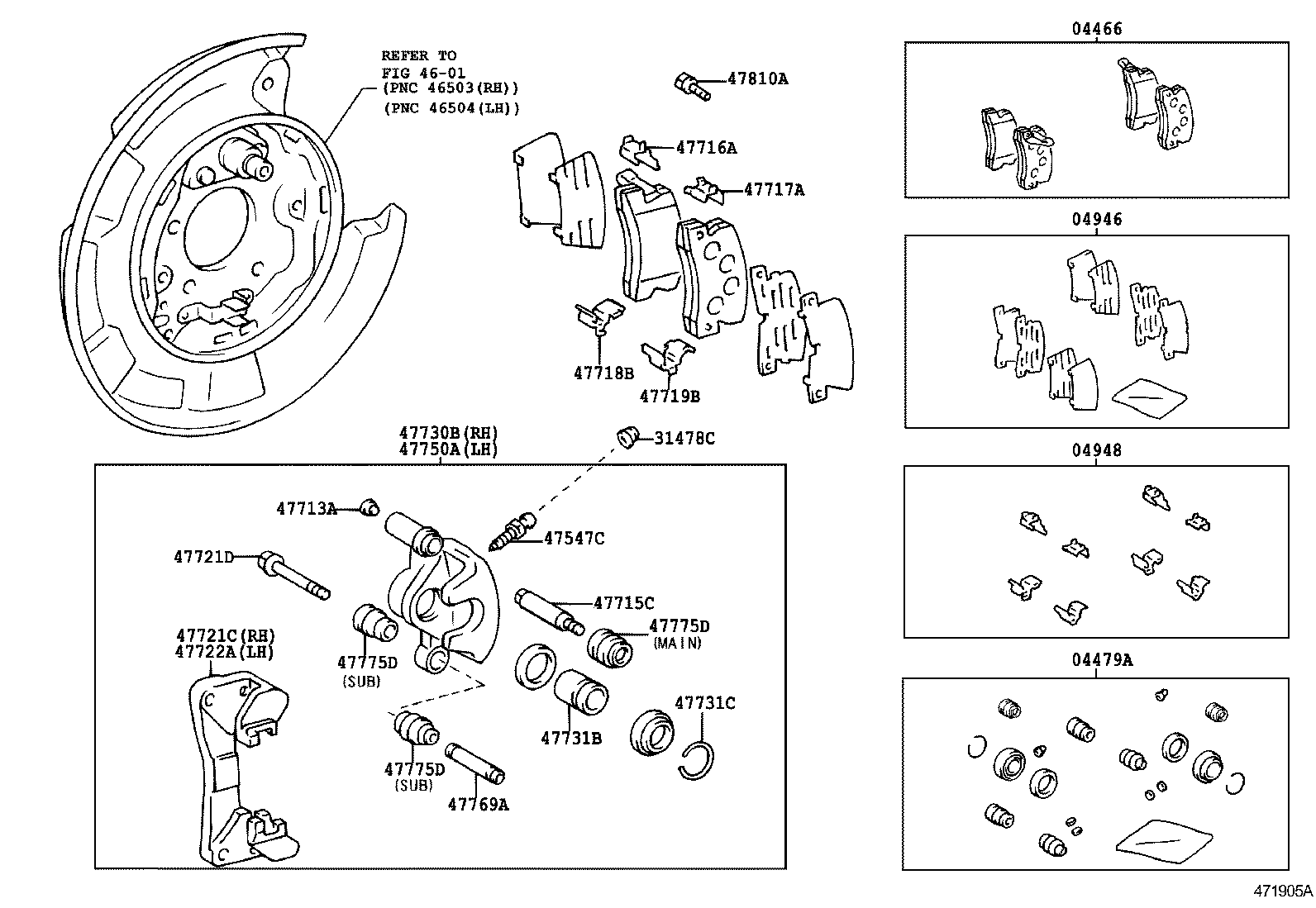

CDT220L-ALMEYW (1999)
Toyota Avensis
(0001-0107)D4,DCR,EFI,TDEFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02010 |
AZT220,CDT220,ST220,ZZT22# MARK AK PA511 |
1 | ||
| 04466-20130 |
AZT220,CDT220,ST220,ZZT22# MARK AK PA511 |
1 | ||
| 04466-20100 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI MARK AK PA511 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 04479-02070 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-32070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 04948-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47547-02090 |
AZT220,CDT220,ST220,ZZT22# |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-33070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-09100 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47721-20321 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08A98 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI *8-1.25PX68-30 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47721-09100 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47730-33061 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30120 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47750-33061 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-16020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI SUB PIN SIDE |
4 | ||
| 47775-32020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI MAIN PIN SIDE |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-16020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI SUB PIN SIDE |
4 | ||
| 47775-32020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI MAIN PIN SIDE |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-16020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI SUB PIN SIDE |
4 | ||
| 47775-32020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI MAIN PIN SIDE |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||

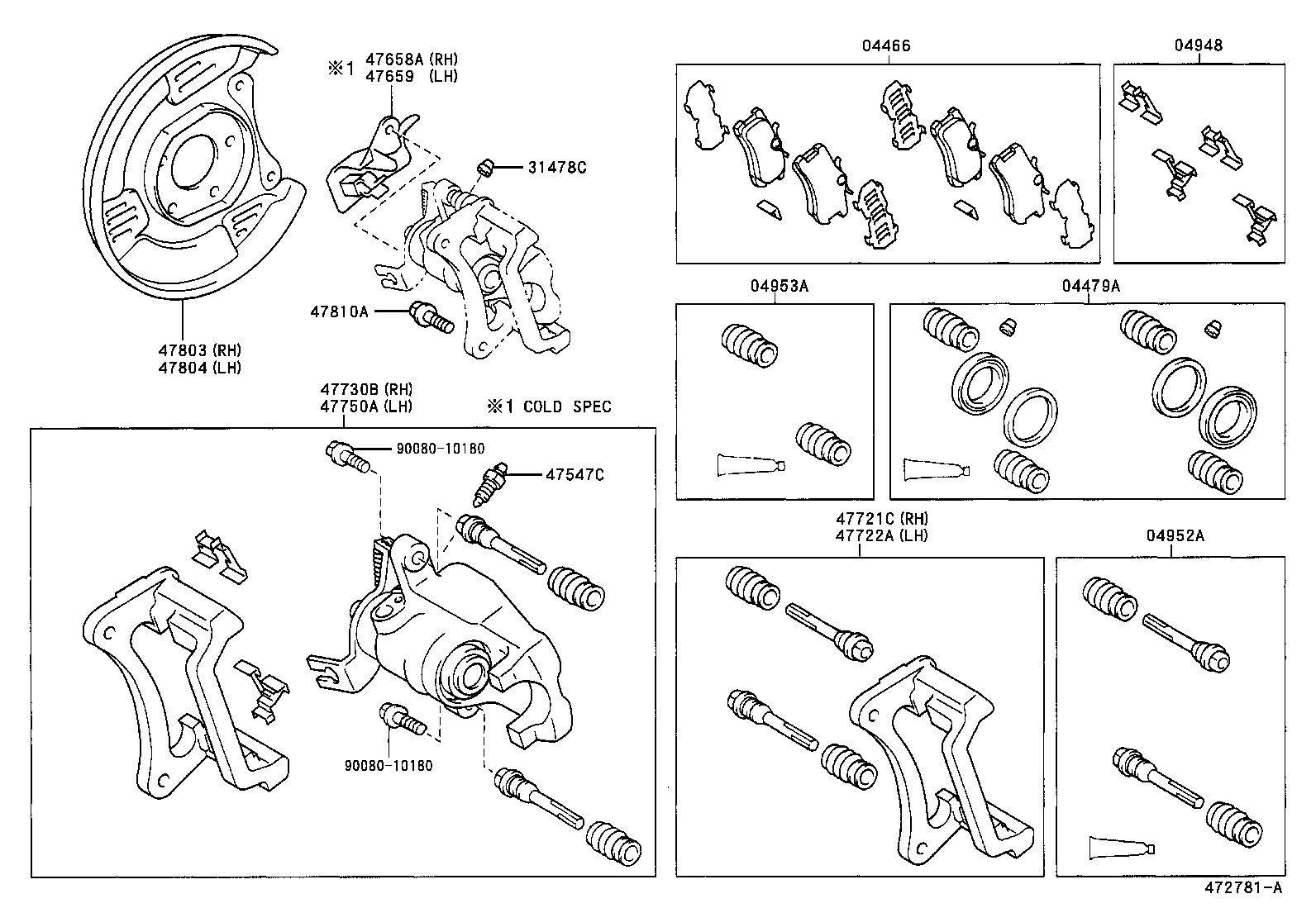

(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02010 |
AZT220,CDT220,ST220,ZZT22# MARK AK PA511 |
1 | ||
| 04466-20130 |
AZT220,CDT220,ST220,ZZT22# MARK AK PA511 |
1 | ||
| 04466-20100 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI MARK AK PA511 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 04479-02070 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 04948-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02020 |
AZT220,CDT220,ST220,ZZT22# |
2 | ||
| 04953A - BOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN | ||||
| 04953-02020 |
AZT220,CDT220,ST220,ZZT22# |
2 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47547-02090 |
AZT220,CDT220,ST220,ZZT22# |
2 | ||
| 47658A - PROTECTOR, PARKING BRAKE LEVER, RH | ||||
| 47658-20010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47659 - PROTECTOR, PARKING BRAKE LEVER, LH | ||||
| 47659-20010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-09100 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47721-20321 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47721-09100 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47730-33061 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-05040 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47750-33061 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-05010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-05010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| Common parts | ||||
| 90080-10180 | ||||
