CDT220L-ALMEYW (1999)
Toyota Avensis
Production
Aug 1999
-
Jan 2003
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )CDT220..LHD

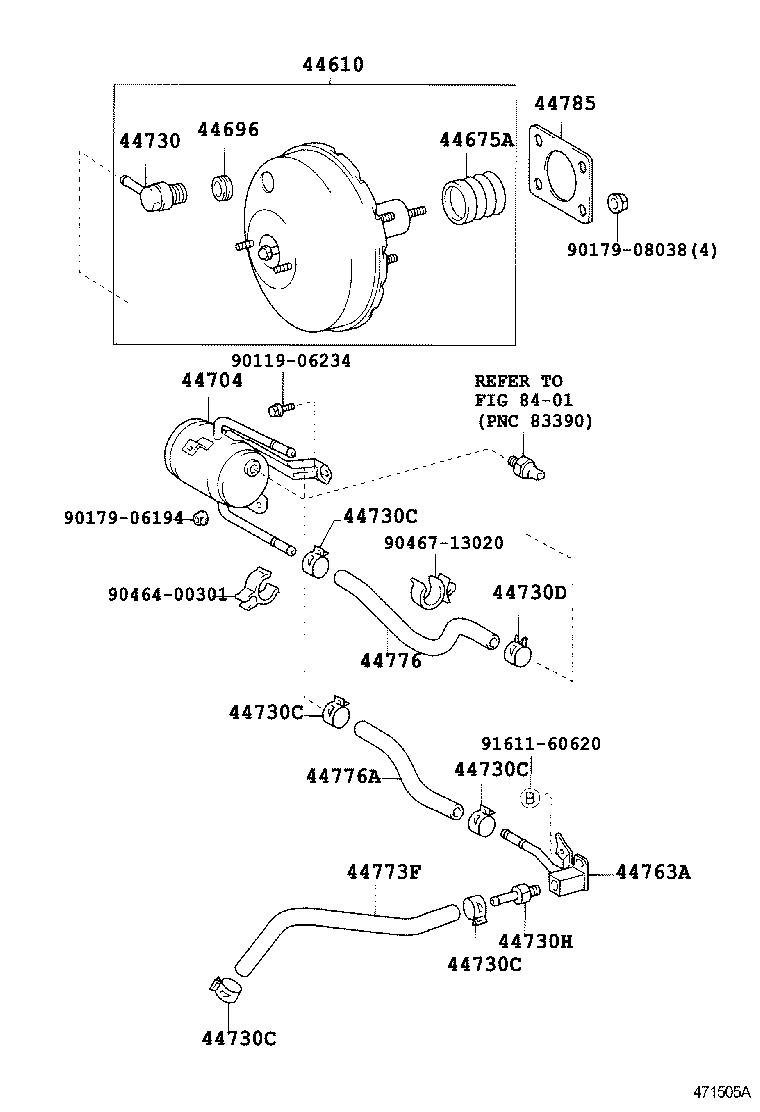

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44675A - BOOT, BRAKE BOOSTER | ||||
| 44675-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90069-20004 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-20160 |
CDT220..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CDT220 |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CDT220 |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CDT220 |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CDT220 |
5 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
CDT220 |
5 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16014 |
AT22#..LHD;CDT220,CT220,ST220 |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60050 |
CDT220,CT220 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-20210 |
CDT220 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-2B150 |
CDT220 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-20150 |
CDT220..LHD |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-20160 |
CDT220..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90179-06194 | ||||
| 90179-08038 | ||||
| 90464-00301 | ||||
| 90467-13020 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
