CDT220L-ALMEYW (1999)
Toyota Avensis
ILLUST NO. 1 OF 2(9710-0107)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-05040C0 |
AT22#,CDT220,CT220,ST220..LHD BLACK,TRIM1#,6# |
1 | ||
| 46201-05060C0 |
AZT220,CDT220,ST220,ZZT22#..LHD BLACK,TRIM1#,6# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20480 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46420-20520 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46420-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46420-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20480 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46420-20520 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46420-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46420-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46451-20060 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46451-20070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20640 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46430-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46430-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46430-20600 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20640 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46430-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46430-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46430-20600 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90179-06058 | ||||
| 90179-06164 | ||||
| 90179-06242 | ||||
| 91651-40825 | ||||
| 94180-40600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

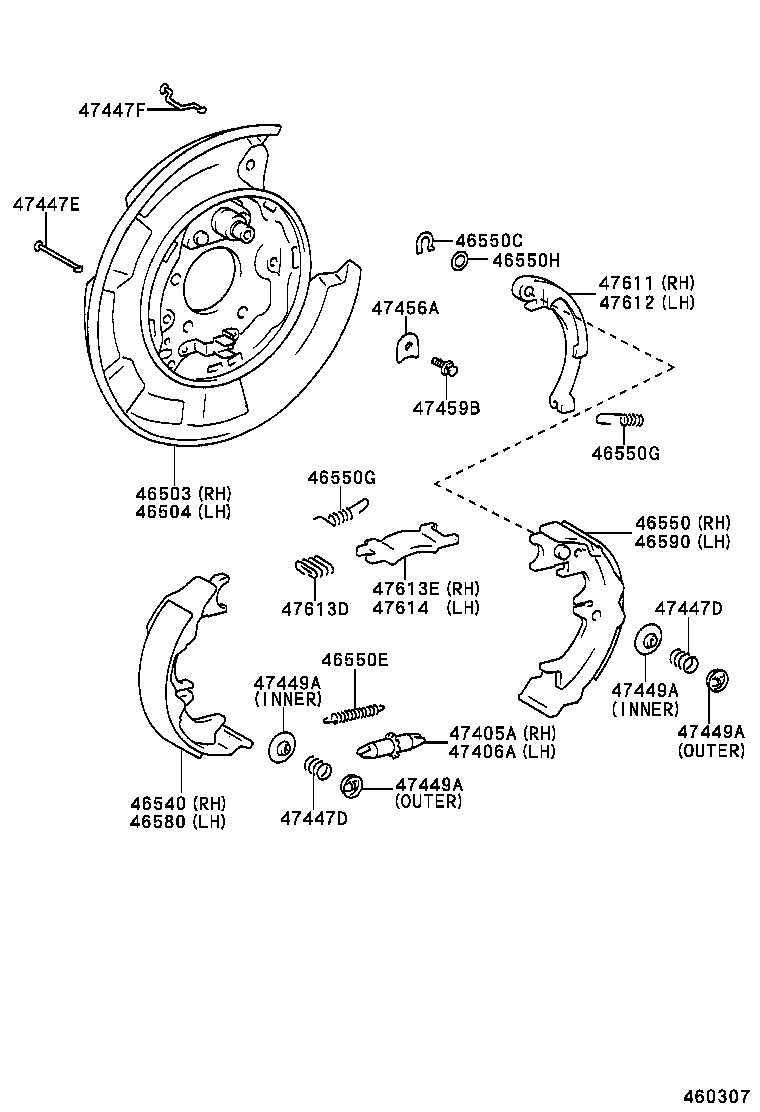

ILLUST NO. 2 OF 2(0001-0107)D4,DCR,EFI,TDEFI
W(REAR DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20060 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI |
1 | ||
| 46540-20070 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20060 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI |
1 | ||
| 46550-33020 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI T=0.3 |
1 | ||
| 90564-09185 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI T=0.6 |
1 | ||
| 90564-09186 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI T=0.9 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20060 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI |
1 | ||
| 46540-20070 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-33020 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 46590-20060 |
AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI OUTER |
4 | ||
| 47449-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI OUTER |
4 | ||
| 47449-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI OUTER |
4 | ||
| 47449-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI OUTER |
4 | ||
| 47449-32010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI INNER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI |
1 | ||
(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-05040C0 |
AT22#,CDT220,CT220,ST220..LHD BLACK,TRIM1#,6# |
1 | ||
| 46201-05060C0 |
AZT220,CDT220,ST220,ZZT22#..LHD BLACK,TRIM1#,6# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20480 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46420-20520 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46420-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46420-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20480 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46420-20520 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46420-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46420-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-20080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08040 |
AZT220,CDT220,ST220,ZZT22# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46451-20060 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46451-20070 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20640 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46430-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46430-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46430-20600 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20640 |
AZT220,CDT220,ST220,ZZT22# W(REAR DISC BRAKE) |
1 | ||
| 46430-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 46430-05020 |
AZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM |
1 | ||
| 46430-20600 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI W(REAR DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90179-06058 | ||||
| 90179-06164 | ||||
| 90179-06242 | ||||
| 90468-14017 | ||||
| 91621-40614 | ||||
| 91651-40825 | ||||
| 94185-60600 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 8401 | ||||
