CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

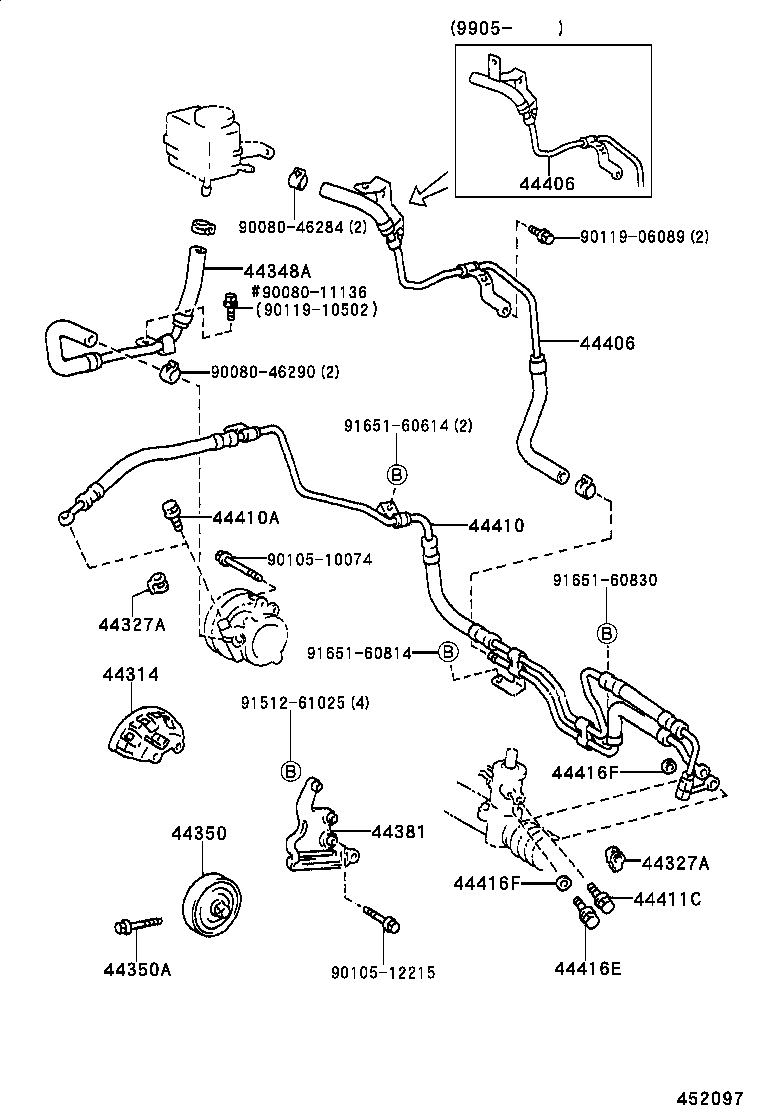

(9710-0007)CDT220,CT220..LHD

Click highlighted areas on diagram

diagram 44314 44327A 44327A 44348A 44350 44350A 44381 44406 44406 44410 44410A 44411C 44416E 44416F 44416F 9008011136 9008046284 9008046290 9010510074 9010512215 9011906089 9011910502 9151261025 9165160614 9165160814 9165160830
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CDT220,CT220

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT22#,AZT220,CDT220,CT220,ST220..LHD

 2
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT22#,AZT220,CDT220,CT220,ST220..LHD

 2
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-05040

CDT220

 1
44348-05070

CDT220

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12052

CDT220,CT220

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CDT220

 1
90109-08253

CDT220

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20050

CDT220

 1
44381-20051

CDT220

 1
44381-20040

CDT220

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-05230

CDT220..LHD

 1
44410-05111

CDT220..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT22#,CDT220,CT220,ST220

 1
96341-41603

AT22#,AZT220,CDT220,CT220,ST220

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-11703

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
90401-17005

AZT220,CDT220,ST220,ZZT22#..LHD

 1
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
Common parts
90080-11136
90080-46284
90080-46290
90105-10074
90105-12215
90119-06089
90119-10502
91512-61025
91651-60614
91651-60814
91651-60830

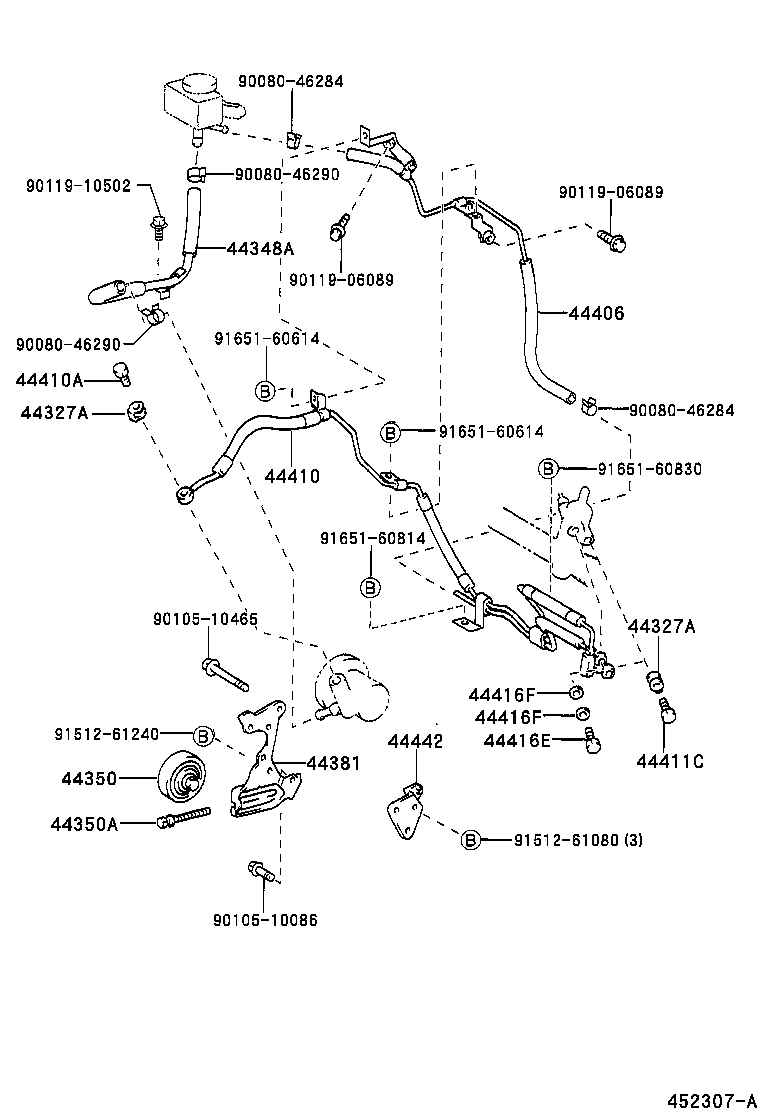

(0007- )CDT220..LHD

Click highlighted areas on diagram

diagram 44327A 44327A 44348A 44350 44350A 44381 44406 44410 44410A 44411C 44416E 44416F 44416F 44442 9008046284 9008046284 9008046290 9008046290 9010510086 9010510465 9011906089 9011906089 9011910502 9151261080 9151261240 9165160614 9165160614 9165160814 9165160830
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT22#,AZT220,CDT220,CT220,ST220..LHD

 2
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT22#,AZT220,CDT220,CT220,ST220..LHD

 2
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-05040

CDT220

 1
44348-05070

CDT220

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12052

CDT220,CT220

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CDT220

 1
90109-08253

CDT220

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20050

CDT220

 1
44381-20051

CDT220

 1
44381-20040

CDT220

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-05230

CDT220..LHD

 1
44410-05111

CDT220..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT22#,CDT220,CT220,ST220

 1
96341-41603

AT22#,AZT220,CDT220,CT220,ST220

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-11703

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
90401-17005

AZT220,CDT220,ST220,ZZT22#..LHD

 1
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
44442 - BRACKET, PUMP, REAR
44442-20041

CDT220

 1
44442-20040

CDT220

 1
Common parts
90080-46284
90080-46290
90105-10086
90105-10465
90119-06089
90119-10502
91512-61080
91512-61240
91651-60614
91651-60814
91651-60830
