CDT220L-ALMEYW (1999)
Toyota Avensis

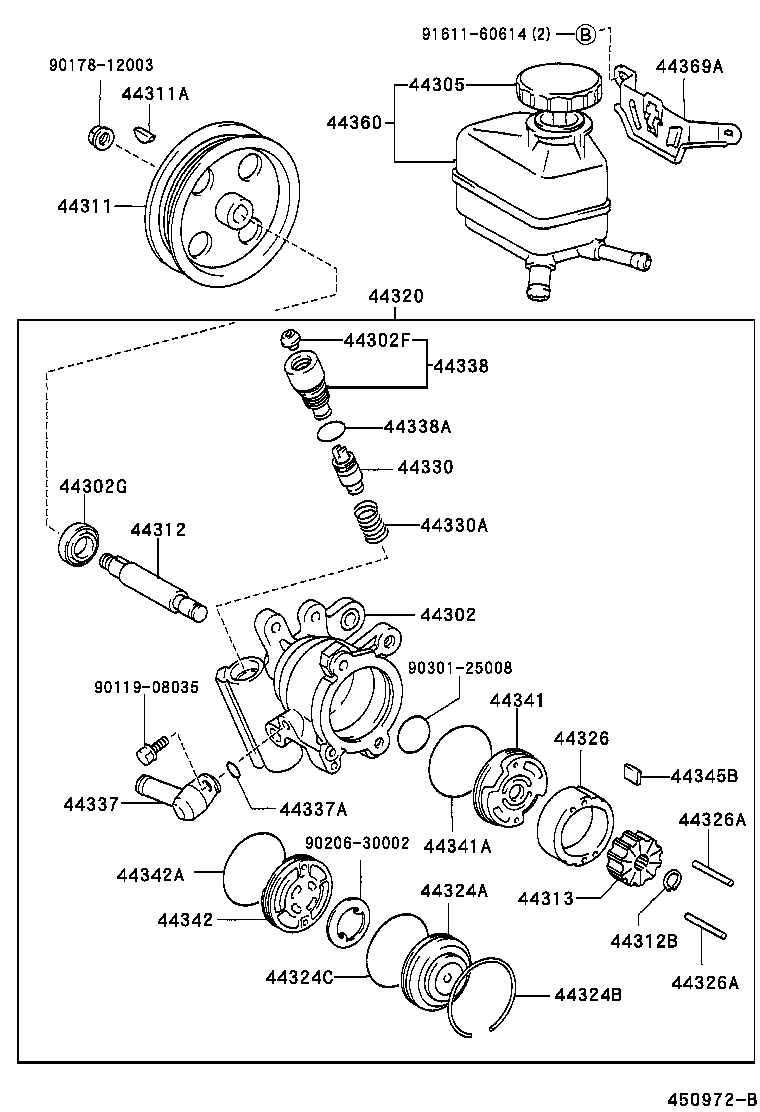

(9710-0007)CDT220,CT220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-20110 |
CDT220,CT220 |
1 | ||
| 44302-05030 |
CDT220 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-06006 |
CDT220,CT220 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
CDT220,CT220 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12030 |
CDT220,CT220 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CDT220,CT220 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
CDT220,CT220 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
CDT220,CT220 |
1 | ||
| 90080-52097 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
CDT220,CT220 MARK 3 |
1 | ||
| 44313-22040 |
CDT220,CT220 NO MARK |
1 | ||
| 44313-22060 |
CDT220,CT220 MARK 2 |
1 | ||
| 44313-22080 |
CDT220,CT220 MARK 4 |
1 | ||
| 44313-02150 |
AZT220,CDT220,ZZT22# MARK 4 |
1 | ||
| 44313-02120 |
AZT220,CDT220,ZZT22# MARK 1 |
1 | ||
| 44313-02130 |
AZT220,CDT220,ZZT22# MARK 2 |
1 | ||
| 44313-02110 |
AZT220,CDT220,ZZT22# MARK 0 |
1 | ||
| 44313-02140 |
AZT220,CDT220,ZZT22# MARK 3 |
1 | ||
| 44313-22050 |
CDT220,CT220 MARK 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20570 |
CDT220,CT220 |
1 | ||
| 44310-05080 |
CDT220 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-20050 |
CDT220,CT220 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
CDT220,CT220 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90080-30057 |
AZT220,CDT220,ZZT22# |
1 | ||
| 90301-53006 |
CDT220,CT220 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
CDT220,CT220 NO MARK |
1 | ||
| 44325-02240 |
AZT220,CDT220,ZZT22# MARK 3 |
1 | ||
| 44325-02210 |
AZT220,CDT220,ZZT22# MARK 0 |
1 | ||
| 44325-02230 |
AZT220,CDT220,ZZT22# MARK 2 |
1 | ||
| 44325-12130 |
CDT220,CT220 MARK 2 |
1 | ||
| 44325-12140 |
CDT220,CT220 MARK 3 |
1 | ||
| 44325-12150 |
CDT220,CT220 MARK 4 |
1 | ||
| 44325-12120 |
CDT220,CT220 MARK 1 |
1 | ||
| 44325-02250 |
AZT220,CDT220,ZZT22# MARK 4 |
1 | ||
| 44325-02220 |
AZT220,CDT220,ZZT22# MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CDT220,CT220 L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CDT220,CT220 L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
CDT220,CT220 L=28,OD=4.0 |
1 | ||
| 90250-04049 |
CDT220,CT220 L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26190 |
CDT220,CT220 MARK A |
1 | ||
| 44330-26200 |
CDT220,CT220 MARK B |
1 | ||
| 44330-26230 |
CDT220,CT220 MARK E |
1 | ||
| 44330-26210 |
CDT220,CT220 MARK C |
1 | ||
| 44330-26240 |
CDT220,CT220 MARK F |
1 | ||
| 44330-26220 |
CDT220,CT220 MARK D |
1 | ||
| 44330-05070 |
AZT220,CDT220 MARK A |
1 | ||
| 44330-05120 |
AZT220,CDT220 MARK F |
1 | ||
| 44330-05100 |
AZT220,CDT220 MARK D |
1 | ||
| 44330-05110 |
AZT220,CDT220 MARK E |
1 | ||
| 44330-05090 |
AZT220,CDT220 MARK C |
1 | ||
| 44330-05080 |
AZT220,CDT220 MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50261 |
AZT220,CDT220,ZZT22# |
1 | ||
| 90501-12103 |
CDT220,CT220 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12010 |
CDT220,CT220 |
1 | ||
| 44337-05030 |
CDT220 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
CDT220,CT220 |
1 | ||
| 90080-30059 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-05010 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44308-20100 |
CDT220,CT220 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
CDT220,CT220 ID=19.2,OD=22.3 |
1 | ||
| 90080-30056 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-02011 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44341-20010 |
CDT220,CT220 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
CDT220,CT220 |
1 | ||
| 90080-30055 |
AZT220,CDT220,ZZT22# INNER |
1 | ||
| 90080-30058 |
AZT220,CDT220,ZZT22# OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-20030 |
CDT220,CT220 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53004 |
CDT220,CT220 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
CDT220,CT220 L=14.997 |
10 | ||
| 44345-02130 |
AZT220,CDT220,ZZT22# MARK 2 |
10 | ||
| 44345-12020 |
CDT220,CT220 L=14.995 |
10 | ||
| 44345-02140 |
AZT220,CDT220,ZZT22# MARK 3 |
10 | ||
| 44345-12040 |
CDT220,CT220 L=14.991 |
10 | ||
| 44345-02150 |
AZT220,CDT220,ZZT22# MARK 4 |
10 | ||
| 44345-12030 |
CDT220,CT220 L=14.993 |
10 | ||
| 44345-12050 |
CDT220,CT220 L=14.989 |
10 | ||
| 44345-02120 |
AZT220,CDT220,ZZT22# MARK 1 |
10 | ||
| 44345-02110 |
AZT220,CDT220,ZZT22# MARK 0 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20160 |
CDT220,CT220 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20020 |
AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-30002 | ||||
| 90301-25008 | ||||
| 91611-60614 | ||||

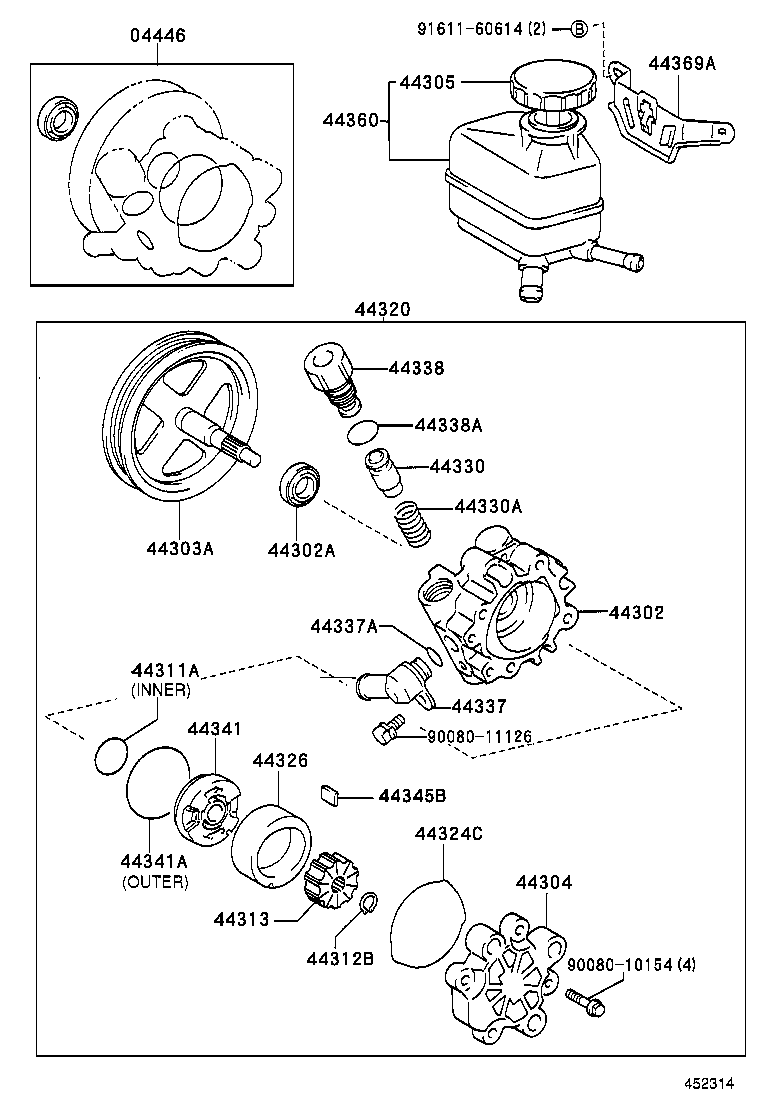

(0007- )CDT220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-02050 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-20110 |
CDT220,CT220 |
1 | ||
| 44302-05030 |
CDT220 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90080-31063 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-05020 |
CDT220 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-05010 |
CDT220 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
CDT220,CT220 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
CDT220,CT220 |
1 | ||
| 90080-52097 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
CDT220,CT220 MARK 3 |
1 | ||
| 44313-22040 |
CDT220,CT220 NO MARK |
1 | ||
| 44313-22060 |
CDT220,CT220 MARK 2 |
1 | ||
| 44313-22080 |
CDT220,CT220 MARK 4 |
1 | ||
| 44313-02150 |
AZT220,CDT220,ZZT22# MARK 4 |
1 | ||
| 44313-02120 |
AZT220,CDT220,ZZT22# MARK 1 |
1 | ||
| 44313-02130 |
AZT220,CDT220,ZZT22# MARK 2 |
1 | ||
| 44313-02110 |
AZT220,CDT220,ZZT22# MARK 0 |
1 | ||
| 44313-02140 |
AZT220,CDT220,ZZT22# MARK 3 |
1 | ||
| 44313-22050 |
CDT220,CT220 MARK 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-20570 |
CDT220,CT220 |
1 | ||
| 44310-05080 |
CDT220 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90080-30057 |
AZT220,CDT220,ZZT22# |
1 | ||
| 90301-53006 |
CDT220,CT220 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
CDT220,CT220 NO MARK |
1 | ||
| 44325-02240 |
AZT220,CDT220,ZZT22# MARK 3 |
1 | ||
| 44325-02210 |
AZT220,CDT220,ZZT22# MARK 0 |
1 | ||
| 44325-02230 |
AZT220,CDT220,ZZT22# MARK 2 |
1 | ||
| 44325-12130 |
CDT220,CT220 MARK 2 |
1 | ||
| 44325-12140 |
CDT220,CT220 MARK 3 |
1 | ||
| 44325-12150 |
CDT220,CT220 MARK 4 |
1 | ||
| 44325-12120 |
CDT220,CT220 MARK 1 |
1 | ||
| 44325-02250 |
AZT220,CDT220,ZZT22# MARK 4 |
1 | ||
| 44325-02220 |
AZT220,CDT220,ZZT22# MARK 1 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26190 |
CDT220,CT220 MARK A |
1 | ||
| 44330-26200 |
CDT220,CT220 MARK B |
1 | ||
| 44330-26230 |
CDT220,CT220 MARK E |
1 | ||
| 44330-26210 |
CDT220,CT220 MARK C |
1 | ||
| 44330-26240 |
CDT220,CT220 MARK F |
1 | ||
| 44330-26220 |
CDT220,CT220 MARK D |
1 | ||
| 44330-05070 |
AZT220,CDT220 MARK A |
1 | ||
| 44330-05120 |
AZT220,CDT220 MARK F |
1 | ||
| 44330-05100 |
AZT220,CDT220 MARK D |
1 | ||
| 44330-05110 |
AZT220,CDT220 MARK E |
1 | ||
| 44330-05090 |
AZT220,CDT220 MARK C |
1 | ||
| 44330-05080 |
AZT220,CDT220 MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50261 |
AZT220,CDT220,ZZT22# |
1 | ||
| 90501-12103 |
CDT220,CT220 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12010 |
CDT220,CT220 |
1 | ||
| 44337-05030 |
CDT220 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
CDT220,CT220 |
1 | ||
| 90080-30059 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-05010 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44308-20100 |
CDT220,CT220 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
CDT220,CT220 ID=19.2,OD=22.3 |
1 | ||
| 90080-30056 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-02011 |
AZT220,CDT220,ZZT22# |
1 | ||
| 44341-20010 |
CDT220,CT220 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
CDT220,CT220 |
1 | ||
| 90080-30055 |
AZT220,CDT220,ZZT22# INNER |
1 | ||
| 90080-30058 |
AZT220,CDT220,ZZT22# OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
CDT220,CT220 L=14.997 |
10 | ||
| 44345-02130 |
AZT220,CDT220,ZZT22# MARK 2 |
10 | ||
| 44345-12020 |
CDT220,CT220 L=14.995 |
10 | ||
| 44345-02140 |
AZT220,CDT220,ZZT22# MARK 3 |
10 | ||
| 44345-12040 |
CDT220,CT220 L=14.991 |
10 | ||
| 44345-02150 |
AZT220,CDT220,ZZT22# MARK 4 |
10 | ||
| 44345-12030 |
CDT220,CT220 L=14.993 |
10 | ||
| 44345-12050 |
CDT220,CT220 L=14.989 |
10 | ||
| 44345-02120 |
AZT220,CDT220,ZZT22# MARK 1 |
10 | ||
| 44345-02110 |
AZT220,CDT220,ZZT22# MARK 0 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20160 |
CDT220,CT220 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20020 |
AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90080-10154 | ||||
| 90080-11126 | ||||
| 91611-60614 | ||||
