CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)CDT220,CT220,ST220..MTM ; (0007- )AZT220,CDT220,ST220..MTM

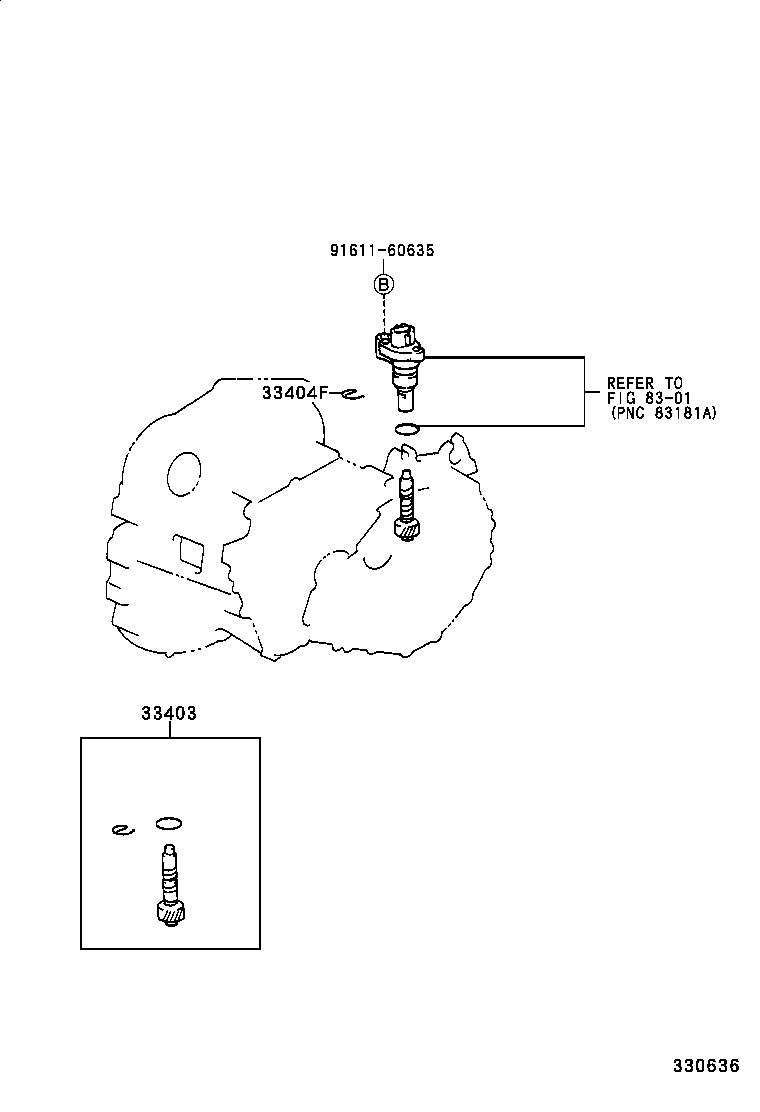

Click highlighted areas on diagram

S50,S54,S55,E251,E351

diagram 33403 33404F 8301 9161160635
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29555

CDT220

N=27,MARK 27:32

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT22#,AZT220,CDT220,CT220,ST220..MTM

 1
Common parts
91611-60635
Linked diagrams
8301
