CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)CDT220,CT220,ST220..MTM ; (0007- )CDT220,ZZT22#..MTM

Click highlighted areas on diagram

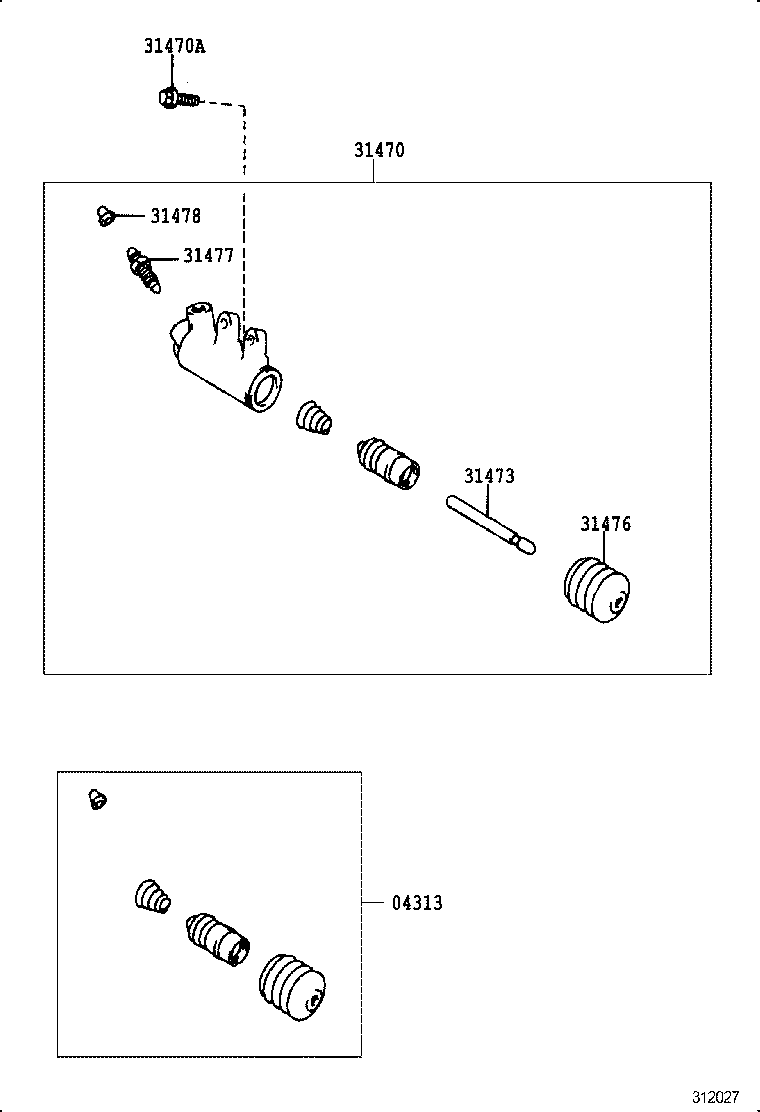

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-17010

AZT220,CDT220,CT220..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-32032

CDT220,CT220

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

AT22#,CDT220,ZZT22#..MTM

*8-1.25PX22-17.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

CDT220,CT220,ST220..MTM

 1
31473-22010

AZT220,CDT220,ST220..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
